Black NBR Hydraulic Cylinder Wiper Seal Elastomer Material
product detail
Product Details
Name:
Hydraulic Cylinder Wiper Seal
Material:
NBR
Temperature (max) °C:
-30/+105
Sliding Speed (max)- M/s:
1.0
Advantages:
Thin Oil Film / Easy Installation
Payment & Shipping Terms
Minimum Order Quantity:
100
Packaging Details:
Customizable packaging
Delivery Time:
15
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs /months

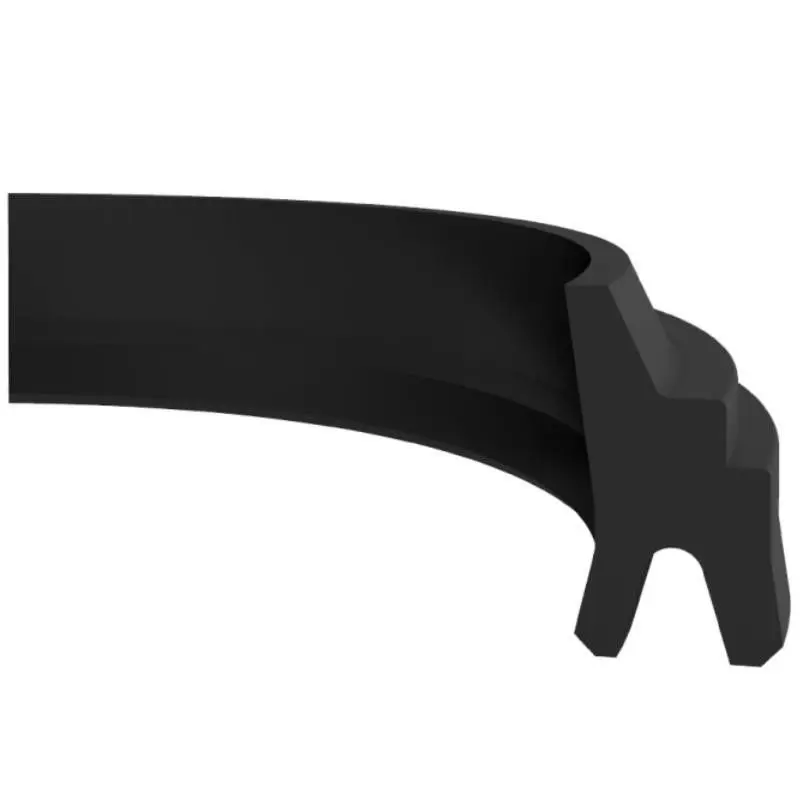

KL91 DOUBLE WIPER Special Design Providing Excellent Protection Against Contamination Good Wiping Performance On The Rod
KL91 wipers, produced from elastomer material, are sealing elements preventing that foreign particles from outer environment penetrate in the hydraulic applications. With its double lip structure, they are suitable for use in systems where a thin oil film is required.
Advantages
• Special design providing excellent protection against contamination
• Good wiping performance on the rod with double wiper design
• No twisting in the housing
• Thin oil film
• Easy installation
• Good wiping performance on the rod with double wiper design
• No twisting in the housing
• Thin oil film
• Easy installation
Area of Application
• Presses
• Injection moulding machines
• Standard industrial cylinders
• Injection moulding machines
• Standard industrial cylinders

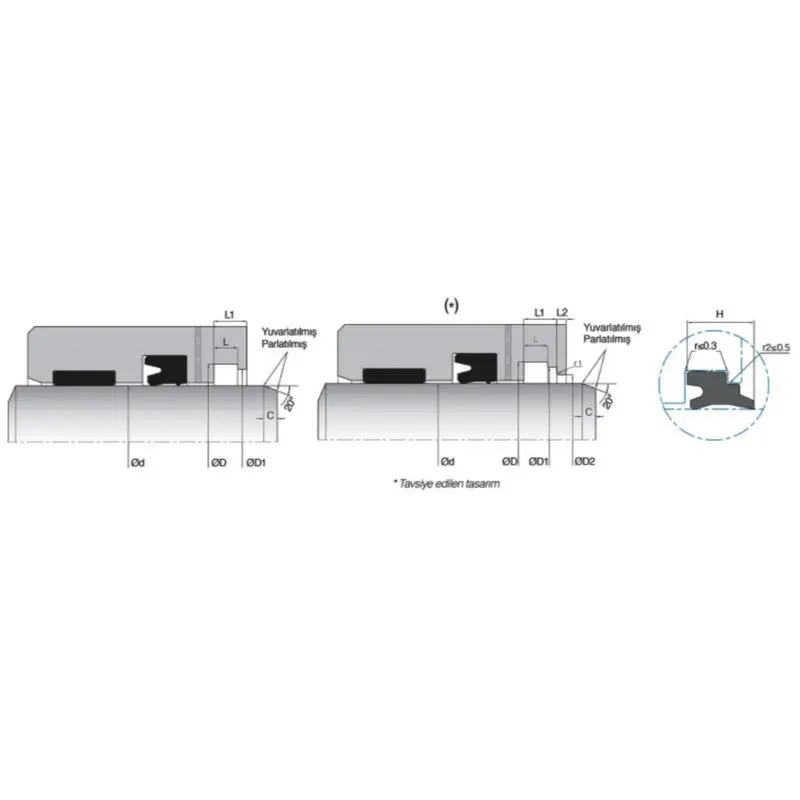

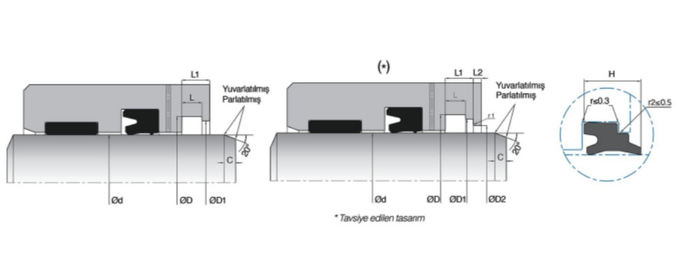

| d (f8) | D (H10) | D1 (H9) | D2 (H10) | L (+0.2/-0) | L1 (+0.2/-0) | L2 ≥2 | H | r1 | MATERIAL | |
| KL91-010 | 10 | 18 | 16 | 13.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-010/1 | 10 | 16.2 | 14.2 | 12.8 | 4.2 | 4.9 | 2 | 6 | 0.5 | NBR |
| KL91-012 | 12 | 20 | 18 | 15.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-014 | 14 | 22 | 20 | 17.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-015 | 15 | 23 | 21 | 18.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-016 | 16 | 24 | 22 | 19.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-016/1 | 16 | 24 | 22 | 19.5 | 4 | 6 | 2 | 7 | 0.5 | NBR |
| KL91-016/2 | 16 | 23 | 21.6 | 18.8 | 3.2 | 4.2 | 2 | 6 | 0.5 | NBR |
| KL91-018 | 18 | 26 | 24 | 21.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-020 | 20 | 28 | 26 | 23.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-022 | 22 | 30 | 28 | 25.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-024 | 24 | 32 | 30 | 27.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-025 | 25 | 33 | 31 | 28.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-026 | 26 | 34 | 32 | 29.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-028 | 28 | 36 | 34 | 31.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-030 | 30 | 38 | 36 | 33.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-032 | 32 | 40 | 38 | 35.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-035 | 35 | 43 | 41 | 38.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-036 | 36 | 44 | 42 | 39.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-037 | 37 | 45 | 43 | 40.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-038 | 38 | 46 | 44 | 41.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-040 | 40 | 48 | 46 | 43.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-040/1 | 40 | 48 | 46 | 42 | 3 | 4 | 2 | 5 | 0.5 | NBR |
| KL91-042 | 42 | 50 | 48 | 45.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-045 | 45 | 53 | 51 | 48.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-046 | 46 | 54 | 52 | 49.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-048 | 48 | 56 | 54 | 51.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-050 | 50 | 58 | 56 | 53.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-052 | 52 | 60 | 58 | 55.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-055 | 55 | 63 | 61 | 58.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-056 | 56 | 64 | 62 | 59.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-060 | 60 | 68 | 66 | 63.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-063 | 63 | 71 | 69 | 66.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-065 | 65 | 73 | 71 | 68.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-068 | 68 | 76 | 74 | 71.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-070 | 70 | 78 | 76 | 73.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-075 | 75 | 83 | 81 | 78.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-080 | 80 | 88 | 86 | 83.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-085 | 85 | 93 | 91 | 88.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-090 | 90 | 98 | 96 | 93.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-095 | 95 | 103 | 101 | 98.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-100 | 100 | 108 | 106 | 103.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-105 | 105 | 117 | 114 | 110 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-110 | 110 | 122 | 119 | 115 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-113 | 113 | 125 | 122 | 118 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-115 | 115 | 127 | 124 | 120 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-120 | 120 | 132 | 129 | 125 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-125 | 125 | 137 | 134 | 130 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-130 | 130 | 142 | 139 | 135 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-135 | 135 | 147 | 144 | 140 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-139.5 | 139.5 | 151.5 | 148.5 | 144.5 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-140 | 140 | 152 | 149 | 145 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-142 | 142 | 154 | 151 | 147 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-145 | 145 | 157 | 154 | 150 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-150 | 150 | 162 | 159 | 155 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-155 | 155 | 167 | 164 | 160 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-158.5 | 158.5 | 170.5 | 167.5 | 163.5 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-160 | 160 | 172 | 169 | 165 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-165 | 165 | 177 | 174 | 170 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-170 | 170 | 182 | 179 | 175 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-172 | 172 | 184 | 181 | 177 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-175 | 175 | 187 | 184 | 180 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-180 | 180 | 192 | 189 | 185 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-185 | 185 | 197 | 194 | 190 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-187.5 | 187.5 | 199.5 | 197.5 | 193.5 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-190 | 190 | 202 | 199 | 195 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-192 | 192 | 204 | 201 | 197 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-195 | 195 | 207 | 204 | 200 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-200 | 200 | 212 | 209 | 205 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-205 | 205 | 220 | 216 | 212 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-206.5 | 206.5 | 221.5 | 217.5 | 213.5 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-210 | 210 | 225 | 221 | 217 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-215 | 215 | 230 | 227 | 222 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-220 | 220 | 235 | 231 | 227 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-225 | 225 | 240 | 236 | 232 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-230 | 230 | 245 | 241 | 237 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-231 | 231 | 246 | 242 | 238 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-235 | 235 | 250 | 247 | 242 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-240 | 240 | 255 | 251 | 247 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-245 | 245 | 260 | 257 | 252 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-250 | 250 | 265 | 261 | 257 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-255 | 255 | 270 | 266 | 262 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-258 | 258 | 273 | 270 | 265 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-260 | 260 | 275 | 271 | 267 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-265 | 265 | 280 | 277 | 272 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-270 | 270 | 285 | 282 | 277 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-275 | 275 | 290 | 286 | 282 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-280 | 280 | 295 | 291 | 287 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-285 | 285 | 300 | 297 | 292 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-290 | 290 | 305 | 301 | 297 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-295 | 295 | 310 | 306 | 302 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-300 | 300 | 315 | 311 | 307 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-310 | 310 | 325 | 321 | 317 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-320 | 320 | 335 | 331 | 327 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-325 | 325 | 340 | 337 | 332 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-330 | 330 | 345 | 342 | 337 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-340 | 340 | 355 | 352 | 347 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-345 | 345 | 360 | 357 | 352 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-350 | 350 | 365 | 361 | 357 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-355 | 355 | 370 | 367 | 362 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-360 | 360 | 375 | 371 | 367 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-370 | 370 | 385 | 381 | 377 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-400 | 400 | 415 | 412 | 407 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-410 | 410 | 425 | 422 | 417 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-420 | 420 | 435 | 432 | 427 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-450 | 450 | 465 | 462 | 457 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-460 | 460 | 475 | 472 | 467 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-500 | 500 | 515 | 512 | 507 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
