Excavator Hydraulic Piston Seals Double Acting NBR / TPE / POM Material
product detail
Product Details
Style:
Hydraulic Piston Seals
Material:
NBR / TPE / POM
Pressure (max) Bar:
700
Temperature (max) °C:
-30/+100
Sliding Speed (max)- M/s:
0.5
Application:
Excavators
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
Double Acting Compact Seal Sets For Working At High And Variable Pressures In Heavy Duty Applications

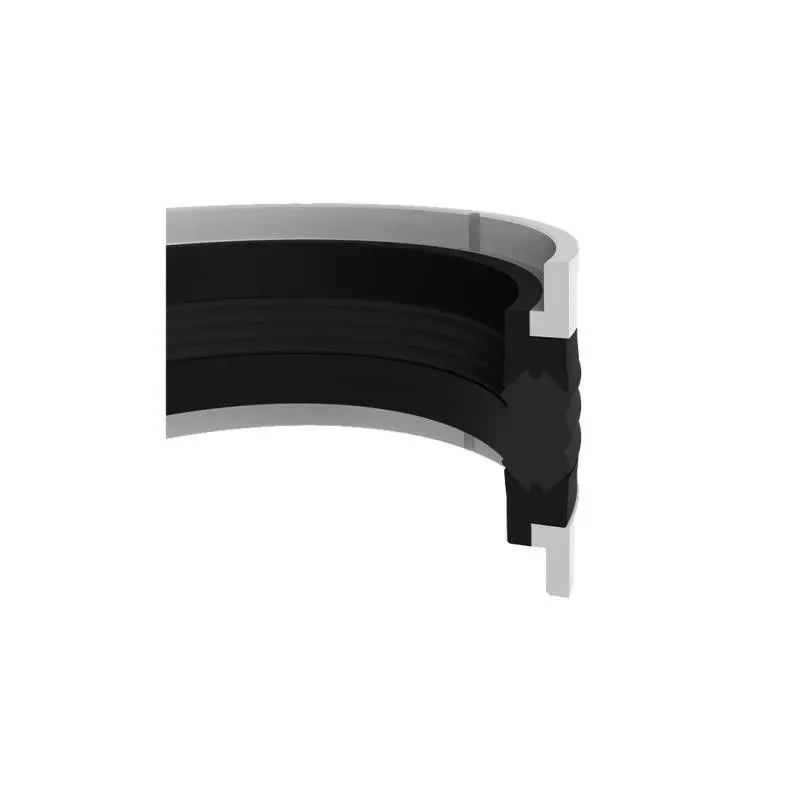

KL36 is a five piece double acting compact seal which consists of elastomeric sealing element, thermoplastic elastomer backup rings and thermoplastic guide rings. It is designed for working at high and variable pressures in heavy duty applications.
Advantages
• Effective sealing during vibration and shock loading
• High extrusion resistance at high pressures
• High sealing performance in locked systems
• High extrusion resistance at high pressures
• High sealing performance in locked systems
Area of Application
• Construction machinery
• Excavators
• Lifting platforms
• Heavy duty machinary
• Excavators
• Lifting platforms
• Heavy duty machinary

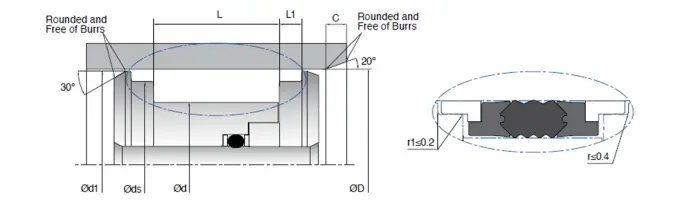

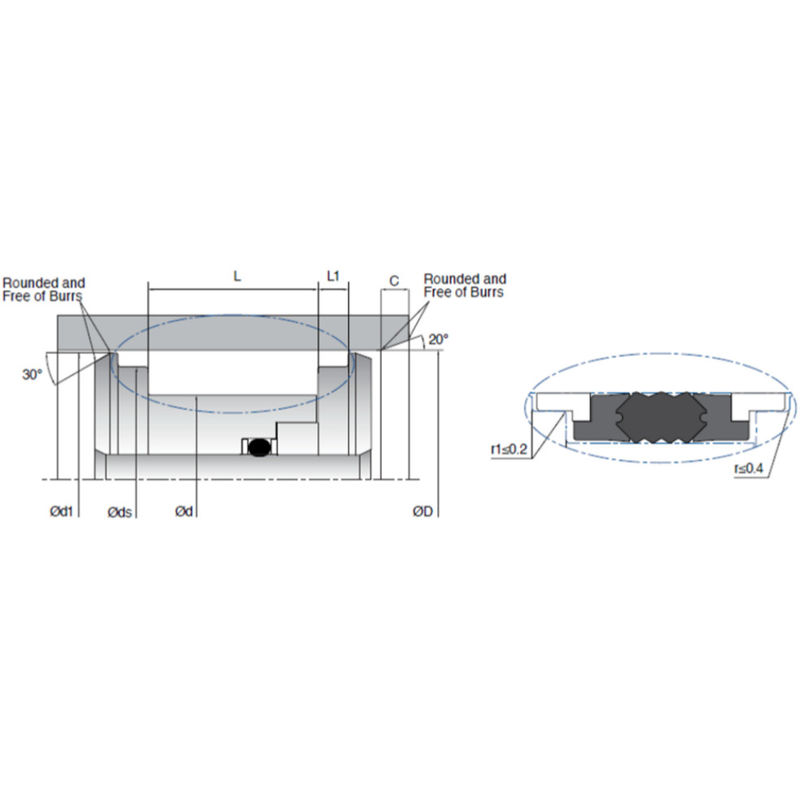

| D (H11) | d (h11) | L (+0.2/-0) | ds (h8) | d1 (±0.1) | L1 (+0.2/-0) | C | MATERIAL | |
| KL36 050-034 | 50 | 34 | 32 | 43.77 | 49 | 6.35 | 5 | NBR |
| KL36 060-044 | 60 | 44 | 32 | 53.8 | 57.8 | 6.35 | 5 | NBR |
| KL36 063-047 | 63 | 47 | 32 | 56.74 | 60.8 | 6.35 | 5 | NBR |
| KL36 070-050 | 70 | 50 | 35 | 62.62 | 68.5 | 9.52 | 5 | NBR |
| KL36 080-060 | 80 | 60 | 35 | 72.62 | 77.5 | 9.52 | 5 | NBR |
| KL36 085-065 | 85 | 65 | 35 | 77.62 | 82.5 | 9.52 | 5 | NBR |
| KL36 090-070 | 90 | 70 | 35 | 82.58 | 87.8 | 9.52 | 5 | NBR |
| KL36 095-075 | 95 | 75 | 35 | 87.6 | 92.5 | 9.52 | 5 | NBR |
| KL36 100-080 | 100 | 80 | 35 | 92.6 | 97.5 | 9.52 | 7 | NBR |
| KL36 110-090 | 110 | 90 | 35 | 102.7 | 107.5 | 9.52 | 7 | NBR |
| KL36 120-100 | 120 | 100 | 35 | 112.8 | 117.5 | 9.52 | 7 | NBR |
| KL36 125-100 | 125 | 100 | 45 | 116.82 | 124 | 12.7 | 7 | NBR |
| KL36 130-110 | 130 | 110 | 35 | 122.7 | 127.3 | 9.52 | 7 | NBR |
| KL36 140-120 | 140 | 120 | 35 | 132.7 | 137.3 | 9.52 | 7 | NBR |
| KL36 150-120 | 150 | 120 | 44 | 143.85 | 148 | 9.5 | 7 | NBR |
| KL36 150-125 | 150 | 125 | 45 | 141.72 | 147.3 | 12.7 | 7 | NBR |
| KL36 160-135 | 160 | 135 | 45 | 151.72 | 157.1 | 12.7 | 7 | NBR |
| KL36 170-140 | 170 | 140 | 45 | 163 | 167.8 | 12.7 | 7 | NBR |
| KL36 180-155 | 180 | 155 | 45 | 171.6 | 177.1 | 12.7 | 7 | NBR |
| KL36 190-165 | 190 | 165 | 45 | 181.72 | 187.1 | 12.7 | 7 | NBR |
| KL36 200-175 | 200 | 175 | 45 | 191.72 | 197.1 | 12.7 | 10 | NBR |
| KL36 210-185 | 210 | 185 | 45 | 201.6 | 207.1 | 12.7 | 10 | NBR |
| KL36 220-195 | 220 | 195 | 45 | 211.6 | 217.6 | 12.7 | 10 | NBR |
| KL36 250-225 | 250 | 225 | 45 | 241.72 | 247.1 | 12.7 | 10 | NBR |
| KL36 280-255 | 280 | 255 | 45 | 271.72 | 277.1 | 12.7 | 10 | NBR |
| KL36 300-275 | 300 | 275 | 45 | 291.72 | 297.1 | 12.7 | 10 | NBR |
| KL36 320-295 | 320 | 295 | 45 | 311.72 | 317.1 | 12.7 | 10 | NBR |
| KL36 350-325 | 350 | 325 | 45 | 341.72 | 347.1 | 12.7 | 10 | NBR |
