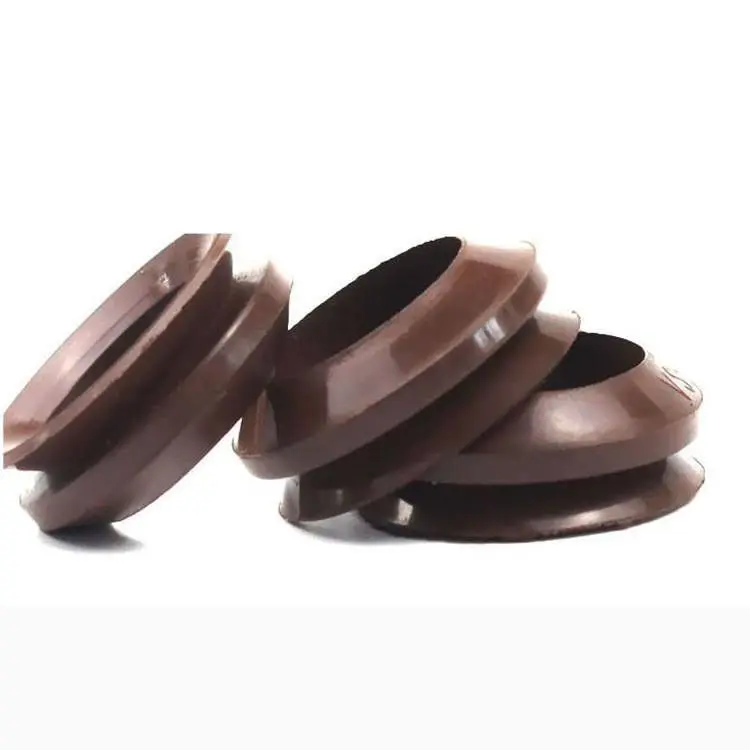

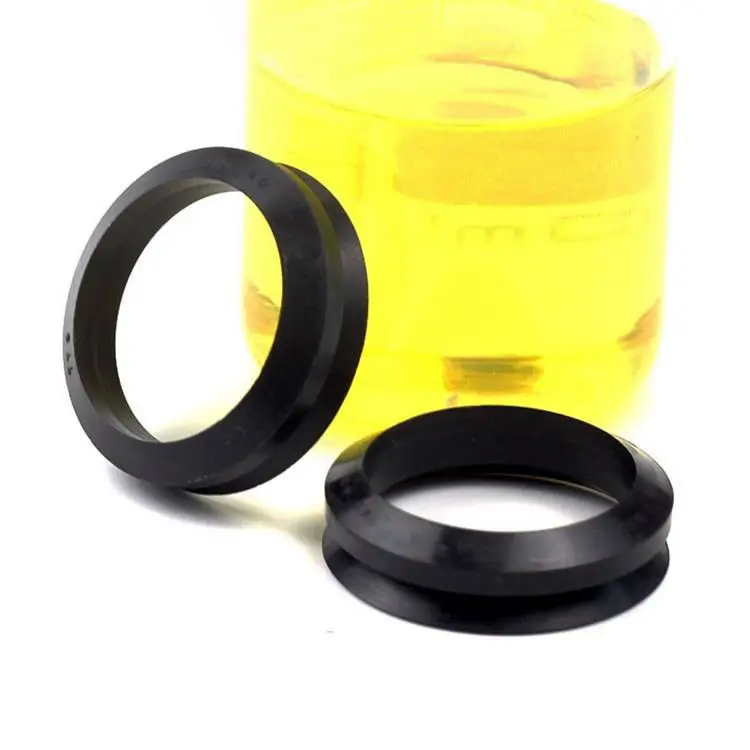

Hydraulic Cylinder FKM Rotary Seal Ring / Rubber NBR Sealing Ring
product detail
Product Details
Name:
Hydraulic Cylinder Ring
Material:
PTFE NBR
Pressure (max) Bar:
300
Temperature (max) °C:
-30/+105
Sliding Speed (max)- M/s:
5
Payment & Shipping Terms
Minimum Order Quantity:
100
Packaging Details:
Customizable packaging
Delivery Time:
15
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs /months

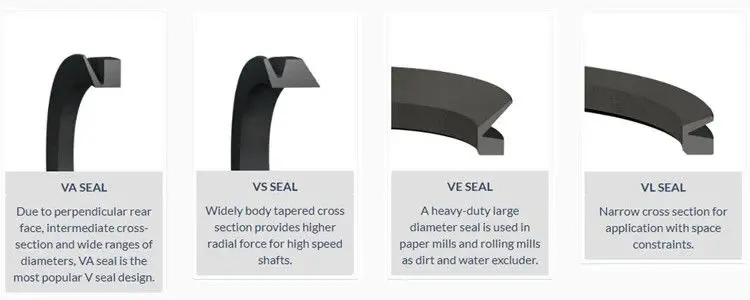

Hydraulic Cylinder FKM Rubber V-Ring Water Seal NBR Rubber V-Seal VS Rotary Shaft Seal Ring

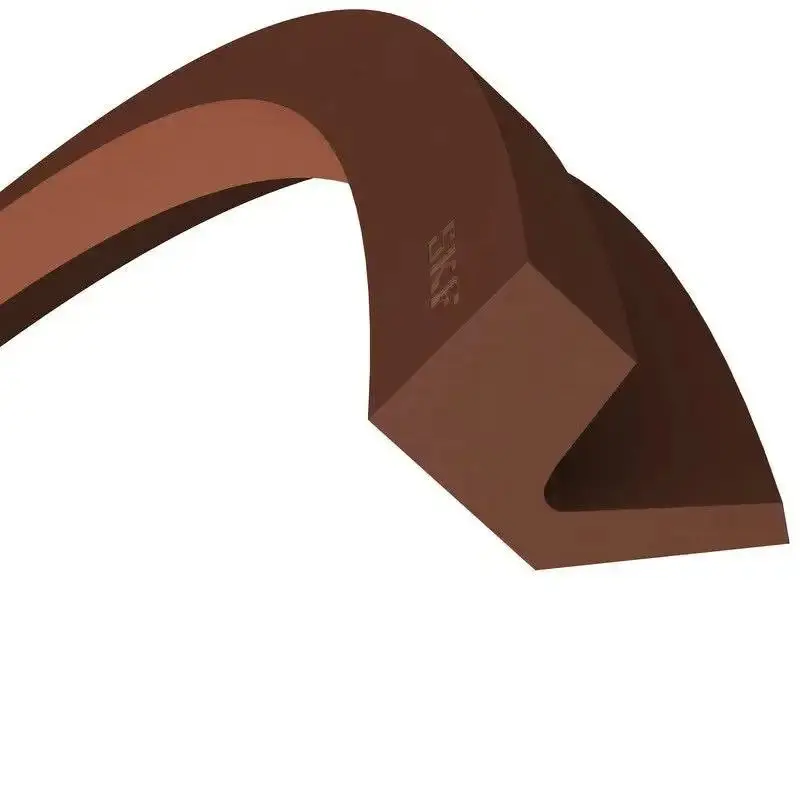

Type S V-rings with bevel back serves as a pressure-less, axial rod seal which is clamped on a shaft. The flexible sealing lip seals a counterface at a right angle to the shaft, preventing dirt, dust and splash to enter the construction. Available in sizes from .180″ (4.5mm) shaft to 8.270″ (210mm). Commonly used in agricultural and automotive applications.

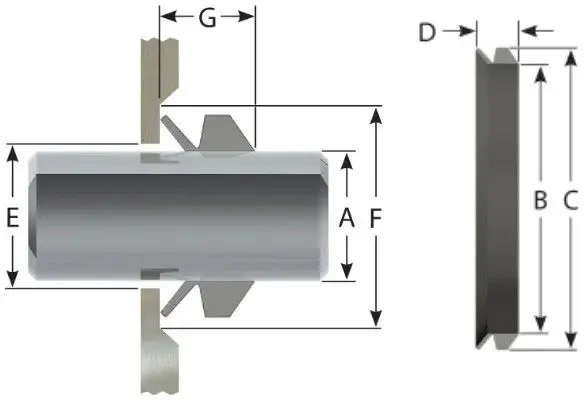

VS Style Size Chart
| Seal Dimensions | Housing Dimensions | ||||||
| A | B | C | D | E | F | G | |
| Part Number | Shaft Diameter | I.D. | O.D | Height | I.D. | O.D | Width |
| VS 005 | 4.50-5.50 | 4.00 | 8.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 006 | 5.50 ·6.50 | 5.00 | 9.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 007 | 6.50-8.00 | 6.00 | 10.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 008 | 8.00-9.50 | 7.00 | 11.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 010 | 9.50-11.50 | 9.00 | 15.00 | 7.70 | A+2.00 | A+9.00 | 6.70±0.60 |
| VS 012 | 11.50-13.50 | 10.50 | 16.50 | 7.70 | A+ 2.00 | A+9.00 | 6.70±0.60 |
| VS 014 | 13.50-15.50 | 12.50 | 18.50 | 7.70 | A+2.00 | A+9.00 | 6.70±0.60 |
| VS 016 | 15.50-17.50 | 14.00 | 20.00 | 7.70 | A+2.00 | A+9.00 | 6.70±0.60 |
| VS 018 | 17.50-19.00 | 16.00 | 22.00 | 7.70 | A+2.00 | A+9.00 | 6.70± 0.60 |
| VS 020 | 19.00-21.00 | 18.00 | 26.00 | 10.50 | A+2.00 | A+ 12.00 | 9.00±0.80 |
| VS 022 | 21.00-24.00 | 20.00 | 28.00 | 10.50 | A+2.00 | A+ 12.00 | 9.00±0.80 |
| VS 025 | 24.00-27.00 | 22.00 | 30.00 | 10.50 | A+2.00 | A+12.00 | 9.00±0.80 |
| VS 028 | 27.00-29.00 | 25.00 | 33.00 | 10.50 | A+3.00 | A+12.00 | 9.00±0.80 |
| VS 030 | 29.00-31.00 | 27.00 | 35.00 | 10.50 | A+ 3.00 | A+ 12.00 | 9.00± 0.80 |
| VS 032 | 31.00-33.00 | 29.00 | 37.00 | 10.50 | A+3.00 | A+ 12.00 | 9.00±0.80 |
| VS 035 | 33.00-36.00 | 31.00 | 39.00 | 10.50 | A+ 3.00 | A+ 12.00 | 9.00±0.80 |
| VS 038 | 36.00-38.00 | 34.00 | 42.00 | 10.50 | A + 3.00 | A+ 12.00 | 9.00±0.80 |
| VS 040 | 38.00-43.00 | 36.00 | 46.00 | 13.00 | A+ 3.00 | A+15.00 | 11.00±1.00 |
| VS 045 | 43.00-48.00 | 40.00 | 50.00 | 13.00 | A+3.00 | A+15.00 | 11.00±1.00 |
| VS 050 | 48.00-53.00 | 45.00 | 55.00 | 13.00 | A+3.00 | A+ 15.00 | 11.00±1.00 |
| V5055 | 53.00-58.00 | 49.00 | 59.00 | 13.00 | A+3.00 | A+15.00 | 11.00±1.00 |
| VS 060 | 58.00-63.00 | 54.00 | 64.00 | 13.00 | A+ 3.00 | A+ 15.00 | 11.00±1.00 |
| VS 065 | 63.00-68.00 | 58.00 | 68.00 | 13.00 | A+ 3.00 | A+15.00 | 11.00±1.00 |
| VS 070 | 68.00-73.00 | 63.00 | 75.00 | 15.50 | A+4.00 | A+ 18.00 | 13.50±1.20 |
| VS 075 | 73.00-78.00 | 67.00 | 79.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 080 | 78.00-83.00 | 72.00 | 84.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 085 | 83.00-88.00 | 76.00 | 88.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 090 | 88.00-93.00 | 81.00 | 93.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 095 | 93.00-98.00 | 85.00 | 97.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 100 | 98.00-105.00 | 90.00 | 102.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 110 | 105.00 ·115.00 | 99.00 | 113.00 | 18.00 | A+4.00 | A+21.00 | 15.50±1.50 |
| VS 120 | 115.00-125.00 | 108.00 | 122.00 | 18.00 | A+4.00 | A+21.00 | 15.50±1.50 |
| VS 130 | 125.00-135.00 | 117.00 | 131.00 | 18.00 | A+4.00 | A+ 21.00 | 15.50±1.50 |
| VS 140 | 135.00-145.00 | 126.00 | 140.00 | 18.00 | A+4.00 | A+ 21.00 | 15.50±1.50 |
| VS 150 | 145.00-155.00 | 135.00 | 149.00 | 18.00 | A+4.00 | A+ 21.00 | 15.50±1.50 |
| VS 160 | 155.00 ·165.00 | 144.00 | 160.00 | 20.50 | A+5.00 | A+24.00 | 18.00±1.80 |
| VS 170 | 165.00-175.00 | 153.00 | 169.00 | 20.50 | A+5.00 | A+ 24.00 | 18.00±1.80 |
| VS 180 | 175.00-185.00 | 162.00 | 178.00 | 20.50 | A+5.00 | A+24.00 | 18.00±1.80 |
| VS 190 | 185.00-195.00 | 171.00 | 187.00 | 20.50 | A+5.00 | A+24.00 | 18.00±1.80 |
| VS 199 | 195.00-210.00 | 180.00 | 196.00 | 20.50 | A+ 5.00 | A+24.00 | 18.00±1.80 |
