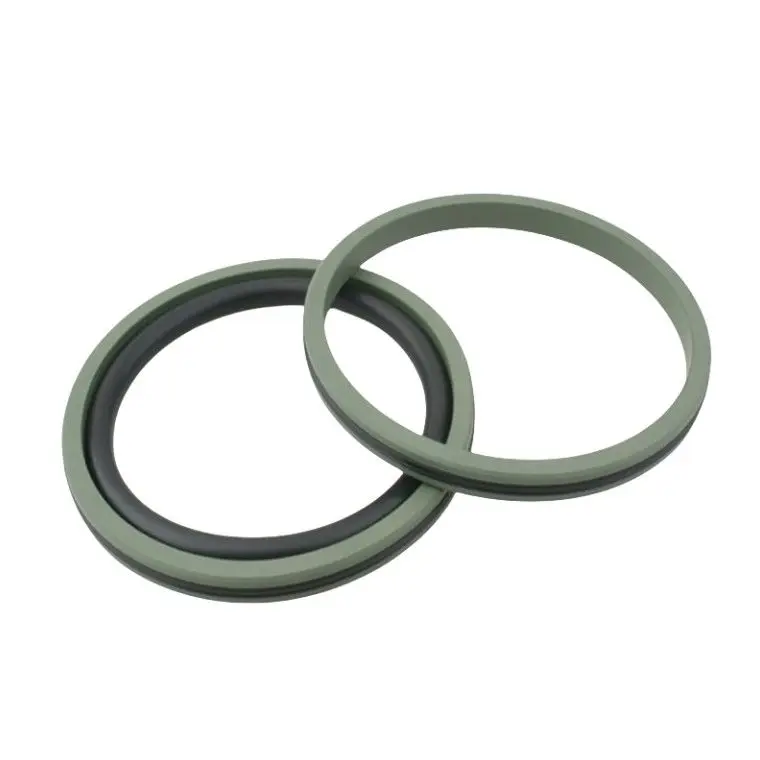

Hydraulic Piston Compact Reciprocating Seals In NBR For Cylinders
product detail
Product Details
Material:
NBR / HNBR / EPDM / FKM
Pressure (max) Bar:
200/400
Temperature (max) °C:
-55/+200
Sliding Speed (max)- M/s:
0.5/1
Style:
Piston Seals
Application:
Asymmetric Piston Seals For Standard Applications
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

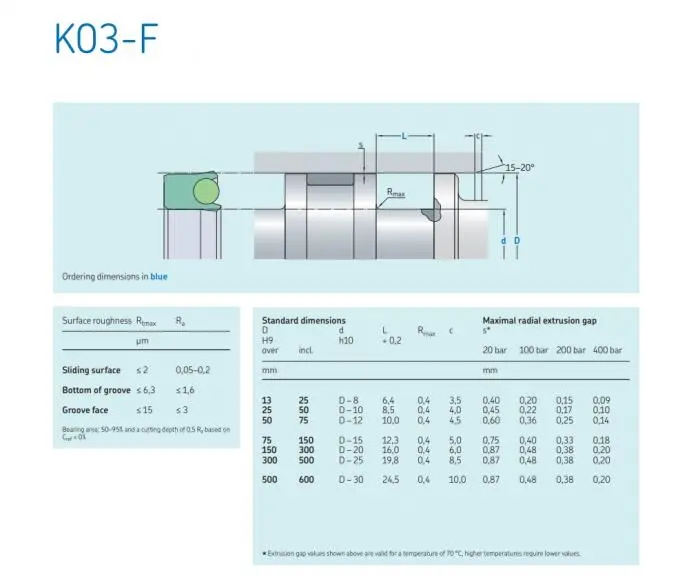

K03-F
Overview

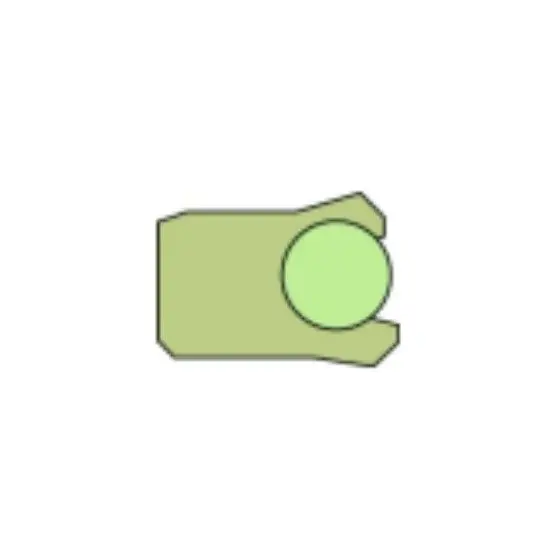

O-ring preloaded, asymmetric PTFE piston seal.
The design is optimized for FKM material in order to minimize friction and stick-slip effects.
Can be adapted to a wide wide temperature range.
Adaptation to different temperatures and temperature ranges can be achieved by selecting the appropriate O-ring material. ring material to suit different temperatures and media.
Almost no hygienic dead space, easy to clean. virtually no hygienic dead space, easy to clean.
Temperature (max) °C : -55～+200
Pressure (max) Bar : 100 / 400
Sliding Speed (max)- M/s: 0.5 / 1
Application:
Backwards and forwards action (e.g. of piston or pump)
Stationary state
