KE5611 Multispiral Hydraulic Hose Acc. To SAE100 R9 Oil Resistant
Collect products
KE5611 Multispiral Hydraulic Hose Acc. To SAE100 R9 Oil Resistant
KE5611 Multispiral Hydraulic Hose Acc. To SAE100 R9 Oil Resistant
KE5611 Multispiral Hydraulic Hose Acc. To SAE100 R9 Oil Resistant
KE5611 Multispiral Hydraulic Hose Acc. To SAE100 R9 Oil Resistant

KE5611 Multispiral Hydraulic Hose Acc. To SAE100 R9 Oil Resistant

Multispiral Hydraulic Hose

Spiral Hydraulic Hose Oil Resistant

ISO9001 Hydraulic Spiral Hose

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KE5611

    Contact us
    Product Detail

    product detail

    Product Details
    Name:
    Multispiral Hydraulic Hose
    Tube:
    Synthetic Rubber, Resistant Against Hydraulic Fluids
    Cover:
    Abrasion And Ozone Resistant Synthetic Rubber
    Temperature Range:
    -40°C To 100°C / -40°F To +212°F (max 120°C / 248°F Intermittent)
    Note:
    Various Covers Available
    Reinforcement:
    Four Spiral Layers Of High Tensile Steel Wire
    Applications:
    Petroleum Based Hydraulic Oil
    Payment & Shipping Terms
    Delivery Time:
    7-15 days
    Payment Terms:
    L/C, T/T, Paypal
    Supply Ability:
    16,5600 meters /months

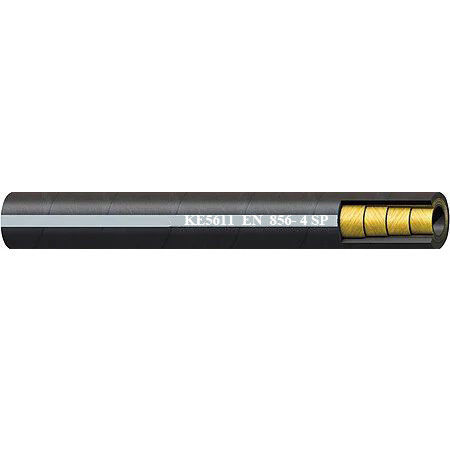

    KE5611 Multispiral Hydraulic Hose Acc. To SAE100 R9



    TUBE:

    Oil-resistant synthetic rubber inner layer + steel wire winding + oil-resistant and weather-resistant synthetic rubber outer layer

    Reinforcement:Four spiral layers of high tensile steel wire



    Cover:Abrasion and ozone resistant synthetic rubber



    Note:Various covers available



    Temperature range:-40°C to 100°C / -40°F to +212°F (max 120°C / 248°F intermittent)

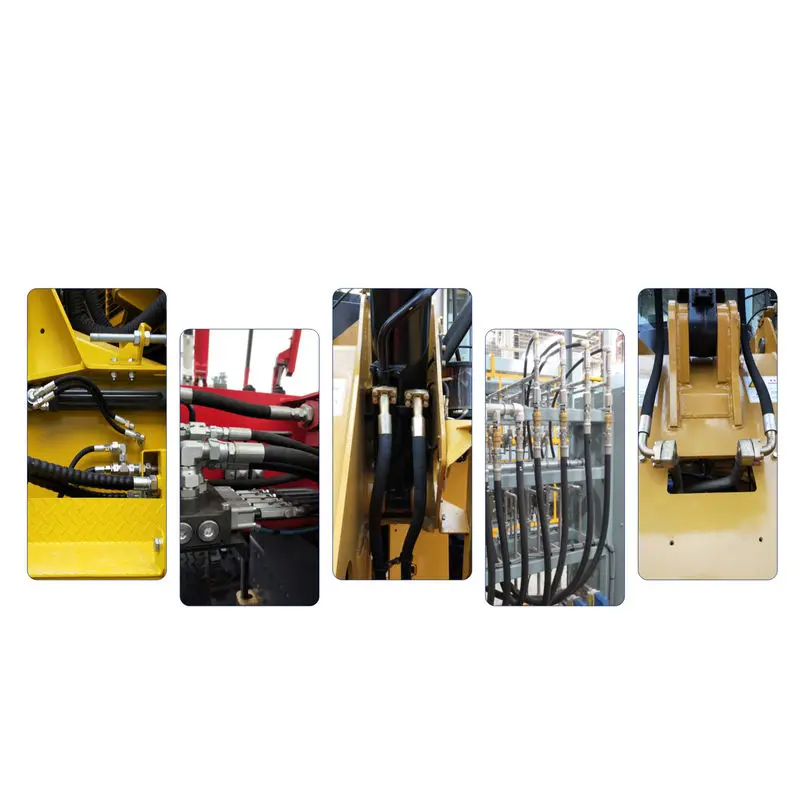

    Applications:Suitable for petroleum-based hydraulic oil.



    TYPE

    Dash size

    I.D

    W.D

    OD

    Working pressure

    Proof pressure

    Min Burst pressure

    Min Bend radius

    W.T

    1ST TYPE

    1SN TYPE

    W.P

    P. P

    B.P

    Min B.R

    mm

    1/16

    Inch

    Min

    Max

    Min

    Max

    Min

    Max

    Max

    Mpa

    Psi

    Mpa

    Psi

    Mpa

    Psi

    Inch

    mm

    Kg/m

    KE5611-04

    6.3

    -4

    1/4

    6.2

    7.0

    14.1

    15.3

    17.1

    18.7



    45

    6525

    90

    13050

    180

    26100

    5.91

    150

    0.64

    KE5611-06

    10

    -6

    3/8

    9.3

    10.1

    16.9

    18.1

    20.6

    22.2



    44.5

    6450

    89

    12905

    178

    25810

    7.09

    180

    0.75

    KE5611-08

    12.5

    -8

    1/2

    12.3

    13.5

    19.4

    21.0

    23.8

    25.4



    41.5

    6020

    83

    12035

    166

    24070

    9.06

    230

    0.89

    KE5611-10

    16

    -10

    5/8

    15.5

    16.7

    23.0

    24.6

    27.4

    29



    35

    5075

    70

    10150

    140

    20300

    9.84

    250

    1.10

    KE5611-12

    19

    -12

    3/4

    18.6

    19.8

    27.4

    29.0

    31.4

    33



    35

    5075

    70

    10150

    140

    20300

    11.81

    300

    1.50

    KE5611-16

    25

    -16

    1

    25.0

    26.4

    34.5

    36.1

    38.5

    40.9



    28

    4060

    56

    8120

    112

    16240

    13.39

    340

    2.00

    KE5611-20

    31.5

    -20

    1-1/4

    31.4

    33.0

    45.0

    47.0

    49.2

    52.4



    21

    3045

    42

    6090

    84

    12180

    18.11

    460

    3.00

    KE5611-24

    38

    -24

    1-1/2

    37.7

    39.3

    51.4

    53.4

    55.6

    58.8



    18.5

    2680

    37

    5365

    74

    10730

    22.05

    560

    3.40

    KE5611-32

    51

    -32

    2

    50.4

    52.0

    643.0

    66.3

    68.2

    71.4



    16.5

    2390

    33

    4785

    66

    9570

    25.98

    660

    4.35
