Kelong Hydraulic Rod Seals NBR / FABRIC NBR / POM Material With Multi Lip Structure
product detail
Product Details
Style:
Hydraulic Rod Seals
Material:
NBR / FABRIC NBR / POM
Temperature (max) °C:
-30/+100
Pressure (max) Bar:
400
Sliding Speed (max)- M/s:
0.5
Application:
Iron And Steel Industry / Marine Hydraulics / Presses / Heavy Duty Cylinders / Mining Industry
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
Operating In Heavy Duty Conditions Single Acting Rod Sealing Set Rod Packing Multi Lip Structure

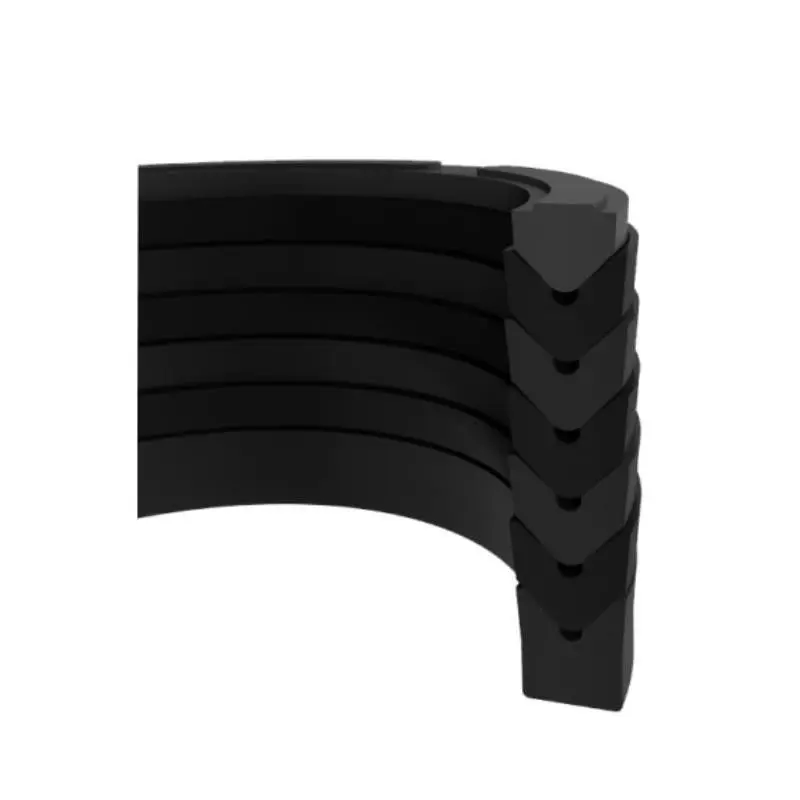

KL02 rod packing is a single acting rod sealing set which consists of one header ring, three pieces fabric elastomer rings, two pieces elastomer rings and one fabric elastomer back ring.
Advantages
• Operating in heavy duty conditions
• Functions even with poor surfaces by the multi lip structure
• Adjustable housing height due to the reason of being used in open grooves
• Quick installation and removal
• Long service life
• Very good sealing performance at both low and high pressures
• Functions even with poor surfaces by the multi lip structure
• Adjustable housing height due to the reason of being used in open grooves
• Quick installation and removal
• Long service life
• Very good sealing performance at both low and high pressures
Area of Application
• Iron and steel industry
• Marine hydraulics
• Presses
• Heavy duty cylinders
• Mining industry
• Marine hydraulics
• Presses
• Heavy duty cylinders
• Mining industry

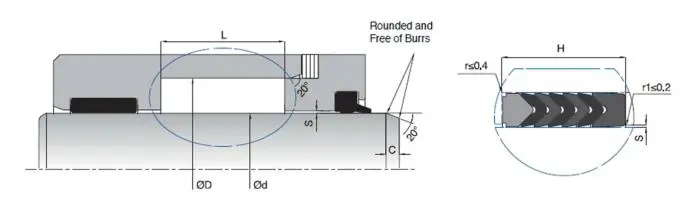

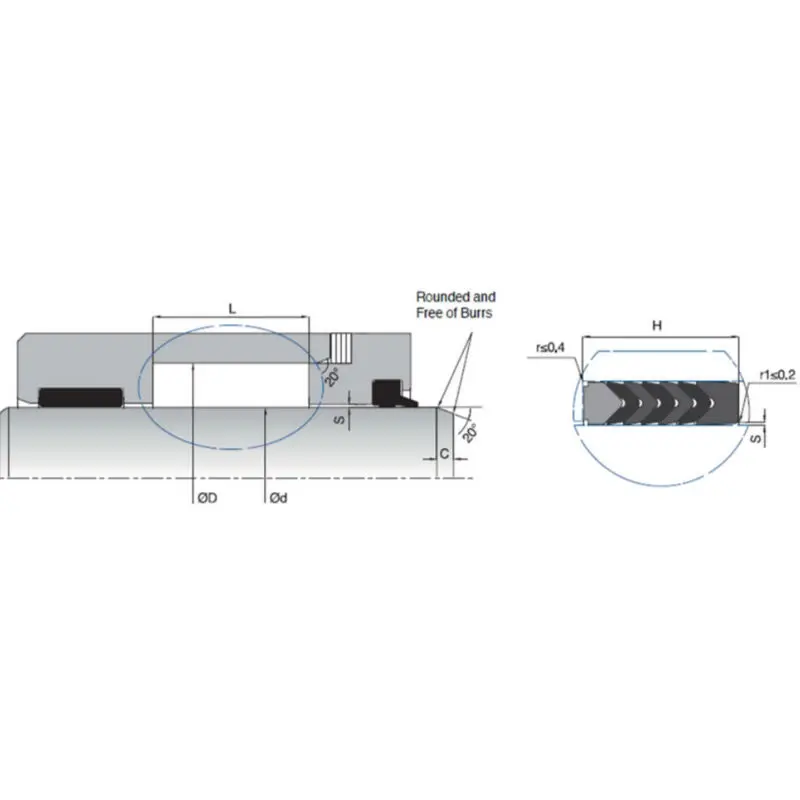

| d (f8) | D (H9) | L (+0.2/-0) | H | Cross Section | E | C | MATERIAL | |
| KL02-008 | 8 | 18 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-010 | 10 | 20 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-012 | 12 | 22 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-013 | 13.5 | 25 | 16.5 | 16.5 | 5.75 | - | 3 | FB |
| KL02-014 | 14 | 24 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-015 | 15 | 25 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-015/1 | 15 | 32 | 25 | 25 | 8.5 | - | 3 | FB |
| KL02-016 | 16 | 26 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-018 | 18 | 28 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-018/1 | 18 | 32 | 23.5 | 23.5 | 7 | - | 3 | FB |
| KL02-020 | 20 | 30 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-020/1 | 20 | 32 | 22.5 | 22.5 | 6 | 3 | 5 | FB |
| KL02-022 | 22 | 32 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-022/1 | 22 | 34 | 22.5 | 22.5 | 6 | 3 | 5 | FB |
| KL02-025 | 25 | 37 | 22.5 | 22.5 | 6 | 3 | 5 | FB |
| KL02-025/1 | 25 | 40 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-028 | 28 | 40 | 22.5 | 22.5 | 6 | 3 | 5 | FB |
| KL02-028/1 | 28 | 43 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-030 | 30 | 42 | 22.5 | 22.5 | 6 | 3 | 5 | FB |
| KL02-030/1 | 30 | 45 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-030/2 | 30 | 50 | 37 | 37 | 10 | - | 5 | FB |
| KL02-032 | 32 | 44 | 22.5 | 22.5 | 6 | 3 | 5 | FB |
| KL02-032/1 | 32 | 47 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-032/2 | 32 | 45 | 22.5 | 22.5 | 6.5 | 3 | 5 | FB |
| KL02-035 | 35 | 47 | 22.5 | 22.5 | 6 | 3 | 5 | FB |
| KL02-035/1 | 35 | 50 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-036 | 36 | 48 | 22.5 | 22.5 | 6 | 3 | 5 | FB |
| KL02-036/1 | 36 | 51 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-040 | 40 | 52 | 22.5 | 22.5 | 6 | 3 | 5 | FB |
| KL02-040/1 | 40 | 55 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-040/2 | 40 | 55 | 25 | 25 | 7.5 | - | 5 | FB |
| KL02-040/3 | 40 | 56 | 22.5 | 22.5 | 8 | 3 | 5 | FB |
| KL02-042 | 42 | 54 | 22.5 | 22.5 | 6 | 3 | 5 | FB |
| KL02-042/1 | 42 | 57 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-045 | 45 | 60 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-045/1 | 45 | 65 | 22.5 | 22.5 | 10 | 4 | 5 | FB |
| KL02-045/2 | 45 | 55 | 22 | 22 | 5 | - | 5 | FB |
| KL02-045/3 | 45 | 62 | 26 | 26 | 8.5 | - | 5 | FB |
| KL02-047 | 47 | 65 | 33 | 33 | 9 | - | 5 | FB |
| KL02-048 | 48 | 63 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-050 | 50 | 65 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-050/1 | 50 | 70 | 30 | 30 | 10 | 4 | 5 | FB |
| KL02-055 | 55 | 70 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-055/1 | 55 | 75 | 30 | 30 | 10 | 4 | 5 | FB |
| KL02-055/2 | 55 | 67 | 24 | 24 | 6 | 3 | 5 | FB |
| KL02-056 | 56 | 71 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-056/1 | 56 | 76 | 37 | 37 | 10 | 5 | 5 | FB |
| KL02-056/2 | 56 | 72 | 46 | 46 | 8 | 6 | 5 | FB |
| KL02-060 | 60 | 75 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-060/1 | 60 | 80 | 37 | 37 | 10 | 5 | 5 | FB |
| KL02-060/3 | 60 | 85 | 37 | 37 | 12.5 | 5 | 7.5 | FB |
| KL02-063 | 63 | 78 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-063/1 | 63 | 83 | 37 | 37 | 10 | 5 | 5 | FB |
| KL02-063/2 | 63.5 | 78 | 40 | 40 | 7.25 | - | 5 | FB |
| KL02-065 | 65 | 80 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-065/1 | 65 | 85 | 40 | 40 | 10 | 5 | 5 | FB |
| KL02-070 | 70 | 85 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-070/1 | 70 | 90 | 40 | 40 | 10 | 5 | 5 | FB |
| KL02-075 | 75 | 90 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-075/1 | 75 | 95 | 40 | 40 | 10 | 5 | 5 | FB |
| KL02-075/2 | 75 | 87 | 25 | 25 | 6 | 3 | 5 | FB |
| KL02-075/3 | 75 | 100 | 34 | 34 | 12.5 | 4 | 7.5 | FB |
| KL02-078 | 78 | 100 | 35 | 35 | 11 | - | 7.5 | FB |
| KL02-080 | 80 | 95 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-080/1 | 80 | 100 | 40 | 40 | 10 | 5 | 5 | FB |
| KL02-085 | 85 | 100 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
