KL04 Single Acting Hydraulic Rod Seals for light / medium duty applications
product detail
Product Details
Style:
Rod Hydraulic Seals
Temperature (max) °C:
-40/+100 -35/+105
Pressure (max) Bar:
400 / 150
Material:
PU / NBR
Sliding Speed (max)- M/s:
0.5
Application:
Standard Industrial Cylinders / Forklifts
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

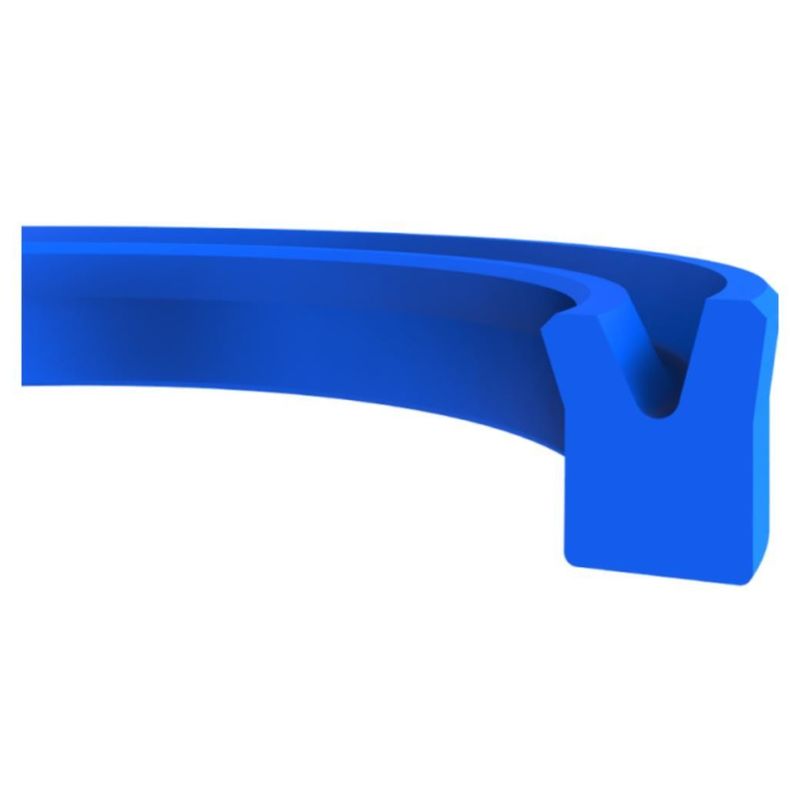

KL04 is a single acting hydraulic rod seal designed for light and medium duty applications.
Advantages
• Superior static and dynamic sealing effect
• Wide range of dimensions
• Easy installation into closed grooves
Area of Application
• Agricultural machinery
• Presses
• Construction machinery
• Loading platforms
• Injection moulding machines
• Forklifts
• Standard industrial cylinders

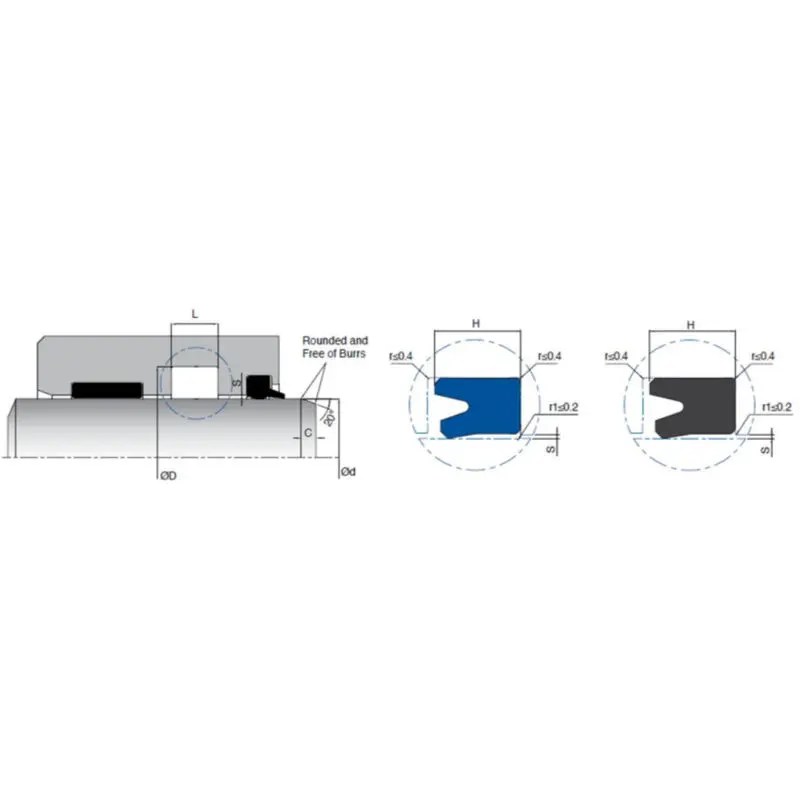

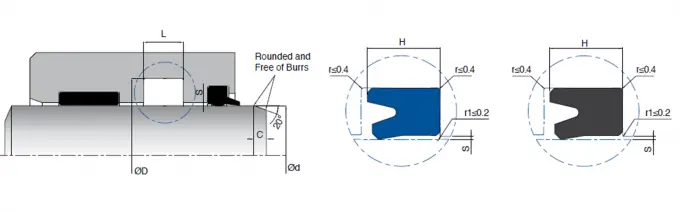

| d (f8) | D (H10) | L (+0.2/-0) | H | C | MATERIAL | |
| KL04-002/2 | 2 | 5.5 | 3.1 | 2.6 | 2.5 | NBR |
| KL04-004/1 | 4 | 8 | 3.5 | 3 | 2.5 | NBR |
| KL04-004/6 | 4 | 12 | 7 | 6 | 4.5 | NBR |
| KL04-004/6 PU | 4 | 12 | 7 | 6 | 4.5 | PU |
| KL04-006/1 | 6 | 10 | 3.5 | 3 | 2.5 | NBR |
| KL04-006/1 PU | 6 | 10 | 3.5 | 3 | 2.5 | PU |
| KL04-008 | 8 | 14 | 4.5 | 4 | 3.5 | NBR |
| KL04-008 PU | 8 | 14 | 4.5 | 4 | 3.5 | PU |
| KL04-008/4 | 8 | 16 | 6.5 | 5.5 | 4.5 | NBR |
| KL04-008/5 | 8 | 13 | 3.5 | 3 | 3 | NBR |
| KL04-008/5 PU | 8 | 13 | 3.5 | 3 | 3 | PU |
| KL04-009/2 | 9.52 | 16.5 | 4.46 | 3.96 | 3.5 | NBR |
| KL04-010 | 10 | 18 | 6.5 | 5.5 | 4.5 | NBR |
| KL04-010 PU | 10 | 18 | 6.5 | 5.5 | 4.5 | PU |
| KL04-010/1 | 10 | 16 | 5 | 4.5 | 3.5 | NBR |
| KL04-010/1 PU | 10 | 16 | 5 | 4.5 | 3.5 | PU |
| KL04-010/2 | 10 | 14 | 4.5 | 4 | 2.5 | NBR |
| KL04-010/2 PU | 10 | 14 | 4.5 | 4 | 2.5 | PU |
| KL04-010/3 | 10 | 16 | 7 | 6 | 3.5 | NBR |
| KL04-010/4 | 10 | 14 | 2.5 | 2 | 2.5 | NBR |
| KL04-010/4 PU | 10 | 14 | 2.5 | 2 | 2.5 | PU |
| KL04-010/5 | 10 | 20 | 7.5 | 6.5 | 5.5 | NBR |
| KL04-010/7 | 10 | 13.6 | 2.8 | 2.3 | 2.5 | NBR |
| KL04-010/7 PU | 10 | 13.6 | 2.8 | 2.3 | 2.5 | PU |
| KL04-012/1 | 12 | 20 | 6.5 | 5.5 | 4.5 | NBR |
| KL04-012/1 PU | 12 | 20 | 6.5 | 5.5 | 4.5 | PU |
| KL04-012/4 | 12 | 18 | 5 | 4.5 | 3.5 | NBR |
| KL04-012/4 PU | 12 | 18 | 5 | 4.5 | 3.5 | PU |
| KL04-012/6 | 12 | 16 | 3.5 | 3 | 2.5 | NBR |
| KL04-012/6 PU | 12 | 16 | 3.5 | 3 | 2.5 | PU |
| KL04-014 | 14 | 22 | 6.5 | 5.5 | 4.5 | NBR |
| KL04-014 PU | 14 | 22 | 6.5 | 5.5 | 4.5 | PU |
| KL04-014/3 | 14 | 20 | 5 | 4.5 | 3.5 | NBR |
| KL04-015 | 15 | 23 | 7 | 6 | 4.5 | NBR |
| KL04-015 PU | 15 | 23 | 7 | 6 | 4.5 | PU |
| KL04-015/1 | 15.87 | 22.22 | 5.26 | 4.76 | 3.5 | NBR |
| KL04-015/1 PU | 15.87 | 22.22 | 5.26 | 4.76 | 3.5 | PU |
| KL04-016 | 16 | 20.5 | 6 | 5 | 2.5 | NBR |
| KL04-016 PU | 16 | 20.5 | 6 | 5 | 2.5 | PU |
| KL04-016/1 | 16 | 22.5 | 5 | 4.5 | 3.5 | NBR |
| KL04-016/2 | 16 | 26 | 8 | 7 | 5.5 | NBR |
| KL04-016/2 PU | 16 | 26 | 8 | 7 | 5.5 | PU |
| KL04-016/3 | 16 | 24 | 6.5 | 5.5 | 4.5 | NBR |
| KL04-016/3 PU | 16 | 24 | 6.5 | 5.5 | 4.5 | PU |
| KL04-016/4 | 16 | 24 | 7.5 | 6.5 | 4.5 | NBR |
| KL04-016/4 PU | 16 | 24 | 7.5 | 6.5 | 4.5 | PU |
| KL04-016/5 | 16 | 23 | 6.5 | 5.5 | 4 | NBR |
| KL04-016/5 PU | 16 | 23 | 6.5 | 5.5 | 4 | PU |
| KL04-016/6 | 16 | 22 | 4.5 | 4 | 3.5 | NBR |
| KL04-016/9 | 16 | 24 | 6 | 5 | 4.5 | NBR |
| KL04-016/9 PU | 16 | 24 | 6 | 5 | 4.5 | PU |
| KL04-016/10 | 16 | 22 | 6 | 5 | 3.5 | NBR |
| KL04-016/10 PU | 16 | 22 | 6 | 5 | 3.5 | PU |
| KL04-018 | 18 | 24 | 6 | 5 | 3.5 | NBR |
| KL04-018 PU | 18 | 24 | 6 | 5 | 3.5 | PU |
| KL04-018/1 | 18 | 25 | 6 | 5 | 4 | NBR |
| KL04-018/1 PU | 18 | 25 | 6 | 5 | 4 | PU |
| KL04-018/2 | 18 | 25 | 6.5 | 5.5 | 4 | NBR |
| KL04-018/2 PU | 18 | 25 | 6.5 | 5.5 | 4 | PU |
| KL04-018/3 | 18 | 28 | 8 | 7 | 5.5 | NBR |
| KL04-018/3 PU | 18 | 28 | 8 | 7 | 5.5 | PU |
| KL04-018/4 | 18 | 22 | 3.5 | 3 | 2.5 | NBR |
| KL04-018/5 | 18 | 25 | 5 | 4.5 | 4 | NBR |
| KL04-018/5 PU | 18 | 25 | 5 | 4.5 | 4 | PU |
| KL04-018/7 | 18 | 26 | 6.5 | 5.5 | 4.5 | NBR |
| KL04-019 | 19.05 | 25.4 | 5.3 | 4.76 | 3.5 | NBR |
| KL04-019 PU | 19.05 | 25.4 | 5.3 | 4.76 | 3.5 | PU |
| KL04-020 | 20 | 30 | 7 | 6 | 5.5 | NBR |
| KL04-020 PU | 20 | 30 | 7 | 6 | 5.5 | PU |
| KL04-020/4 PU | 20 | 28 | 6.5 | 5.5 | 4.5 | PU |
| KL04-020/6 | 20 | 26 | 4 | 3.5 | 3.5 | NBR |
| KL04-020/6 PU | 20 | 26 | 4 | 3.5 | 3.5 | PU |
| KL04-020/7 | 20 | 30 | 9 | 8 | 5.5 | NBR |
| KL04-020/7 PU | 20 | 30 | 9 | 8 | 5.5 | PU |
| KL04-020/8 | 20 | 30 | 8 | 7 | 5.5 | NBR |
| KL04-020/8 PU | 20 | 30 | 8 | 7 | 5.5 | PU |
| KL04-020/9 | 20 | 30 | 8.5 | 7.5 | 5.5 | NBR |
| KL04-020/9 PU | 20 | 30 | 8.5 | 7.5 | 5.5 | PU |
| KL04-020/10 | 20 | 32 | 7 | 6 | 5.5 | NBR |
| KL04-020/10 PU | 20 | 32 | 7 | 6 | 5.5 | PU |
| KL04-020/11 | 20 | 32 | 8 | 7 | 5.5 | NBR |
| KL04-020/12 | 20.63 | 28.57 | 5.26 | 4.76 | 4.5 | NBR |
| KL04-020/12 PU | 20.63 | 28.57 | 5.26 | 4.76 | 4.5 | PU |
| KL04-020/14 | 20 | 28 | 4.5 | 4 | 4.5 | NBR |
| KL04-020/14 PU | 20 | 28 | 4.5 | 4 | 4.5 | PU |
| KL04-022 | 22 | 32 | 7 | 6 | 5.5 | NBR |
| KL04-022 PU | 22 | 32 | 7 | 6 | 5.5 | PU |
| KL04-022/1 | 22 | 30 | 9 | 8 | 4.5 | NBR |
| KL04-022/1 PU | 22 | 30 | 9 | 8 | 4.5 | PU |
| KL04-022/2 | 22 | 30 | 8 | 7 | 4.5 | NBR |
| KL04-022/2 PU | 22 | 30 | 8 | 7 | 4.5 | PU |
| KL04-022/3 | 22 | 30 | 6.5 | 5.5 | 4.5 | NBR |
| KL04-022/3 PU | 22 | 30 | 6.5 | 5.5 | 4.5 | PU |
| KL04-022/4 | 22.22 | 31.75 | 7.35 | 6.35 | 5.5 | NBR |
| KL04-022/4 PU | 22.22 | 31.75 | 7.35 | 6.35 | 5.5 | PU |
| KL04-022/6 | 22 | 29 | 6 | 5 | 4 | NBR |
| KL04-022/6 PU | 22 | 29 | 6 | 5 | 4 | PU |
| KL04-022/8 PU | 22 | 32 | 8.3 | 7.3 | 5.5 | PU |
| KL04-023 | 23 | 31 | 6.5 | 5.5 | 4.5 | NBR |
