KL06 NBR / PU / POM Heavy Duty Rod Seal For Mining Industry
product detail
Product Details
Material:
NBR / PU / POM
Temperature (max) °C:
-30/+100
Pressure (max) Bar:
400
Sliding Speed (max)- M/s:
0.5
Style:
Hydraulic Rod Seals
Application:
Marine Hydraulics / Scrap Metal Presses
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
KL06 Heavy Duty Rod Seal Is Designed For Working At Hydraulic Rod Applications At Variable Pressure Levels

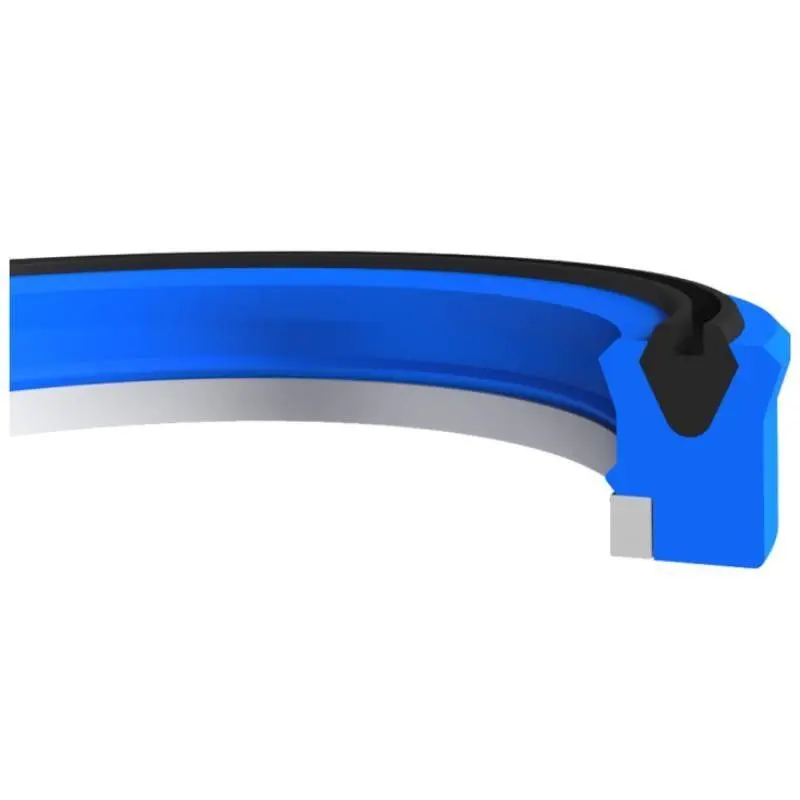

KL06 heavy duty rod seal is designed for working at hydraulic rod applicaitions consisting of special geometry polyurethane seal, elastomer ring that works as an energizer at low pressures and thermoplastic backup ring for superior extrusion resistance.
Advantages
• Superior static and dynamic sealing effect
• Design providing good sealing performance at svariable pressure levels.
• Improved sealing gap thanks to the back-up ring
• Safely operating with the elastomer o-ring in long duration locking systems
• High wear resistance and compressive strength
Area of Application
• Mining industry
• Iron and steel industry
• Scrap metal presses
• Mobile machinery
• Marine hydraulics

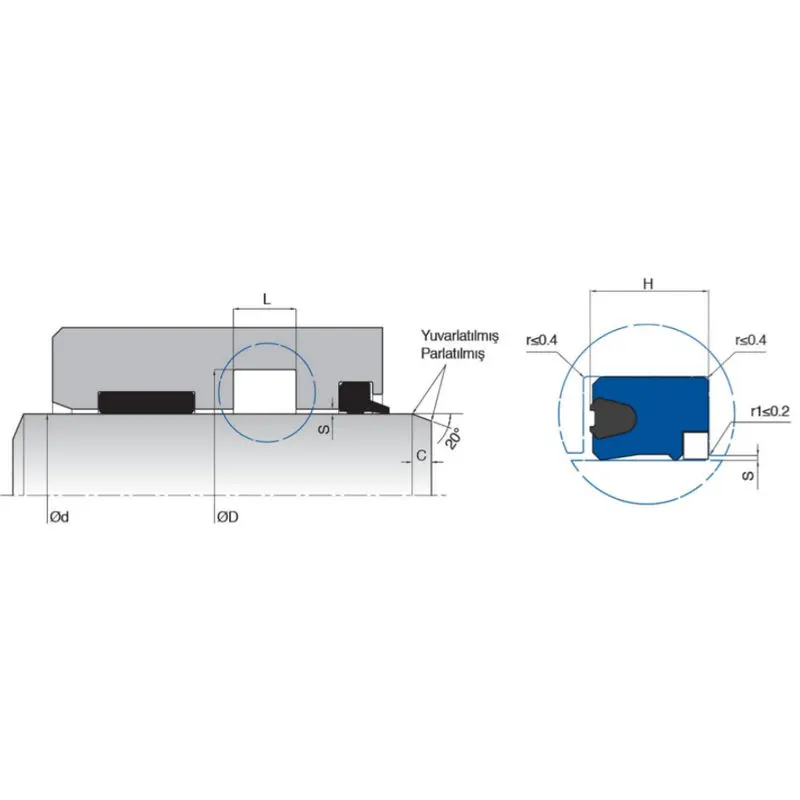

| d (f8) | D (H10) | L (+0.2/-0) | H | C | MATERIAL | |
| KL06-025 | 25 | 35 | 8.3 | 7.3 | 5.5 | PU |
| KL06-030 | 30 | 40 | 11 | 10 | 5.5 | PU |
| KL06-030/1 | 30 | 40 | 8.3 | 7.3 | 5.5 | PU |
| KL06-035 | 35 | 50 | 10.5 | 9.5 | 6 | PU |
| KL06-040 | 40 | 55 | 10.5 | 9.5 | 6 | PU |
| KL06-040/1 | 40 | 50 | 8.3 | 7.3 | 5.5 | PU |
| KL06-040/2 | 40 | 55 | 12.4 | 11.4 | 6 | PU |
| KL06-040/3 | 40 | 52 | 9.6 | 8.6 | 5.5 | PU |
| KL06-045 | 45 | 60 | 12.4 | 11.4 | 6 | PU |
| KL06-050 | 50 | 65 | 12.4 | 11.4 | 6 | PU |
| KL06-050/3 | 50 | 60 | 8.3 | 7.3 | 5.5 | PU |
| KL06-055 | 55 | 70 | 12.4 | 11.4 | 6 | PU |
| KL06-055/1 | 55 | 68 | 14 | 13 | 5.5 | PU |
| KL06-056 | 56 | 71 | 12.4 | 11.4 | 6 | PU |
| KL06-060 | 60 | 75 | 12.4 | 11.4 | 6 | PU |
| KL06-060/1 | 60 | 73 | 14 | 13 | 5.5 | PU |
| KL06-060/2 | 60 | 72 | 9.6 | 8.6 | 5.5 | PU |
| KL06-063/1 | 63 | 75 | 9.6 | 8.6 | 5.5 | PU |
| KL06-063/2 | 63 | 78 | 12.4 | 11.4 | 6 | PU |
| KL06-063/3 | 63.5 | 73.02 | 10.5 | 9.53 | 5.5 | PU |
| KL06-065 | 65 | 78 | 11 | 10 | 5.5 | PU |
| KL06-065/1 | 65 | 80 | 10 | 9 | 6 | PU |
| KL06-070 | 70 | 85 | 12.4 | 11.4 | 6 | PU |
| KL06-070/1 | 70 | 83 | 11 | 10 | 5.5 | PU |
| KL06-070/2 | 70 | 85 | 10 | 9 | 6 | PU |
| KL06-070/3 | 70 | 80 | 13 | 12 | 5.5 | PU |
| KL06-070/4 | 70 | 85 | 11 | 10 | 6 | PU |
| KL06-070/5 | 70 | 82 | 9.6 | 8.6 | 5.5 | PU |
| KL06-075 | 75 | 88 | 11 | 10 | 5.5 | PU |
| KL06-075/1 | 75 | 90 | 10 | 9 | 6 | PU |
| KL06-080 | 80 | 95 | 12.4 | 11.4 | 6 | PU |
| KL06-080/1 | 80 | 93 | 11 | 10 | 5.5 | PU |
| KL06-080/2 | 80 | 95 | 10 | 9 | 6 | PU |
| KL06-085 | 85 | 100 | 11 | 10 | 6 | PU |
| KL06-085/1 | 85 | 105 | 16 | 15 | 6.5 | PU |
| KL06-085/2 | 85 | 97 | 9.6 | 8.6 | 5.5 | PU |
| KL06-090 | 90 | 105 | 12.4 | 11.4 | 6 | PU |
| KL06-090/1 | 90 | 105 | 11 | 10 | 6 | PU |
| KL06-090/2 | 90 | 110 | 18 | 17 | 6.5 | PU |
| KL06-090/3 | 90 | 110 | 15.5 | 14.5 | 6.5 | PU |
| KL06-090/4 | 90 | 100 | 13 | 12 | 5.5 | PU |
| KL06-090/5 | 90 | 105 | 16 | 15 | 6 | PU |
| KL06-090/6 | 90 | 105 | 15.5 | 14.5 | 6 | PU |
| KL06-095 | 95 | 110 | 11 | 10 | 6 | PU |
| KL06-095/1 | 95 | 115 | 16 | 15 | 6.5 | PU |
| KL06-100 | 100 | 120 | 15.5 | 14.5 | 6.5 | PU |
| KL06-100/1 | 100 | 115 | 11 | 10 | 6 | PU |
| KL06-100/2 | 100 | 120 | 15 | 14 | 6.5 | PU |
| KL06-100/4 | 100 | 115 | 16 | 15 | 6 | PU |
| KL06-105 | 105 | 120 | 13 | 12 | 6 | PU |
| KL06-105/1 | 105 | 125 | 15.5 | 14.5 | 6.5 | PU |
| KL06-105/2 | 105 | 120 | 15.5 | 14.5 | 6 | PU |
| KL06-110 | 110 | 130 | 13 | 12 | 6.5 | PU |
| KL06-110/1 | 110 | 125 | 13 | 12 | 6 | PU |
| KL06-110/2 | 110 | 130 | 15.5 | 14.5 | 6.5 | PU |
| KL06-115 | 115 | 135 | 15.5 | 14.5 | 6.5 | PU |
| KL06-115/1 | 115 | 130 | 16 | 15 | 5.5 | PU |
| KL06-120 | 120 | 140 | 13 | 12 | 6.5 | PU |
| KL06-120/2 | 120 | 140 | 15.6 | 14.6 | 6.5 | PU |
| KL06-125 | 125 | 145 | 15.5 | 14.5 | 6.5 | PU |
| KL06-130 | 130 | 150 | 15.5 | 14.5 | 6.5 | PU |
| KL06-135 | 135 | 155 | 14.6 | 13.6 | 6.5 | PU |
| KL06-140 | 140 | 160 | 15.5 | 14.5 | 6.5 | PU |
| KL06-145 | 145 | 165 | 16 | 15 | 6.5 | PU |
| KL06-150 | 150 | 160 | 15.5 | 14.5 | 5.5 | PU |
| KL06-150/1 | 150 | 170 | 15.5 | 14.5 | 6.5 | PU |
| KL06-160 | 160 | 175 | 15.5 | 14.5 | 6 | PU |
| KL06-160/2 | 160 | 177 | 16 | 15 | 6 | PU |
| KL06-160/3 | 160 | 180 | 15.6 | 14.6 | 6.5 | PU |
| KL06-170 | 170 | 185 | 15.5 | 14.5 | 6 | PU |
| KL06-180 | 180 | 205 | 19.2 | 18.2 | 8 | PU |
| KL06-180/1 | 180 | 195 | 15.5 | 14.5 | 6 | PU |
| KL06-180/2 | 180 | 200 | 15.6 | 14.6 | 6.5 | PU |
| KL06-185 | 185 | 205 | 19.5 | 18.5 | 6.5 | PU |
| KL06-190 | 190 | 205 | 15.5 | 14.5 | 6 | PU |
| KL06-200 | 200 | 220 | 15.6 | 14.6 | 6.5 | PU |
| KL06-210 | 210 | 230 | 15.5 | 14.5 | 6.5 | PU |
| KL06-210/1 | 210 | 235 | 19 | 18 | 8 | PU |
| KL06-220 | 220 | 245 | 20 | 19 | 8 | PU |
| KL06-230 | 230 | 250 | 16 | 15 | 6.5 | PU |
| KL06-230/1 | 230 | 250 | 15.5 | 14.5 | 6.5 | PU |
| KL06-235 | 235 | 255 | 16 | 15 | 6.5 | PU |
| KL06-240 | 240 | 260 | 16 | 15 | 6.5 | PU |
| KL06-240/1 | 240 | 260 | 15.5 | 14.5 | 6.5 | PU |
| KL06-280 | 280 | 300 | 15.5 | 14.5 | 6.5 | PU |
| KL06-290 | 290 | 315 | 20 | 19 | 8 | PU |
| KL06-295 | 295 | 315 | 17.4 | 16.4 | 6.5 | PU |
| KL06-300 | 300 | 320 | 15.5 | 14.5 | 6.5 | PU |
| KL06-340 | 340 | 365 | 20 | 19 | 8 | PU |
