KL11 Single Acting Rod Seals Hydraulic Cylinder Rod Seals For Mobile Machinery
product detail
Product Details
Style:
Hydraulic Cylinder Rod Seals
Temperature (max) °C:
-30/+100
Pressure (max) Bar:
400
Material:
NBR / FABRIC NBR / POM
Sliding Speed (max)- M/s:
0.5
Application:
Industrial Cylinders / Mobile Machinery / Standard Hydraulic Cylinders
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

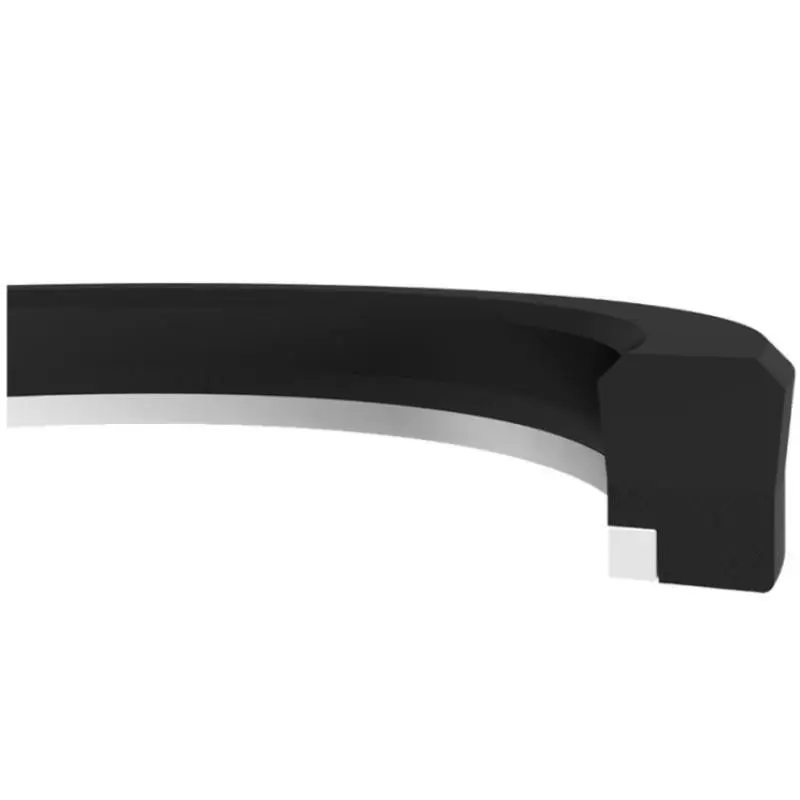

KL11 single acting hydraulic rod seal consists of fabric elastomer ring and thermoplastic extrusion ring.
Advantages
• Very good sealing at low pressures with high preloading and elastomer material
• High extrusion resistance due to the back-up ring
• High wear resistance
• Simple groove design
Area of Application
• Standard hydraulic cylinders
• Presses
• Mobile machinery
• Industrial cylinders

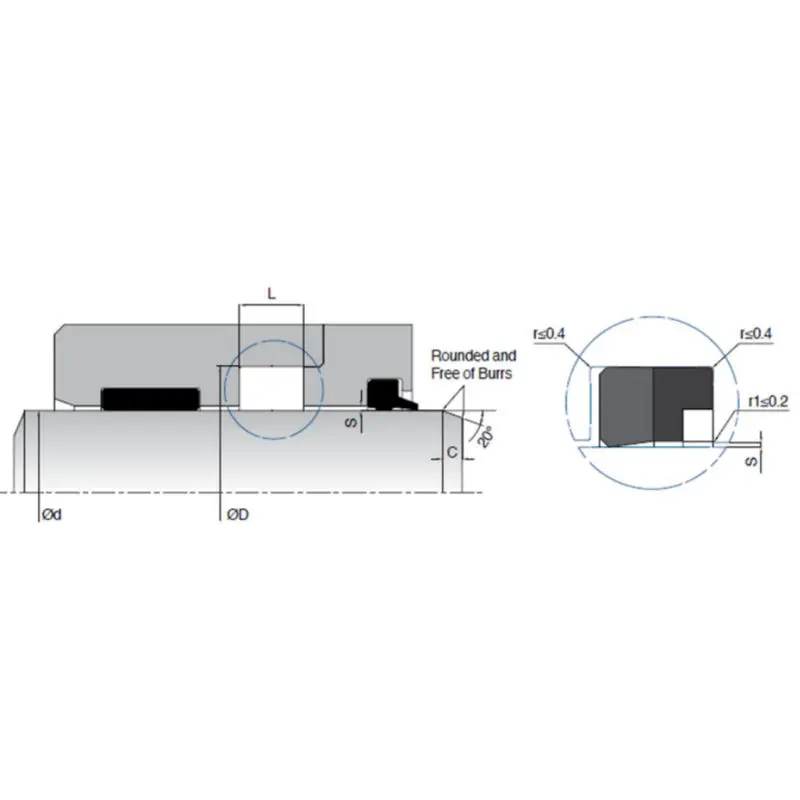

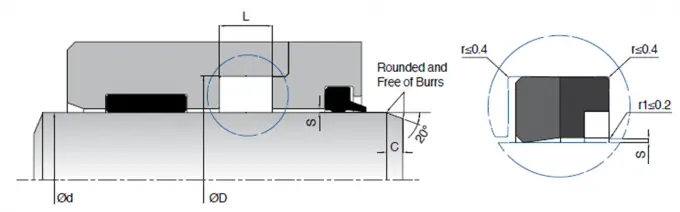

| d (f8) | D (H9) | L (+0.2/-0) | C | MATERIAL | |
| KL11-006 | 6 | 14 | 6.5 | 5 | NBR |
| KL11-012 | 12 | 23 | 7.5 | 5 | NBR |
| KL11-015 | 15 | 27 | 7 | 5 | NBR |
| KL11-016 | 16 | 28 | 7.5 | 5 | NBR |
| KL11-016/1 | 16 | 24 | 7 | 5 | NBR |
| KL11-018 | 18 | 26 | 6.4 | 5 | NBR |
| KL11-018/1 | 18 | 28 | 6.3 | 5 | NBR |
| KL11-018/2 | 18 | 30 | 7.5 | 5 | NBR |
| KL11-020 | 20 | 30 | 8 | 5 | NBR |
| KL11-020/1 | 20 | 27 | 6 | 5 | NBR |
| KL11-020/2 | 20 | 28 | 6.3 | 5 | NBR |
| KL11-020/3 | 20 | 28 | 7 | 5 | NBR |
| KL11-020/4 | 20 | 30 | 8.5 | 5 | NBR |
| KL11-020/5 | 20 | 28 | 5.6 | 5 | NBR |
| KL11-022 | 22 | 32 | 7.5 | 5 | NBR |
| KL11-022/1 | 22 | 29 | 5 | 5 | NBR |
| KL11-022/2 | 22 | 30 | 7 | 5 | NBR |
| KL11-022/3 | 22 | 32 | 10 | 5 | NBR |
| KL11-022/4 | 22 | 34 | 9.5 | 5 | NBR |
| KL11-022/5 | 22 | 35 | 10 | 5 | NBR |
| KL11-025 | 25 | 38 | 9.5 | 5 | NBR |
| KL11-025/1 | 25 | 33 | 6 | 5 | NBR |
| KL11-025/2 | 25 | 35 | 8 | 5 | NBR |
| KL11-025/3 | 25 | 33 | 6.4 | 5 | NBR |
| KL11-025/4 | 25 | 35 | 9 | 5 | NBR |
| KL11-025/5 | 25 | 38 | 10 | 5 | NBR |
| KL11-025/6 | 25.4 | 38.1 | 10 | 5 | NBR |
| KL11-025/7 | 25 | 33 | 7 | 5 | NBR |
| KL11-028 | 28 | 38 | 8 | 5 | NBR |
| KL11-028/1 | 28 | 41 | 9.5 | 5 | NBR |
| KL11-028/2 | 28 | 36 | 6.4 | 5 | NBR |
| KL11-028/3 | 28 | 40 | 9.5 | 5 | NBR |
| KL11-028/4 | 28 | 41 | 10 | 5 | NBR |
| KL11-028/5 | 28.57 | 39.68 | 9.5 | 5 | NBR |
| KL11-030 | 30 | 40 | 10.5 | 5 | NBR |
| KL11-030/1 | 30 | 38 | 6.5 | 5 | NBR |
| KL11-030/2 | 30 | 40 | 7 | 5 | NBR |
| KL11-030/3 | 30 | 40 | 7.5 | 5 | NBR |
| KL11-030/4 | 30 | 45 | 9 | 5 | NBR |
| KL11-030/5 | 30 | 50 | 14.5 | 5 | NBR |
| KL11-031 | 31.75 | 47.62 | 11.7 | 5 | NBR |
| KL11-032 | 32 | 40 | 9 | 5 | NBR |
| KL11-032/1 | 32 | 42 | 11 | 5 | NBR |
| KL11-032/2 | 32 | 45 | 10 | 5 | NBR |
| KL11-032/3 | 32 | 40 | 5 | 5 | NBR |
| KL11-032/4 | 32 | 40 | 8.5 | 5 | NBR |
| KL11-034 | 34.92 | 50.8 | 8.6 | 5 | NBR |
| KL11-035 | 35 | 45 | 10.5 | 5 | NBR |
| KL11-035/1 | 35 | 50 | 10.5 | 5 | NBR |
| KL11-035/2 | 35 | 45 | 10 | 5 | NBR |
| KL11-035/3 | 35 | 50 | 11.5 | 5 | NBR |
| KL11-035/4 | 35 | 43 | 6 | 5 | NBR |
| KL11-036 | 36 | 43 | 6.5 | 5 | NBR |
| KL11-036/1 | 36 | 44 | 6.4 | 5 | NBR |
| KL11-036/2 | 36 | 46 | 8.5 | 5 | NBR |
| KL11-036/3 | 36 | 48 | 12 | 5 | NBR |
| KL11-036/4 | 36 | 48 | 9.5 | 5 | NBR |
| KL11-038 | 38 | 55 | 10.5 | 5 | NBR |
| KL11-038/1 | 38.1 | 50.8 | 10 | 5 | NBR |
| KL11-038/2 | 38.1 | 53.97 | 10.5 | 5 | NBR |
| KL11-040 | 40 | 50 | 10.5 | 5 | NBR |
| KL11-040/1 | 40 | 55 | 10.5 | 5 | NBR |
| KL11-040/2 | 40 | 50 | 11 | 5 | NBR |
| KL11-040/3 | 40 | 48 | 6.5 | 5 | NBR |
| KL11-040/4 | 40 | 55 | 11 | 5 | NBR |
| KL11-040/5 | 40 | 50 | 10 | 5 | NBR |
| KL11-040/6 | 40 | 50 | 8 | 5 | NBR |
| KL11-040/7 | 40 | 55 | 8 | 5 | NBR |
| KL11-040/8 | 40 | 60 | 14.5 | 5 | NBR |
| KL11-040/9 | 40 | 52 | 12 | 5 | NBR |
| KL11-042 | 42 | 52 | 9 | 5 | NBR |
| KL11-044 | 44.5 | 53.97 | 7 | 5 | NBR |
| KL11-044/1 | 44.5 | 53.97 | 7.5 | 5 | NBR |
| KL11-044/2 | 44.5 | 60.32 | 11.7 | 5 | NBR |
| KL11-045 | 45 | 55 | 10.5 | 5 | NBR |
| KL11-045/1 | 45 | 60 | 10.5 | 5 | NBR |
| KL11-045/2 | 45 | 55 | 11 | 5 | NBR |
| KL11-045/3 | 45 | 55 | 8 | 5 | NBR |
| KL11-045/4 | 45 | 55 | 7.5 | 5 | NBR |
| KL11-045/5 | 45 | 57 | 10 | 5 | NBR |
| KL11-045/6 | 45 | 65 | 14.5 | 5 | NBR |
| KL11-045/7 | 45 | 53 | 8.5 | 5 | NBR |
| KL11-045/8 | 45 | 60 | 10 | 5 | NBR |
| KL11-050 | 50 | 65 | 10.5 | 5 | NBR |
| KL11-050/1 | 50 | 62 | 10 | 5 | NBR |
| KL11-050/2 | 50 | 60 | 10.5 | 5 | NBR |
| KL11-050/3 | 50 | 60 | 10 | 5 | NBR |
| KL11-050/4 | 50 | 65 | 11 | 5 | NBR |
| KL11-050/5 | 50 | 62 | 8 | 5 | NBR |
| KL11-050/6 | 50 | 70 | 14 | 5 | NBR |
| KL11-050/7 | 50 | 60 | 7.5 | 5 | NBR |
| KL11-050/8 | 50 | 60 | 8 | 5 | NBR |
| KL11-050/9 | 50 | 70 | 14.5 | 5 | NBR |
| KL11-050/10 | 50 | 63 | 12 | 5 | NBR |
| KL11-054 | 54 | 66 | 9.5 | 5 | NBR |
| KL11-055 | 55 | 65 | 10.5 | 5 | NBR |
| KL11-055/1 | 55 | 65 | 12 | 5 | NBR |
| KL11-055/2 | 55 | 65 | 11 | 5 | NBR |
| KL11-055/3 | 55 | 75 | 14 | 5 | NBR |
| KL11-055/4 | 55 | 65 | 8 | 5 | NBR |
| KL11-055/5 | 55 | 70 | 10.5 | 5 | NBR |
| KL11-055/6 | 55 | 75 | 14.5 | 5 | NBR |
| KL11-056 | 56 | 66 | 10.5 | 5 | NBR |
| KL11-056/1 | 56 | 71 | 10.5 | 5 | NBR |
| KL11-056/2 | 56 | 76 | 14.5 | 5 | NBR |
| KL11-057 | 57.15 | 69.85 | 10 | 5 | NBR |
| KL11-060 | 60 | 70 | 10.5 | 5 | NBR |
| KL11-060/1 | 60 | 70 | 12.5 | 5 | NBR |
| KL11-060/2 | 60 | 80 | 14 | 5 | NBR |
| KL11-060/3 | 60 | 75 | 13 | 5 | NBR |
| KL11-060/4 | 60 | 75 | 12.5 | 5 | NBR |
| KL11-060/5 | 60 | 69 | 7 | 5 | NBR |
| KL11-060/6 | 60 | 70 | 11 | 5 | NBR |
| KL11-060/7 | 60 | 70 | 8 | 5 | NBR |
| KL11-060/8 | 60 | 70 | 13 | 5 | NBR |
| KL11-060/9 | 60 | 72 | 10 | 5 | NBR |
| KL11-060/11 | 60 | 80 | 14.5 | 5 | NBR |
| KL11-060/12 | 60 | 75 | 8 | 5 | NBR |
| KL11-063 | 63 | 71 | 9 | 5 | NBR |
| KL11-063/1 | 63 | 75 | 11 | 5 | NBR |
| KL11-063/2 | 63 | 78 | 12.5 | 5 | NBR |
| KL11-063/3 | 63 | 83 | 14.5 | 5 | NBR |
| KL11-063/4 | 63.5 | 82.55 | 14.5 | 5 | NBR |
| KL11-063/5 | 63.5 | 76.2 | 8.5 | 5 | NBR |
| KL11-063/6 | 63.5 | 77.78 | 11.6 | 5 | NBR |
| KL11-065 | 65 | 80 | 12.5 | 5 | NBR |
| KL11-065/1 | 65 | 75 | 12.5 | 5 | NBR |
| KL11-065/2 | 65 | 75 | 13.5 | 5 | NBR |
| KL11-065/3 | 65 | 77 | 9.6 | 5 | NBR |
| KL11-065/4 | 65 | 80 | 11.5 | 5 | NBR |
| KL11-070 | 70 | 80 | 12.5 | 5 | NBR |
| KL11-070/1 | 70 | 85 | 12 | 5 | NBR |
| KL11-070/2 | 70 | 85 | 12.5 | 5 | NBR |
| KL11-070/3 | 70 | 90 | 14 | 5 | NBR |
| KL11-070/4 | 70 | 80 | 8 | 5 | NBR |
| KL11-070/5 | 70 | 80 | 13 | 5 | NBR |
| KL11-070/6 | 70 | 82 | 10.5 | 5 | NBR |
| KL11-070/7 | 70 | 84 | 12.5 | 5 | NBR |
| KL11-070/8 | 70 | 90 | 12 | 5 | NBR |
| KL11-075 | 75 | 85 | 12.5 | 5 | NBR |
| KL11-075/1 | 75 | 90 | 11 | 5 | NBR |
| KL11-075/2 | 75 | 85 | 11 | 5 | NBR |
| KL11-075/3 | 75 | 90 | 11.5 | 5 | NBR |
| KL11-075/4 | 75 | 90 | 12.8 | 5 | NBR |
| KL11-075/5 | 75 | 95 | 14.5 | 5 | NBR |
| KL11-075/6 | 75 | 88 | 12.5 | 5 | NBR |
| KL11-075/7 | 75 | 90 | 8 | 5 | NBR |
| KL11-080 | 80 | 90 | 12.5 | 5 | NBR |
| KL11-080/1 | 80 | 100 | 12.5 | 5 | NBR |
| KL11-080/2 | 80 | 100 | 14 | 5 | NBR |
| KL11-080/3 | 80 | 95 | 12 | 5 | NBR |
| KL11-080/4 | 80 | 93 | 14.5 | 5 | NBR |
| KL11-080/5 | 80 | 96 | 10.5 | 5 | NBR |
| KL11-080/6 | 80 | 100 | 12 | 5 | NBR |
| KL11-080/7 | 80 | 100 | 14.5 | 5 | NBR |
| KL11-080/8 | 80 | 95 | 10 | 5 | NBR |
| KL11-085 | 85 | 100 | 12.5 | 5 | NBR |
| KL11-085/1 | 85 | 95 | 8 | 5 | NBR |
| KL11-085/2 | 85 | 100 | 12 | 5 | NBR |
| KL11-085/3 | 85 | 105 | 14.5 | 5 | NBR |
| KL11-088 | 88.9 | 114.3 | 19.7 | 5 | NBR |
| KL11-090 | 90 | 105 | 12.5 | 5 | NBR |
| KL11-090/1 | 90 | 110 | 12.5 | 5 | NBR |
| KL11-090/2 | 90 | 105 | 9.5 | 5 | NBR |
| KL11-090/4 | 90 | 106.2 | 11 | 5 | NBR |
| KL11-095 | 95 | 105 | 11 | 5 | NBR |
| KL11-095/1 | 95 | 112 | 12 | 5 | NBR |
| KL11-095/2 | 95 | 115 | 14.5 | 5 | NBR |
| KL11-095/3 | 95 | 110 | 12 | 5 | NBR |
| KL11-095/4 | 95 | 115 | 12 | 5 | NBR |
| KL11-095/5 | 95 | 107 | 12.5 | 5 | NBR |
| KL11-100 | 100 | 115 | 12.5 | 7 | NBR |
| KL11-100/1 | 100 | 120 | 14 | 7 | NBR |
| KL11-100/2 | 100 | 125 | 20 | 7 | NBR |
| KL11-100/3 | 100 | 120 | 24.5 | 7 | NBR |
| KL11-100/4 | 100 | 115 | 11.5 | 7 | NBR |
| KL11-100/5 | 100 | 120 | 12 | 7 | NBR |
| KL11-100/6 | 100 | 120 | 14.5 | 7 | NBR |
| KL11-100/7 | 100 | 113 | 13.5 | 7 | NBR |
| KL11-105 | 105 | 115 | 11 | 7 | NBR |
| KL11-105/1 | 105 | 125 | 12.5 | 7 | NBR |
| KL11-110 | 110 | 130 | 12.5 | 7 | NBR |
| KL11-110/1 | 110 | 125 | 12 | 7 | NBR |
| KL11-110/2 | 110 | 135 | 15.5 | 7 | NBR |
| KL11-115 | 115 | 135 | 16 | 7 | NBR |
| KL11-120 | 120 | 130 | 10.5 | 7 | NBR |
| KL11-120/1 | 120 | 132.7 | 10 | 7 | NBR |
| KL11-120/2 | 120 | 135 | 12.5 | 7 | NBR |
| KL11-120/3 | 120 | 140 | 12.5 | 7 | NBR |
| KL11-120/4 | 120 | 145 | 18.8 | 7 | NBR |
| KL11-125 | 125 | 150 | 14 | 7 | NBR |
| KL11-125/1 | 125 | 150 | 14.5 | 7 | NBR |
| KL11-130 | 130 | 145 | 13 | 7 | NBR |
| KL11-130/1 | 130 | 145 | 15 | 7 | NBR |
| KL11-130/2 | 130 | 150 | 16 | 7 | NBR |
| KL11-135 | 135 | 150 | 14 | 7 | NBR |
| KL11-135/1 | 135 | 160 | 14 | 7 | NBR |
| KL11-140 | 140 | 160 | 12 | 7 | NBR |
| KL11-140/1 | 140 | 155 | 13 | 7 | NBR |
| KL11-140/2 | 140 | 160 | 14.5 | 7 | NBR |
| KL11-140/3 | 140 | 160 | 12.5 | 7 | NBR |
| KL11-140/4 | 140 | 170 | 22.8 | 7 | NBR |
| KL11-145 | 145 | 157.7 | 10 | 7 | NBR |
| KL11-150 | 150 | 170 | 14 | 7 | NBR |
| KL11-150/1 | 150 | 170 | 14.5 | 7 | NBR |
| KL11-160 | 160 | 175 | 16 | 7 | NBR |
| KL11-160/1 | 160 | 180 | 14.5 | 7 | NBR |
| KL11-175 | 175 | 200 | 23 | 7 | NBR |
| KL11-180 | 180 | 200 | 14.5 | 7 | NBR |
| KL11-180/1 | 180 | 210 | 20.5 | 7 | NBR |
| KL11-190 | 190 | 210 | 14.5 | 7 | NBR |
| KL11-198 | 198 | 208 | 12 | 7 | NBR |
| KL11-200 | 200 | 220 | 14.5 | 10 | NBR |
| KL11-210 | 210 | 240 | 22.5 | 10 | NBR |
| KL11-220 | 220 | 250 | 20.5 | 10 | NBR |
| KL11-230 | 230 | 260 | 20.5 | 10 | NBR |
