KL24 Single Acting Piston Rod Seals Hydraulic Symmetrical Design
product detail
Product Details
Style:
Single Acting Piston Rod Seals
Material:
NBR / PU
Pressure (max) Bar:
400
Temperature (max) °C:
-30/+100
Sliding Speed (max)- M/s:
0.5
Application:
Mobile Machinery / Mining Industry
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

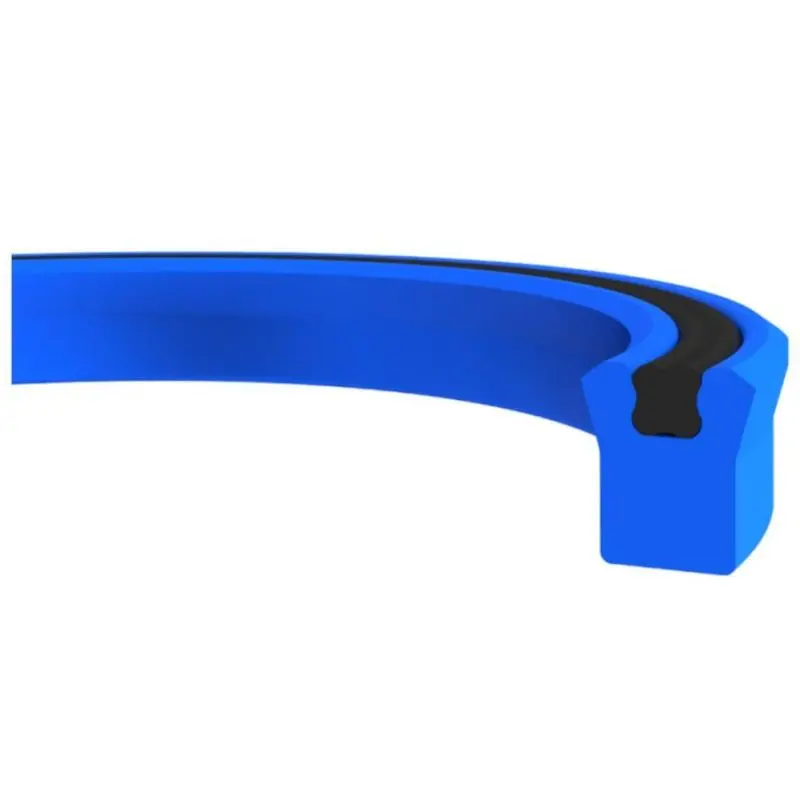

KL24 piston-rod seal is a single acting sealing element which is able to work both at piston and rod applications thanks to symetrical design.
Advantages
• Superior static and dynamic sealing performance
• Low leakage under variable pressure levels
• High and sustainable preload due to x-ring
• High abrasion resistance
Area of Application
• Mining industry
• Iron and steel industry
• Scrap metal presses
• Mobile machinery
• Marine hydraulics

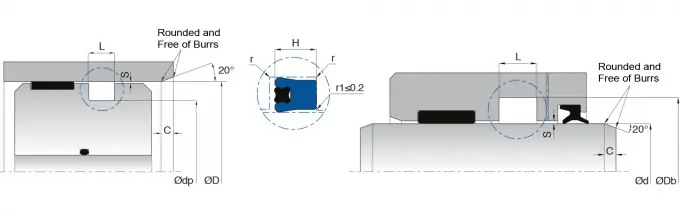

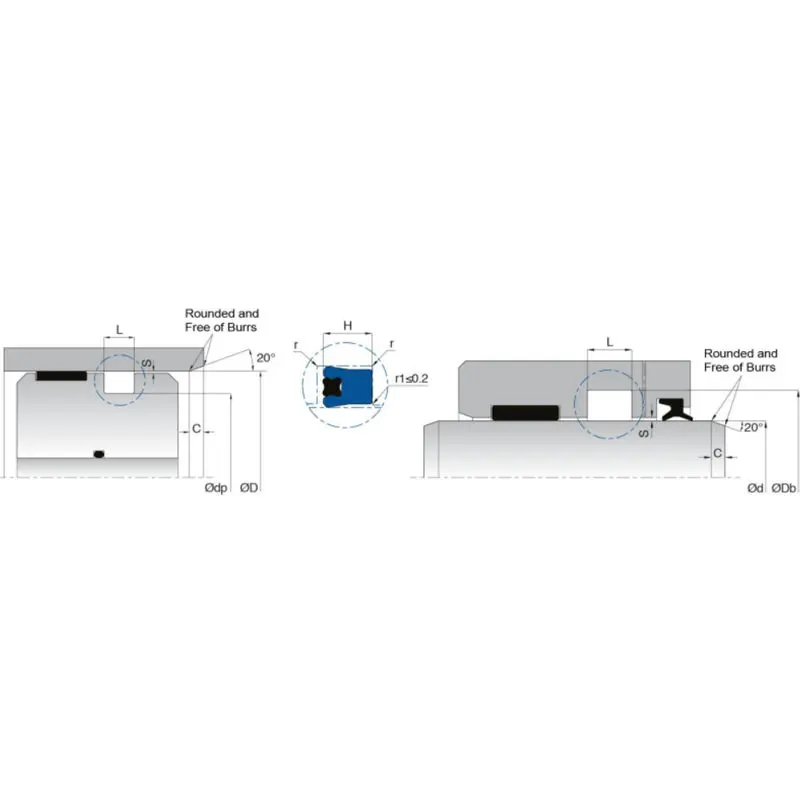

| d(f8) dp(h9) | Db(H10) D(H10) | L (+0.2/-0) | H | r | C | MATERIAL | |
| KL24-030 | 30 | 40 | 7 | 6 | 0.2 | 5.5 | PU |
| KL24-035 | 35 | 45 | 7 | 6 | 0.2 | 5.5 | PU |
| KL24-040 | 40 | 50 | 7 | 6 | 0.2 | 5.5 | PU |
| KL24-045 | 45 | 60 | 11 | 10 | 0.4 | 6 | PU |
| KL24-045/1 | 45 | 55 | 7 | 6 | 0.2 | 5.5 | PU |
| KL24-050 | 50 | 60 | 7 | 6 | 0.2 | 5.5 | PU |
| KL24-050/1 | 50 | 60 | 11 | 10 | 0.2 | 5.5 | PU |
| KL24-053 | 53 | 63 | 7 | 6 | 0.2 | 5.5 | PU |
| KL24-055 | 55 | 65 | 7 | 6 | 0.2 | 5.5 | PU |
| KL24-060 | 60 | 70 | 7 | 6 | 0.2 | 5.5 | PU |
| KL24-065 | 65 | 75 | 7 | 6 | 0.2 | 5.5 | PU |
| KL24-070 | 70 | 80 | 7 | 6 | 0.2 | 5.5 | PU |
| KL24-075 | 75 | 85 | 7 | 6 | 0.2 | 5.5 | PU |
| KL24-080 | 80 | 90 | 7 | 6 | 0.2 | 5.5 | PU |
| KL24-085 | 85 | 100 | 9 | 7 | 0.4 | 6 | PU |
| KL24-165 | 165 | 180 | 9 | 7 | 0.4 | 6 | PU |
