KL49 Hydraulic Piston Seal Types PTFE / NBR High Pressure Piston Seals
product detail
Product Details
Material:
PTFE / NBR
Pressure (max) Bar:
400
Temperature (max) °C:
-30/+105
Sliding Speed (max)- M/s:
15.0
Style:
Hydraulic Piston Seals
Application:
Iron And Steel Industry
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

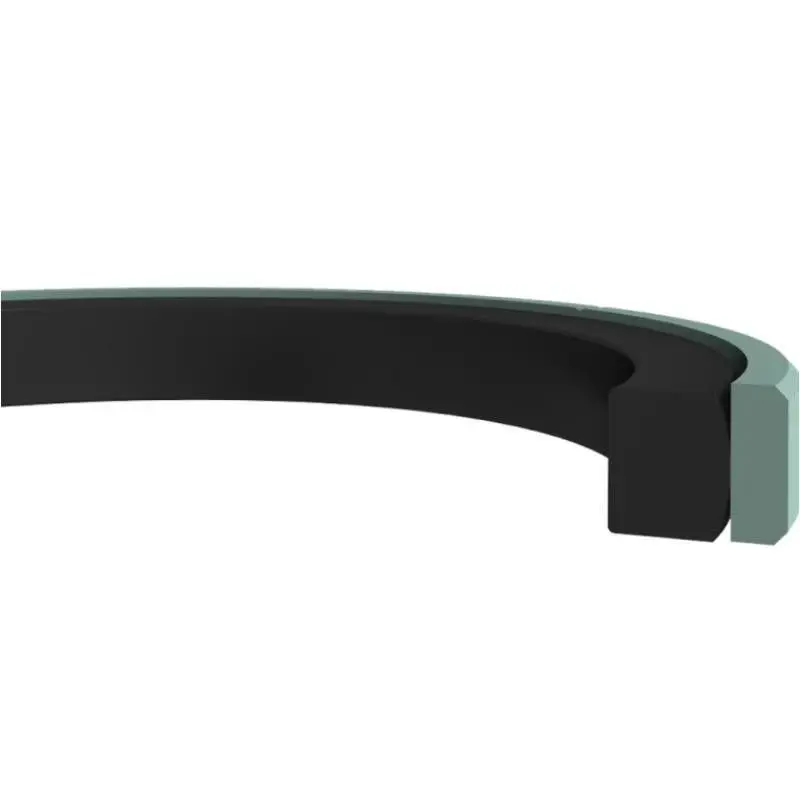

KL49 is double acting piston seal consists of PTFE sealing ring and a profile ring as an energizer. Specially designed for heavy duty applications, KL49 rod seal offers high extrusion resistance and superior sealing performance.
Advantages
• Low friction and stick-slip free
• High pressure resistance
• No twisting in the housing
• Suitable design for heavy duty cylinders with large diameters
• Good dynamic and static sealing
• Long service life
• High extrusion resistance
Area of Application
• Iron and steel industry
• Hydraulic press cylinders
• Large diameter cylinders
• Injection moulding machines
• Marine hydraulics

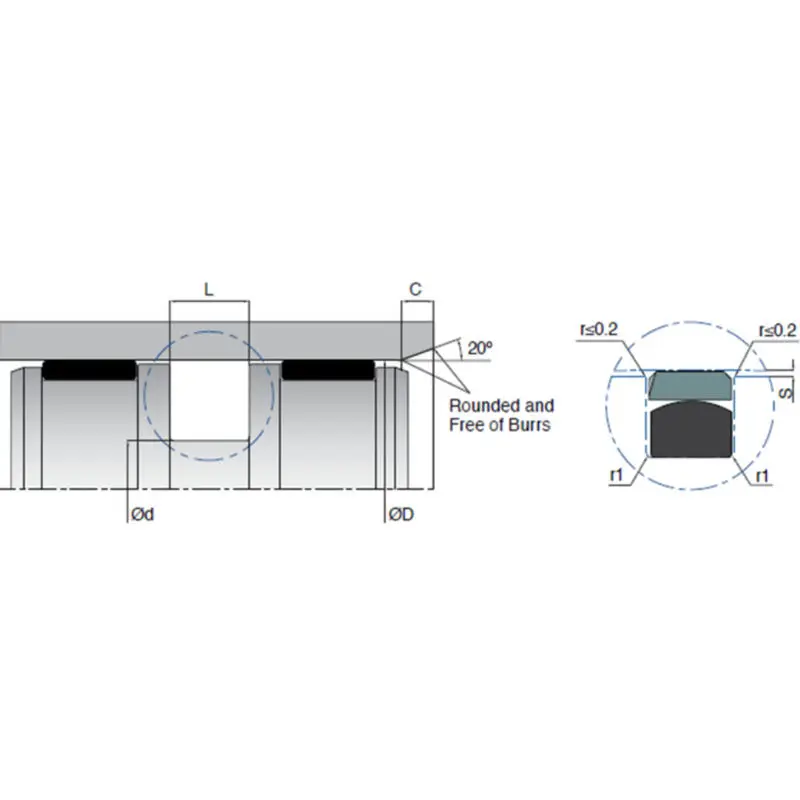

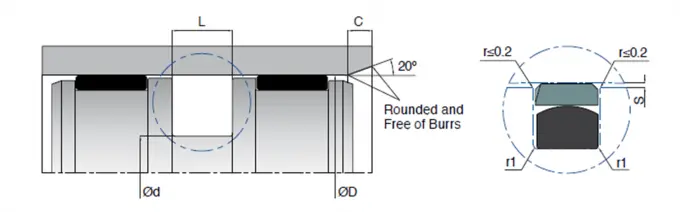

| D (H8) | d (h8) | L (+0.2/-0) | r1 | C | MATERIAL | |
| KL49 200-175 | 200 | 175 | 12.5 | 0.4 | 10 | PTFE |
| KL49 220-195 | 220 | 195 | 12.5 | 0.4 | 10 | PTFE |
| KL49 225-200 | 225 | 200 | 12.5 | 0.4 | 10 | PTFE |
| KL49 240-215 | 240 | 215 | 12.5 | 0.4 | 10 | PTFE |
| KL49 250-220 | 250 | 220 | 15 | 0.8 | 12 | PTFE |
| KL49 260-230 | 260 | 230 | 15 | 0.8 | 12 | PTFE |
| KL49 320-290 | 320 | 290 | 15 | 0.8 | 12 | PTFE |
| KL49 325-295 | 325 | 295 | 15 | 0.8 | 12 | PTFE |
| KL49 327.5-297.5 | 327.5 | 297.5 | 15 | 0.8 | 12 | PTFE |
| KL49 340-310 | 340 | 310 | 15 | 0.8 | 12 | PTFE |
| KL49 355-325 | 355 | 325 | 15 | 0.8 | 12 | PTFE |
| KL49 360-330 | 360 | 330 | 15 | 0.8 | 12 | PTFE |
| KL49 430-400 | 430 | 400 | 15 | 0.8 | 12 | PTFE |
| KL49 490-460 | 490 | 460 | 15 | 0.8 | 12 | PTFE |
| KL49 540-505 | 540 | 505 | 17.5 | 1.2 | 12 | PTFE |
| KL49 590-555 | 590 | 555 | 17.5 | 1.2 | 12 | PTFE |
