KL61 Piston Rod Guide Ring Composite Guiding Elements
product detail
Product Details
Name:
Rod Guide Ring
Material:
Phenolics Aramid
Temperature (max) °C:
-40/+200
Sliding Speed (max)- M/s:
1.0
Style:
Hydraulic Guiding Elements
Application:
Iron And Steel Industry / Heavy Duty Cylinders
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

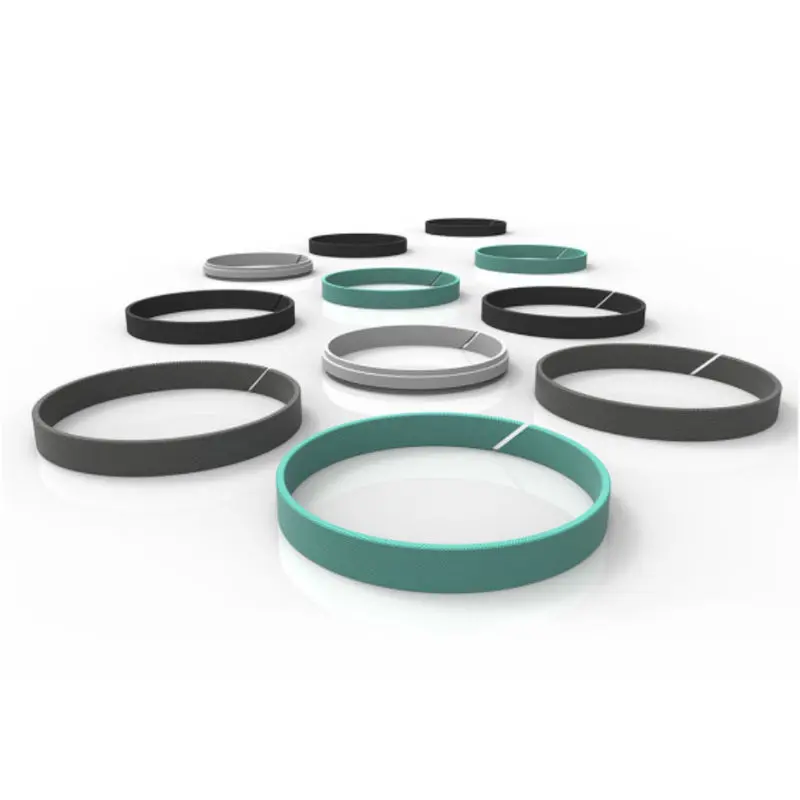

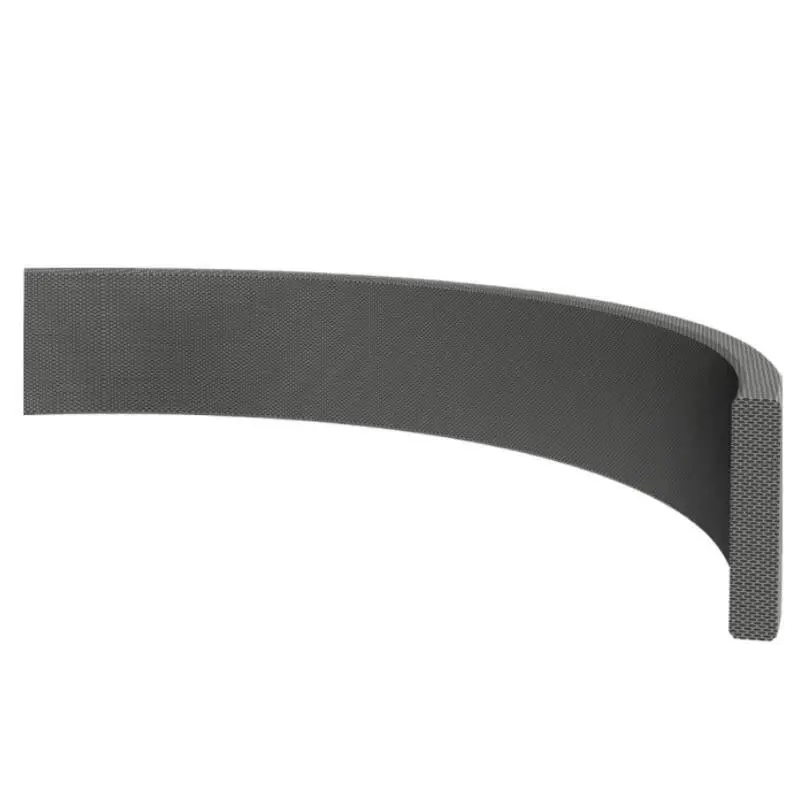

KL61 piston-rod guide rings are composite guiding elements, produced from aramid fabric and phenolic resin which provides high load carrying capacity designed to be used in rod and piston applications in hydraulic systems. Compared to regular composite guide rings, KL61 has a higher temperature resistance due to Aramid fabric.
Advantages
• Operating at high temperature
• The high form stability at operating temperature range
• Easy installation
• Wide range of dimensions
• Can be used in heavy and medium duty applications
Area of Application
• Iron and steel industry
• Mobile machinery
• Heavy duty cylinders

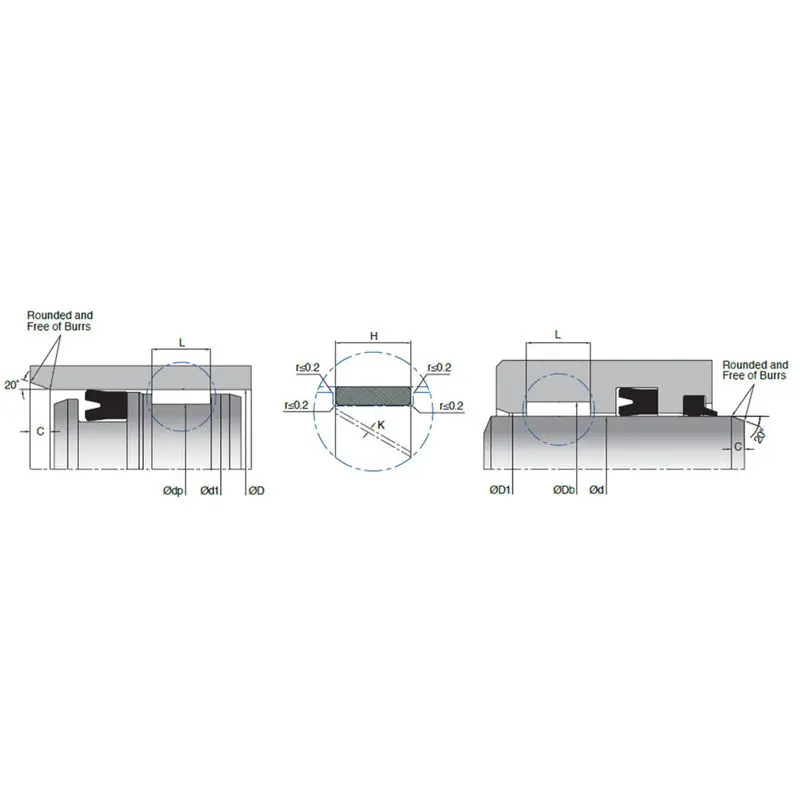

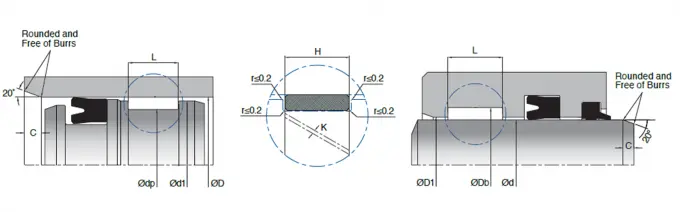

| d(f8) dp(h8) | Db(H8) D(H9) | L (+0.2/-0) | H | d1 (h9) | D1 (H9) | MATERIAL | |
| KL61-040 | 40 | 45 | 9.7 | 9.5 | 43.2 | 41.8 | PHENOLICS ARAMID |
| KL61-050 | 50 | 55 | 9.7 | 9.5 | 53.2 | 51.8 | PHENOLICS ARAMID |
| KL61-050/1 | 50 | 55 | 15 | 14.8 | 53.2 | 51.8 | PHENOLICS ARAMID |
| KL61-055 | 55 | 60 | 15 | 14.8 | 58.2 | 56.8 | PHENOLICS ARAMID |
| KL61-055/1 | 55 | 60 | 9.7 | 9.5 | 58.2 | 56.8 | PHENOLICS ARAMID |
| KL61-058 | 58 | 63 | 9.7 | 9.5 | 61.2 | 59.8 | PHENOLICS ARAMID |
| KL61-060 | 60 | 65 | 15 | 14.8 | 63.2 | 61.8 | PHENOLICS ARAMID |
| KL61-060/1 | 60 | 65 | 9.7 | 9.5 | 63.2 | 61.8 | PHENOLICS ARAMID |
| KL61-063 | 63 | 68 | 9.7 | d | 66.2 | 64.8 | PHENOLICS ARAMID |
| KL61-063/1 | 63 | 68 | 15 | 14.8 | 66.2 | 64.8 | PHENOLICS ARAMID |
| KL61-065 | 65 | 70 | 15 | 14.8 | 68.2 | 66.8 | PHENOLICS ARAMID |
| KL61-065/1 | 65 | 70 | 9.7 | 9.5 | 68.2 | 66.8 | PHENOLICS ARAMID |
| KL61-070 | 70 | 75 | 9.7 | 9.5 | 73.2 | 71.8 | PHENOLICS ARAMID |
| KL61-070/1 | 70 | 75 | 15 | 14.8 | 73.2 | 71.8 | PHENOLICS ARAMID |
| KL61-075 | 75 | 80 | 9.7 | 9.5 | 78.2 | 76.8 | PHENOLICS ARAMID |
| KL61-075/1 | 75 | 80 | 15 | 14.8 | 78.2 | 76.8 | PHENOLICS ARAMID |
| KL61-080 | 80 | 85 | 9.7 | 9.5 | 83.2 | 81.8 | PHENOLICS ARAMID |
| KL61-080/1 | 80 | 85 | 15 | 14.8 | 83.2 | 81.8 | PHENOLICS ARAMID |
| KL61-085 | 85 | 90 | 9.7 | 9.5 | 88.2 | 86.8 | PHENOLICS ARAMID |
| KL61-085/1 | 85 | 90 | 15 | 14.8 | 88.2 | 86.8 | PHENOLICS ARAMID |
| KL61-090 | 90 | 95 | 15 | 14.8 | 93.2 | 91.8 | PHENOLICS ARAMID |
| KL61-090/1 | 90 | 95 | 9.7 | 9.5 | 93.2 | 91.8 | PHENOLICS ARAMID |
| KL61-095 | 95 | 100 | 9.7 | 9.5 | 98.2 | 96.8 | PHENOLICS ARAMID |
| KL61-095/1 | 95 | 100 | 15 | 14.8 | 98.2 | 96.8 | PHENOLICS ARAMID |
| KL61-100 | 100 | 105 | 15 | 14.8 | 103.2 | 101.8 | PHENOLICS ARAMID |
| KL61-100/1 | 100 | 105 | 9.7 | 9.5 | 103.2 | 101.8 | PHENOLICS ARAMID |
| KL61-105 | 105 | 110 | 9.7 | 9.5 | 108.2 | 106.8 | PHENOLICS ARAMID |
| KL61-105/1 | 105 | 110 | 15 | 14.8 | 108.2 | 106.8 | PHENOLICS ARAMID |
| KL61-110 | 110 | 115 | 9.7 | 9.5 | 113.2 | 111.8 | PHENOLICS ARAMID |
| KL61-110/1 | 110 | 115 | 15 | 14.8 | 113.2 | 111.8 | PHENOLICS ARAMID |
| KL61-110/2 | 110 | 115 | 8.1 | 7.9 | 113.2 | 111.8 | PHENOLICS ARAMID |
| KL61-115 | 115 | 120 | 9.7 | 9.5 | 118.2 | 116.8 | PHENOLICS ARAMID |
| KL61-115/1 | 115 | 120 | 15 | 14.8 | 118.2 | 116.8 | PHENOLICS ARAMID |
| KL61-115/2 | 115 | 120 | 8.1 | 7.9 | 118.2 | 116.8 | PHENOLICS ARAMID |
| KL61-120 | 120 | 125 | 9.7 | 9.5 | 123.2 | 121.8 | PHENOLICS ARAMID |
| KL61-120/1 | 120 | 125 | 15 | 14.8 | 123.2 | 121.8 | PHENOLICS ARAMID |
| KL61-120/2 | 120 | 125 | 8.1 | 7.9 | 123.2 | 121.8 | PHENOLICS ARAMID |
| KL61-125 | 125 | 130 | 9.7 | 9.5 | 128.2 | 126.8 | PHENOLICS ARAMID |
| KL61-125/1 | 125 | 130 | 15 | 14.8 | 128.2 | 126.8 | PHENOLICS ARAMID |
| KL61-125/3 | 125 | 130 | 14.2 | 14 | 128.2 | 126.8 | PHENOLICS ARAMID |
| KL61-130 | 130 | 135 | 9.7 | 9.5 | 133.2 | 131.8 | PHENOLICS ARAMID |
| KL61-130/1 | 130 | 135 | 15 | 14.8 | 133.2 | 131.8 | PHENOLICS ARAMID |
| KL61-130/3 | 130 | 135 | 8.1 | 7.9 | 133.2 | 131.8 | PHENOLICS ARAMID |
| KL61-135 | 135 | 140 | 9.7 | 9.5 | 138.2 | 136.8 | PHENOLICS ARAMID |
| KL61-135/1 | 135 | 140 | 15 | 14.8 | 138.2 | 136.8 | PHENOLICS ARAMID |
| KL61-135/2 | 135 | 140 | 8.1 | 7.9 | 138.2 | 136.8 | PHENOLICS ARAMID |
| KL61-140 | 140 | 145 | 9.7 | 9.5 | 143.2 | 141.8 | PHENOLICS ARAMID |
| KL61-140/1 | 140 | 145 | 15 | 14.8 | 143.2 | 141.8 | PHENOLICS ARAMID |
| KL61-140/3 | 140 | 145 | 20 | 19.8 | 143.2 | 141.8 | PHENOLICS ARAMID |
| KL61-145 | 145 | 150 | 9.7 | 9.5 | 148.2 | 146.8 | PHENOLICS ARAMID |
| KL61-145/1 | 145 | 150 | 15 | 14.8 | 148.2 | 146.8 | PHENOLICS ARAMID |
| KL61-150 | 150 | 155 | 15 | 14.8 | 153.2 | 151.8 | PHENOLICS ARAMID |
| KL61-150/1 | 150 | 155 | 9.7 | 9.5 | 153.2 | 151.8 | PHENOLICS ARAMID |
| KL61-150/2 | 150 | 155 | 12.5 | 12.3 | 153.2 | 151.8 | PHENOLICS ARAMID |
| KL61-155 | 155 | 160 | 9.7 | 9.5 | 158.2 | 156.8 | PHENOLICS ARAMID |
| KL61-155/1 | 155 | 160 | 15 | 14.8 | 158.2 | 156.8 | PHENOLICS ARAMID |
| KL61-160 | 160 | 165 | 9.7 | 9.5 | 163.2 | 161.8 | PHENOLICS ARAMID |
| KL61-160/1 | 160 | 165 | 15 | 14.8 | 163.2 | 161.8 | PHENOLICS ARAMID |
| KL61-164 | 164 | 170 | 9.7 | 9.5 | 167.6 | 166.4 | PHENOLICS ARAMID |
| KL61-165 | 165 | 170 | 9.7 | 9.5 | 168.2 | 166.8 | PHENOLICS ARAMID |
| KL61-165/1 | 165 | 170 | 15 | 14.8 | 168.2 | 166.8 | PHENOLICS ARAMID |
| KL61-170 | 170 | 175 | 9.7 | 9.5 | 173.2 | 171.8 | PHENOLICS ARAMID |
| KL61-170/1 | 170 | 175 | 15 | 14.8 | 173.2 | 171.8 | PHENOLICS ARAMID |
| KL61-174 | 174 | 180 | 15 | 14.8 | 177.6 | 176.4 | PHENOLICS ARAMID |
| KL61-175 | 175 | 180 | 9.7 | 9.5 | 178.2 | 176.8 | PHENOLICS ARAMID |
| KL61-175/1 | 175 | 180 | 15 | 14.8 | 178.2 | 176.8 | PHENOLICS ARAMID |
| KL61-180 | 180 | 185 | 15 | 14.8 | 183.2 | 181.8 | PHENOLICS ARAMID |
| KL61-180/1 | 180 | 185 | 9.7 | 9.5 | 183.2 | 181.8 | PHENOLICS ARAMID |
| KL61-184 | 184 | 190 | 15 | 14.8 | 187.6 | 186.4 | PHENOLICS ARAMID |
| KL61-185 | 185 | 190 | 9.7 | 9.5 | 188.2 | 186.8 | PHENOLICS ARAMID |
| KL61-185/1 | 185 | 190 | 15 | 14.8 | 188.2 | 186.8 | PHENOLICS ARAMID |
| KL61-190 | 190 | 195 | 9.7 | 9.5 | 193.2 | 191.8 | PHENOLICS ARAMID |
| KL61-190/1 | 190 | 195 | 15 | 14.8 | 193.2 | 191.8 | PHENOLICS ARAMID |
| KL61-194 | 194 | 200 | 20 | 19.8 | 197.6 | 196.4 | PHENOLICS ARAMID |
| KL61-195 | 195 | 200 | 9.7 | 9.5 | 198.2 | 196.8 | PHENOLICS ARAMID |
| KL61-195/1 | 195 | 200 | 15 | 14.8 | 198.2 | 196.8 | PHENOLICS ARAMID |
| KL61-209 | 209 | 215 | 20 | 19.8 | 212.6 | 211.4 | PHENOLICS ARAMID |
| KL61-210 | 210 | 215 | 25 | 24.5 | 213.2 | 211.8 | PHENOLICS ARAMID |
| KL61-215 | 215 | 220 | 15 | 14.8 | 218.2 | 216.8 | PHENOLICS ARAMID |
| KL61-219 | 219 | 225 | 20 | 19.8 | 222.6 | 221.4 | PHENOLICS ARAMID |
| KL61-224 | 224 | 230 | 25 | 24.5 | 227.6 | 226.4 | PHENOLICS ARAMID |
| KL61-229 | 229 | 235 | 20 | 19.8 | 232.6 | 231.4 | PHENOLICS ARAMID |
| KL61-234 | 234 | 240 | 25 | 24.5 | 237.6 | 236.4 | PHENOLICS ARAMID |
| KL61-235 | 235 | 240 | 25 | 24.5 | 238.2 | 236.8 | PHENOLICS ARAMID |
| KL61-240 | 240 | 248 | 25 | 24.5 | 245 | 243 | PHENOLICS ARAMID |
| KL61-244 | 244 | 250 | 25 | 24.5 | 247.6 | 246.4 | PHENOLICS ARAMID |
| KL61-245/1 | 245 | 250 | 25 | 24.5 | 248.2 | 246.8 | PHENOLICS ARAMID |
| KL61-245/2 | 245 | 250 | 15 | 14.8 | 248.2 | 246.8 | PHENOLICS ARAMID |
| KL61-245/3 | 245 | 250 | 20 | 19.8 | 248.2 | 246.8 | PHENOLICS ARAMID |
| KL61-250 | 250 | 255 | 40 | 39.5 | 253.2 | 251.8 | PHENOLICS ARAMID |
| KL61-254 | 254 | 260 | 25 | 24.5 | 257.6 | 256.4 | PHENOLICS ARAMID |
| KL61-254/1 | 254 | 260 | 30 | 29.5 | 257.6 | 256.4 | PHENOLICS ARAMID |
| KL61-260 | 260 | 265 | 25 | 24.5 | 263.2 | 261.8 | PHENOLICS ARAMID |
| KL61-279 | 279 | 285 | 25 | 24.5 | 282.6 | 281.4 | PHENOLICS ARAMID |
| KL61-280 | 280 | 285 | 25 | 24.5 | 283.2 | 281.8 | PHENOLICS ARAMID |
| KL61-294 | 294 | 300 | 35 | 34.5 | 297.6 | 296.4 | PHENOLICS ARAMID |
| KL61-295 | 295 | 300 | 25 | 24.5 | 298.2 | 296.8 | PHENOLICS ARAMID |
| KL61-315 | 315 | 320 | 25 | 24.5 | 318.2 | 316.8 | PHENOLICS ARAMID |
