KL63 Carbon Steel PTFE Bronze Composite Bushings Low Friction Low Abrasion
product detail
Product Details
Name:
KL63 PTFE Composite Bushing
Material:
Carbon Steel PTFE Bronze
Temperature (max) °C:
-195/+280
Sliding Speed (max)- M/s:
2.0 (Dry Run) 5.0 (Working With Hydraulic Fluid)
Style:
Hydraulic Guiding Elements
Application:
Applications With High Radial Load
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

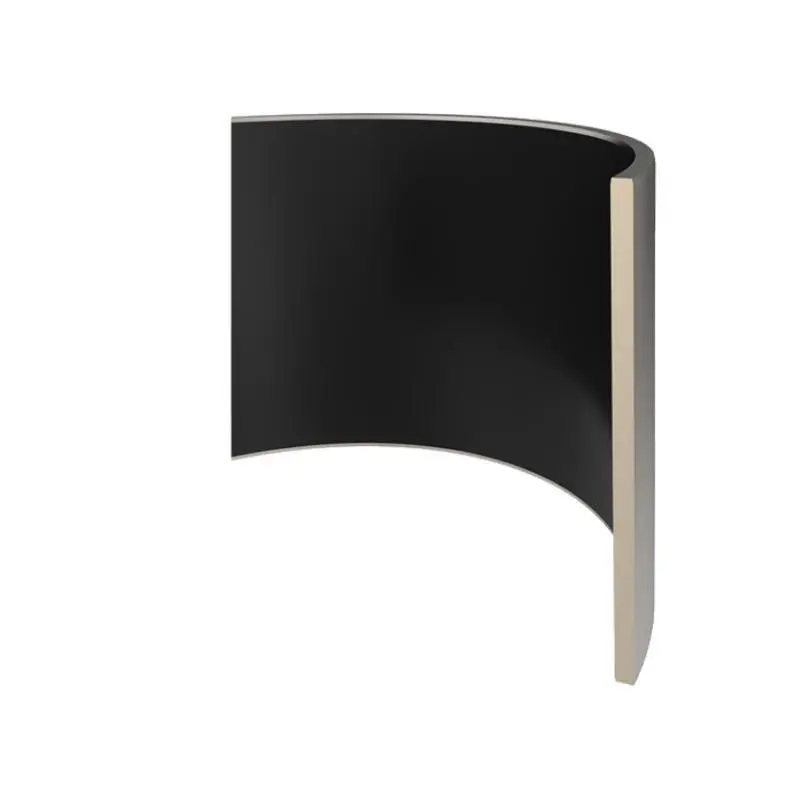

KL63 is a composite bushing consists of carbon steel, bronze, and PTFE. KL63 is a self-lubricating bushing which provides low friction and low abrasion.
Advantages
• Suitable for dry applications
• Abrasion Resistance
• Low friction
• Long service life
• Good thermal properties and dimensional stability
• Optimum oil film
• Superior load bearing capacity
Area of Application
• Hydraulic and Pneumatic Cylinders
• Applications with high radial load

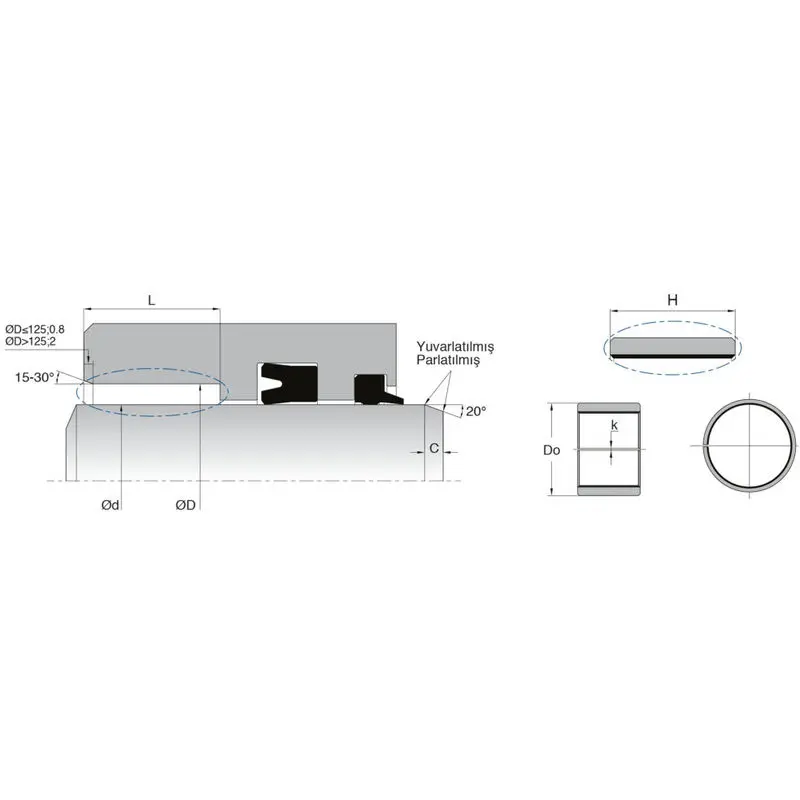

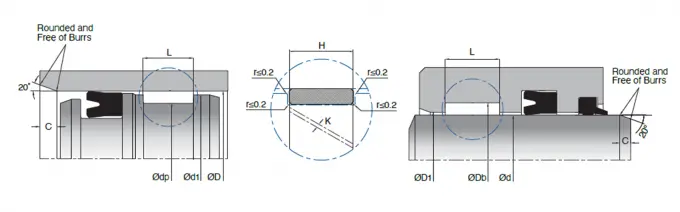

| d (f7) | D (H7) | L (+0.2/-0) | MATERIAL | |
| KL63-006 | 6 | 8 | 10 | Steel - Teflon - Bushing |
| KL63-008 | 8 | 10 | 10 | Steel - Teflon - Bushing |
| KL63-008/2 | 8 | 10 | 8 | Steel - Teflon - Bushing |
| KL63-010 | 10 | 12 | 15 | Steel - Teflon - Bushing |
| KL63-012 | 12 | 14 | 15 | Steel - Teflon - Bushing |
| KL63-012/1 | 12 | 14 | 20 | Steel - Teflon - Bushing |
| KL63-012/2 | 12 | 14 | 10 | Steel - Teflon - Bushing |
| KL63-016 | 16 | 18 | 15 | Steel - Teflon - Bushing |
| KL63-016/1 | 16 | 18 | 12 | Steel - Teflon - Bushing |
| KL63-017 | 17 | 19 | 20 | Steel - Teflon - Bushing |
| KL63-017/1 | 17 | 19 | 25 | Steel - Teflon - Bushing |
| KL63-020 | 20 | 23 | 15 | Steel - Teflon - Bushing |
| KL63-020/1 | 20 | 23 | 20 | Steel - Teflon - Bushing |
| KL63-020/2 | 20 | 23 | 30 | Steel - Teflon - Bushing |
| KL63-020/4 | 20 | 23 | 25 | Steel - Teflon - Bushing |
| KL63-020/5 | 20 | 22 | 15 | Steel - Teflon - Bushing |
| KL63-022 | 22 | 25 | 26.5 | Steel - Teflon - Bushing |
| KL63-025 | 25 | 28 | 30 | Steel - Teflon - Bushing |
| KL63-025/1 | 25 | 28 | 20 | Steel - Teflon - Bushing |
| KL63-025/2 | 25 | 28 | 25 | Steel - Teflon - Bushing |
| KL63-028 | 28 | 32 | 30 | Steel - Teflon - Bushing |
| KL63-028/1 | 28 | 32 | 25 | Steel - Teflon - Bushing |
| KL63-030 | 30 | 34 | 30 | Steel - Teflon - Bushing |
| KL63-030/1 | 30 | 34 | 20 | Steel - Teflon - Bushing |
| KL63-030/2 | 30 | 34 | 15 | Steel - Teflon - Bushing |
| KL63-032 | 32 | 36 | 40 | Steel - Teflon - Bushing |
| KL63-032/1 | 32 | 36 | 30 | Steel - Teflon - Bushing |
| KL63-035 | 35 | 40 | 60 | Steel - Teflon - Bushing |
| KL63-036 | 36 | 40 | 30 | Steel - Teflon - Bushing |
| KL63-038 | 38 | 42 | 38 | Steel - Teflon - Bushing |
| KL63-040 | 40 | 44 | 20 | Steel - Teflon - Bushing |
| KL63-040/1 | 40 | 44 | 25 | Steel - Teflon - Bushing |
| KL63-040/2 | 40 | 44 | 30 | Steel - Teflon - Bushing |
| KL63-040/3 | 40 | 45 | 30 | Steel - Teflon - Bushing |
| KL63-040/4 | 40 | 44 | 40 | Steel - Teflon - Bushing |
| KL63-040/5 | 40 | 45 | 20 | Steel - Teflon - Bushing |
| KL63-045 | 45 | 50 | 30 | Steel - Teflon - Bushing |
| KL63-045/1 | 45 | 50 | 60 | Steel - Teflon - Bushing |
| KL63-045/2 | 45 | 50 | 50 | Steel - Teflon - Bushing |
| KL63-050 | 50 | 55 | 30 | Steel - Teflon - Bushing |
| KL63-050/1 | 50 | 55 | 20 | Steel - Teflon - Bushing |
| KL63-050/2 | 50 | 55 | 40 | Steel - Teflon - Bushing |
| KL63-050/3 | 50 | 55 | 50 | Steel - Teflon - Bushing |
| KL63-055 | 55 | 60 | 60 | Steel - Teflon - Bushing |
| KL63-055/1 | 55 | 60 | 30 | Steel - Teflon - Bushing |
| KL63-055/2 | 55 | 60 | 40 | Steel - Teflon - Bushing |
| KL63-060 | 60 | 65 | 20 | Steel - Teflon - Bushing |
| KL63-060/1 | 60 | 65 | 30 | Steel - Teflon - Bushing |
| KL63-060/2 | 60 | 65 | 40 | Steel - Teflon - Bushing |
| KL63-060/3 | 60 | 65 | 50 | Steel - Teflon - Bushing |
| KL63-060/4 | 60 | 65 | 60 | Steel - Teflon - Bushing |
| KL63-065 | 65 | 70 | 50 | Steel - Teflon - Bushing |
| KL63-065/1 | 65 | 70 | 30 | Steel - Teflon - Bushing |
| KL63-065/2 | 65 | 70 | 60 | Steel - Teflon - Bushing |
| KL63-065/3 | 65 | 70 | 40 | Steel - Teflon - Bushing |
| KL63-070 | 70 | 75 | 30 | Steel - Teflon - Bushing |
| KL63-070/1 | 70 | 75 | 40 | Steel - Teflon - Bushing |
| KL63-070/2 | 70 | 75 | 50 | Steel - Teflon - Bushing |
| KL63-070/3 | 70 | 75 | 80 | Steel - Teflon - Bushing |
| KL63-070/4 | 70 | 75 | 35 | Steel - Teflon - Bushing |
| KL63-070/5 | 70 | 75 | 15 | Steel - Teflon - Bushing |
| KL63-075 | 75 | 80 | 30 | Steel - Teflon - Bushing |
| KL63-075/1 | 75 | 80 | 40 | Steel - Teflon - Bushing |
| KL63-075/2 | 75 | 80 | 35 | Steel - Teflon - Bushing |
| KL63-075/3 | 75 | 80 | 60 | Steel - Teflon - Bushing |
| KL63-080 | 80 | 85 | 30 | Steel - Teflon - Bushing |
| KL63-080/1 | 80 | 85 | 40 | Steel - Teflon - Bushing |
| KL63-080/2 | 80 | 85 | 35 | Steel - Teflon - Bushing |
| KL63-080/3 | 80 | 85 | 60 | Steel - Teflon - Bushing |
| KL63-085 | 85 | 90 | 30 | Steel - Teflon - Bushing |
| KL63-085/1 | 85 | 90 | 40 | Steel - Teflon - Bushing |
| KL63-085/2 | 85 | 90 | 35 | Steel - Teflon - Bushing |
| KL63-085/3 | 85 | 90 | 60 | Steel - Teflon - Bushing |
| KL63-090 | 90 | 95 | 30 | Steel - Teflon - Bushing |
| KL63-090/1 | 90 | 95 | 40 | Steel - Teflon - Bushing |
| KL63-090/2 | 90 | 95 | 20 | Steel - Teflon - Bushing |
| KL63-090/3 | 90 | 95 | 35 | Steel - Teflon - Bushing |
| KL63-090/4 | 90 | 95 | 50 | Steel - Teflon - Bushing |
| KL63-090/5 | 90 | 95 | 60 | Steel - Teflon - Bushing |
| KL63-095 | 95 | 100 | 30 | Steel - Teflon - Bushing |
| KL63-095/1 | 95 | 100 | 40 | Steel - Teflon - Bushing |
| KL63-095/2 | 95 | 100 | 60 | Steel - Teflon - Bushing |
| KL63-095/3 | 95 | 100 | 50 | Steel - Teflon - Bushing |
| KL63-100 | 100 | 105 | 30 | Steel - Teflon - Bushing |
| KL63-100/1 | 100 | 105 | 35 | Steel - Teflon - Bushing |
| KL63-100/2 | 100 | 105 | 50 | Steel - Teflon - Bushing |
| KL63-100/3 | 100 | 105 | 60 | Steel - Teflon - Bushing |
| KL63-100/4 | 100 | 105 | 40 | Steel - Teflon - Bushing |
| KL63-100/5 | 100 | 105 | 20 | Steel - Teflon - Bushing |
| KL63-105 | 105 | 110 | 60 | Steel - Teflon - Bushing |
| KL63-105/1 | 105 | 110 | 50 | Steel - Teflon - Bushing |
| KL63-105/2 | 105 | 110 | 35 | Steel - Teflon - Bushing |
| KL63-105/3 | 105 | 110 | 40 | Steel - Teflon - Bushing |
| KL63-110 | 110 | 115 | 50 | Steel - Teflon - Bushing |
| KL63-110/1 | 110 | 115 | 55 | Steel - Teflon - Bushing |
| KL63-110/2 | 110 | 115 | 35 | Steel - Teflon - Bushing |
| KL63-110/3 | 110 | 115 | 40 | Steel - Teflon - Bushing |
| KL63-110/4 | 110 | 115 | 30 | Steel - Teflon - Bushing |
| KL63-110/5 | 110 | 115 | 60 | Steel - Teflon - Bushing |
| KL63-115 | 115 | 120 | 35 | Steel - Teflon - Bushing |
| KL63-115/1 | 115 | 120 | 60 | Steel - Teflon - Bushing |
| KL63-115/2 | 115 | 120 | 50 | Steel - Teflon - Bushing |
| KL63-115/4 | 115 | 120 | 45 | Steel - Teflon - Bushing |
| KL63-120 | 120 | 125 | 35 | Steel - Teflon - Bushing |
| KL63-120/1 | 120 | 125 | 45 | Steel - Teflon - Bushing |
| KL63-120/2 | 120 | 125 | 20 | Steel - Teflon - Bushing |
| KL63-120/3 | 120 | 125 | 40 | Steel - Teflon - Bushing |
| KL63-120/4 | 120 | 125 | 50 | Steel - Teflon - Bushing |
| KL63-120/5 | 120 | 125 | 60 | Steel - Teflon - Bushing |
| KL63-125 | 125 | 130 | 50 | Steel - Teflon - Bushing |
| KL63-130 | 130 | 135 | 50 | Steel - Teflon - Bushing |
| KL63-130/1 | 130 | 135 | 60 | Steel - Teflon - Bushing |
| KL63-130/2 | 130 | 135 | 40 | Steel - Teflon - Bushing |
| KL63-130/3 | 130 | 135 | 100 | Steel - Teflon - Bushing |
| KL63-135 | 135 | 140 | 100 | Steel - Teflon - Bushing |
| KL63-140 | 140 | 145 | 40 | Steel - Teflon - Bushing |
| KL63-140/1 | 140 | 145 | 60 | Steel - Teflon - Bushing |
| KL63-140/2 | 140 | 145 | 50 | Steel - Teflon - Bushing |
| KL63-140/3 | 140 | 145 | 55 | Steel - Teflon - Bushing |
| KL63-145 | 145 | 150 | 60 | Steel - Teflon - Bushing |
| KL63-150 | 150 | 155 | 40 | Steel - Teflon - Bushing |
| KL63-150/1 | 150 | 155 | 50 | Steel - Teflon - Bushing |
| KL63-150/2 | 150 | 155 | 60 | Steel - Teflon - Bushing |
| KL63-160 | 160 | 165 | 40 | Steel - Teflon - Bushing |
| KL63-160/1 | 160 | 165 | 80 | Steel - Teflon - Bushing |
| KL63-160/2 | 160 | 165 | 50 | Steel - Teflon - Bushing |
| KL63-160/3 | 160 | 165 | 60 | Steel - Teflon - Bushing |
| KL63-180 | 180 | 185 | 60 | Steel - Teflon - Bushing |
| KL63-210 | 210 | 215 | 60 | Steel - Teflon - Bushing |
| KL63-210/1 | 210 | 215 | 80 | Steel - Teflon - Bushing |
