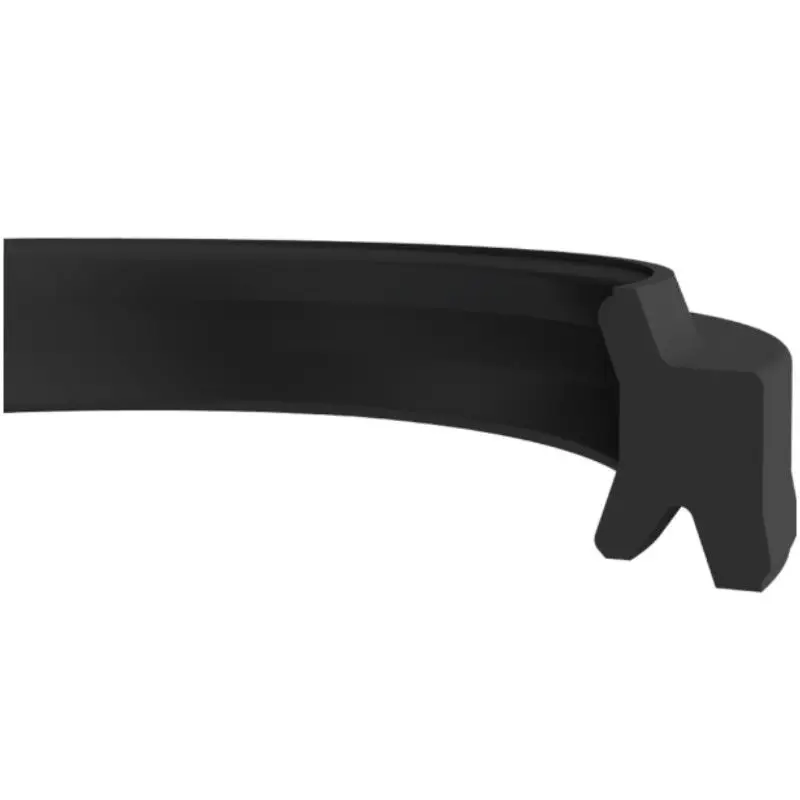

KL99 U Cup Rod Seals Pneumatic Single Acting Sealing Element
product detail
Product Details
Name:
Pneumatic U Cup Rod Seal
Material:
NBR
Temperature (max) °C:
-30/+105
Sliding Speed (max)- M/s:
1.0
Area Of Application:
Pneumatic Cylinders
Color:
Blue / Red / Black / Customized Colors
Payment & Shipping Terms
Minimum Order Quantity:
100
Packaging Details:
Customizable packaging
Delivery Time:
15
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs /months
KL99 Pneumatic Rod Seal Is A Single Acting Sealing Element Use The U-Cup Structure Have Superior Sealing Performance
KL99 pneumatic rod seal is a single acting sealing element that can perform both functions together with its dust lip preventing that foreign particles from outer environment penetrate in the cylinder and the u-cup structure that provides sealing.
Advantages
• Superior wiping performance
• Superior sealing performance
• Low dynamic friction forces
• Small housing dimensions
• Operating with no interruption in low pressures
Area of Application
• Pneumatic Cylinders

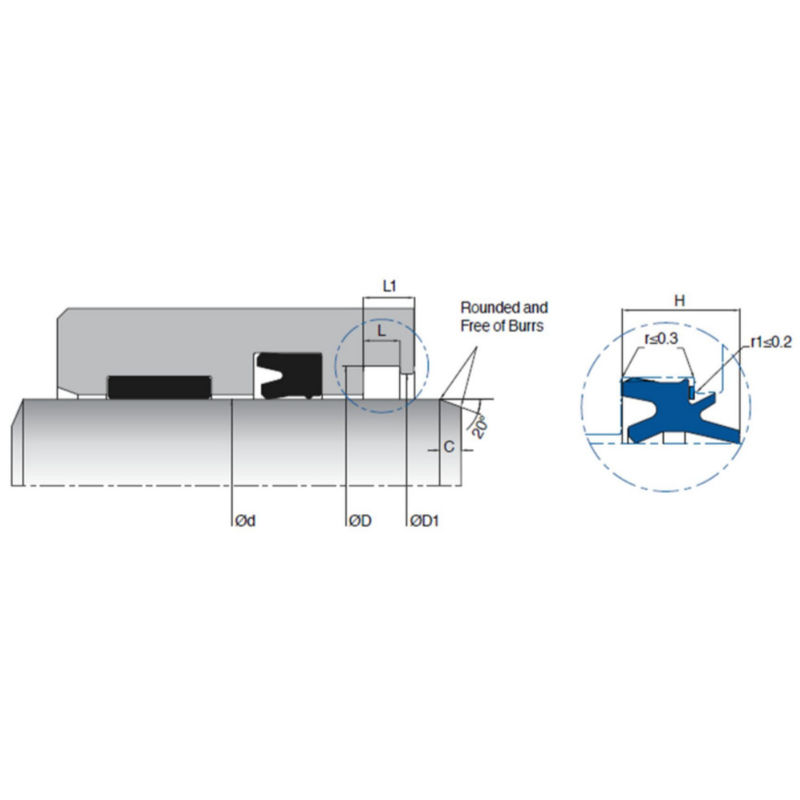

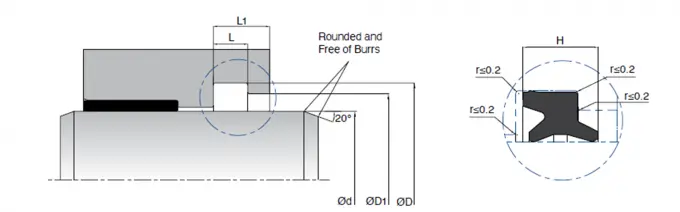

| d (f9) | D (H11) | D1 (+0.2/-0) | L (+0.2/-0) | L1 | H | MATERIAL | |
| KL99-008 | 8 | 12 | 9.6 | 4 | 6 | 4.9 | NBR |
| KL99-010 | 10 | 14 | 11.6 | 4 | 6 | 4.9 | NBR |
| KL99-012 | 12 | 16 | 13.6 | 4 | 6 | 4.9 | NBR |
| KL99-014 | 14 | 18 | 15.6 | 4 | 6 | 4.9 | NBR |
| KL99-016 | 16 | 24 | 19.4 | 6 | 8 | 7.5 | NBR |
| KL99-020 | 20 | 28 | 23.4 | 6 | 8 | 7.5 | NBR |
| KL99-022 | 22 | 30 | 25.4 | 6 | 8 | 7.5 | NBR |
| KL99-025 | 25 | 33 | 28.4 | 6 | 8 | 7.5 | NBR |
| KL99-030 | 30 | 40 | 34 | 7 | 9 | 8.5 | NBR |
| KL99-040 | 40 | 50 | 44 | 7 | 9 | 8.5 | NBR |
| KL99-045 | 45 | 55 | 49 | 7 | 9 | 8.5 | NBR |
| KL99-050 | 50 | 60 | 54 | 7 | 9 | 8.5 | NBR |
