Low Friction Hydraulic Guide Ring Easy Installation Rod Guide Ring
product detail
Product Details
Name:
Low Friction Hydraulic Guide Ring
Material:
SYNTHETIC FIBER, POLYESTER RESIN, GRAPHITE
Temperature (max) °C:
-40/+120
Sliding Speed (max)- M/s:
5.0
Style:
Hydraulic Guiding Elements
Application:
Pneumatic Cylinders / Excavators
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

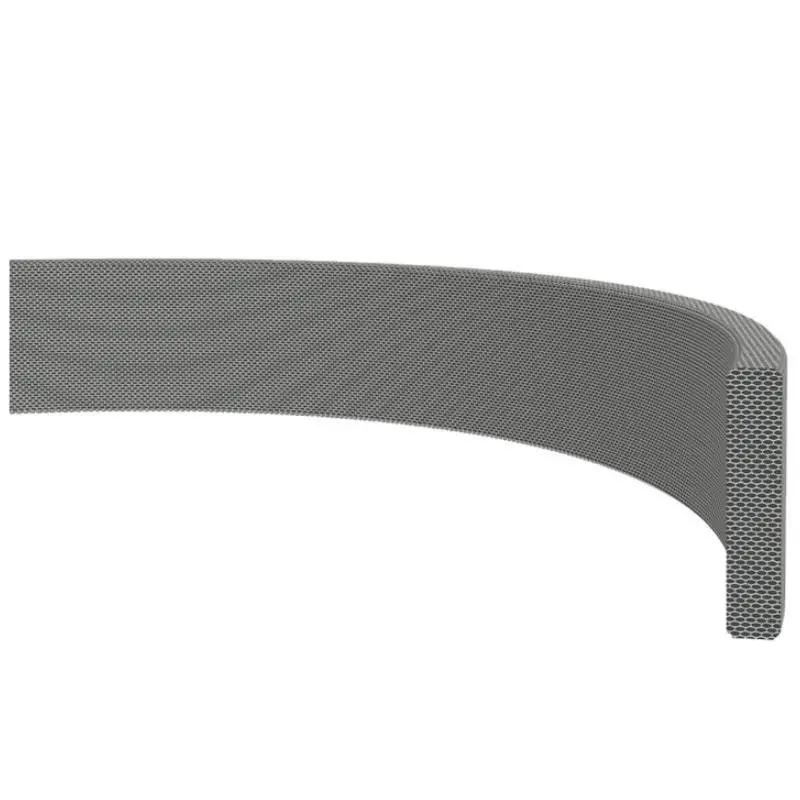

KL62 piston-rod guide rings are composite guiding elements, produced from syntethic fabric and polyester resin which provides high load carrying capacity designed to be used in rod and piston applications in hydraulic systems. Different from regular composite guide rings, KL62 has a graphite additives which decreases friction and provides self-lubrication so widely preferred in dry applications or cylinders with insufficient lubrication.
Advantages
• Low coefficient of friction
• Able to work dry behind the sealing element
• The high form stability at operating temperature range
• Easy installation
• Can be used in heavy and medium duty application
Area of Application
• Mobile machinery
• Pneumatic cylinders
• Excavators
• Presses

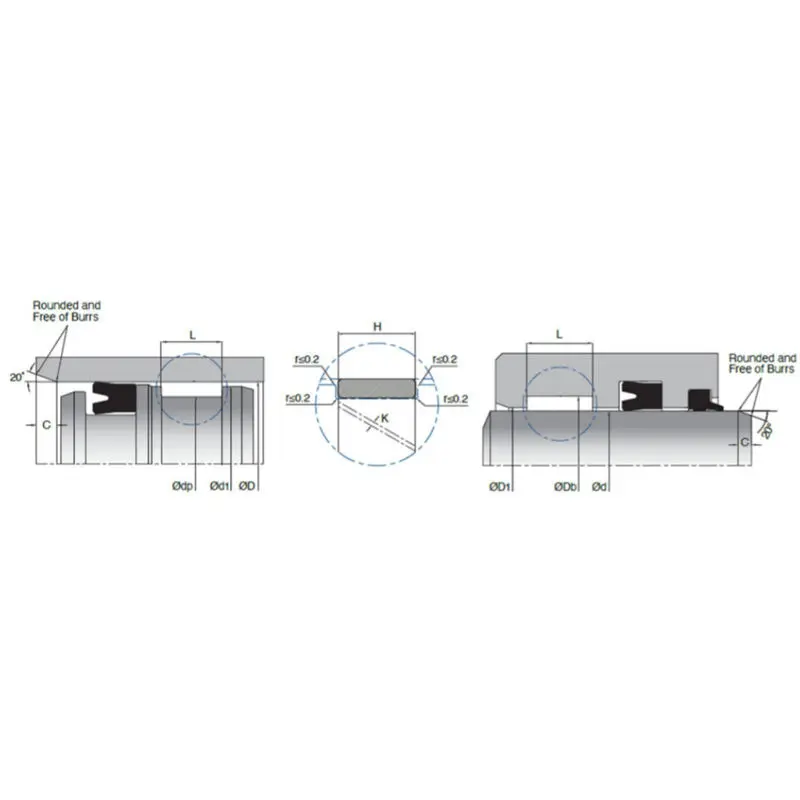

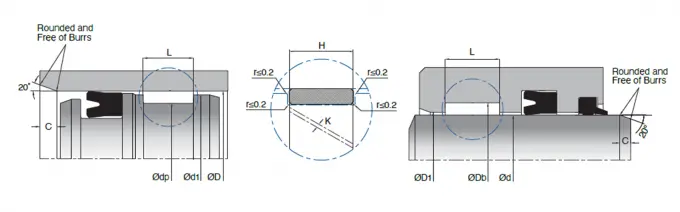

| d(f8) dp(h8) | Db(H8) D(H9) | L (+0.2/-0) | H | d1 (h9) | D1 (H9) | MATERIAL | |
| KL62-017 | 17 | 20 | 4 | 3.8 | 19 | 18 | PHENOLICS ARAMID |
| KL62-020 | 20 | 24 | 5.6 | 5.4 | 23 | 21 | PHENOLICS ARAMID |
| KL62-020/1 | 20 | 24 | 9.7 | 9.5 | 23 | 21 | PHENOLICS ARAMID |
| KL62-022 | 22 | 25 | 4 | 3.8 | 24 | 23 | PHENOLICS ARAMID |
| KL62-025 | 25 | 28 | 4 | 3.8 | 27 | 26 | PHENOLICS ARAMID |
| KL62-027 | 27 | 30 | 4 | 3.8 | 29 | 28 | PHENOLICS ARAMID |
| KL62-029 | 29 | 32 | 5 | 4.8 | 31 | 30 | PHENOLICS ARAMID |
| KL62-030 | 30 | 35 | 9.7 | 9.5 | 33.2 | 31.8 | PHENOLICS ARAMID |
| KL62-032 | 32 | 35 | 5 | 4.8 | 34 | 33 | PHENOLICS ARAMID |
| KL62-035 | 35 | 40 | 9.7 | 9.5 | 38.2 | 36.8 | PHENOLICS ARAMID |
| KL62-035/1 | 35 | 40 | 15 | 14.8 | 38.2 | 36.8 | PHENOLICS ARAMID |
| KL62-037 | 37 | 40 | 5 | 4.8 | 39 | 38 | PHENOLICS ARAMID |
| KL62-040/1 | 40 | 45 | 15 | 14.8 | 43.2 | 41.8 | PHENOLICS ARAMID |
| KL62-042 | 42 | 45 | 5 | 4.8 | 44 | 43 | PHENOLICS ARAMID |
| KL62-045/1 | 45 | 50 | 9.7 | 9.5 | 48.2 | 46.8 | PHENOLICS ARAMID |
| KL62-045/2 | 45 | 50 | 15 | 14.8 | 48.2 | 46.8 | PHENOLICS ARAMID |
| KL62-046 | 46 | 50 | 9.7 | 9.5 | 49 | 47 | PHENOLICS ARAMID |
| KL62-047 | 47 | 50 | 5 | 4.8 | 49 | 48 | PHENOLICS ARAMID |
| KL62-050 | 50 | 55 | 5.6 | 5.4 | 53.2 | 51.8 | PHENOLICS ARAMID |
| KL62-050/1 | 50 | 55 | 9.7 | 9.5 | 53.2 | 51.8 | PHENOLICS ARAMID |
| KL62-050/2 | 50 | 55 | 15 | 14.8 | 53.2 | 51.8 | PHENOLICS ARAMID |
| KL62-055 | 55 | 60 | 9.7 | 9.5 | 58.2 | 56.8 | PHENOLICS ARAMID |
| KL62-055/1 | 55 | 60 | 15 | 14.8 | 58.2 | 56.8 | PHENOLICS ARAMID |
| KL62-058 | 58 | 63 | 9.7 | 9.5 | 61.2 | 59.8 | PHENOLICS ARAMID |
| KL62-060/1 | 60 | 65 | 15 | 14.8 | 63.2 | 61.8 | PHENOLICS ARAMID |
| KL62-063 | 63 | 68 | 15 | 14.8 | 66.2 | 64.8 | PHENOLICS ARAMID |
| KL62-065 | 65 | 70 | 9.7 | 9.5 | 68.2 | 66.8 | PHENOLICS ARAMID |
| KL62-065/1 | 65 | 70 | 15 | 14.8 | 68.2 | 66.8 | PHENOLICS ARAMID |
| KL62-070/1 | 70 | 75 | 15 | 14.8 | 73.2 | 71.8 | PHENOLICS ARAMID |
| KL62-075 | 75 | 80 | 9.7 | 9.5 | 78.2 | 76.8 | PHENOLICS ARAMID |
| KL62-075/1 | 75 | 80 | 5.6 | 5.4 | 78.2 | 76.8 | PHENOLICS ARAMID |
| KL62-075/2 | 75 | 80 | 15 | 14.8 | 78.2 | 76.8 | PHENOLICS ARAMID |
| KL62-080 | 80 | 85 | 9.7 | 9.5 | 83.2 | 81.8 | PHENOLICS ARAMID |
| KL62-080/1 | 80 | 85 | 15 | 14.8 | 83.2 | 81.8 | PHENOLICS ARAMID |
| KL62-085 | 85 | 90 | 15 | 14.8 | 88.2 | 86.8 | PHENOLICS ARAMID |
| KL62-090 | 90 | 95 | 15 | 14.8 | 93.2 | 91.8 | PHENOLICS ARAMID |
| KL62-090/1 | 90 | 95 | 9.7 | 9.5 | 93.2 | 91.8 | PHENOLICS ARAMID |
| KL62-095 | 95 | 100 | 9.7 | 9.5 | 98.2 | 96.8 | PHENOLICS ARAMID |
| KL62-095/1 | 95 | 100 | 15 | 14.8 | 98.2 | 96.8 | PHENOLICS ARAMID |
| KL62-100 | 100 | 105 | 9.7 | 9.5 | 103.2 | 101.8 | PHENOLICS ARAMID |
| KL62-120 | 120 | 125 | 9.7 | 9.5 | 123.2 | 121.8 | PHENOLICS ARAMID |
| KL62-125 | 125 | 130 | 15 | 14.8 | 128.2 | 126.8 | PHENOLICS ARAMID |
| KL62-130 | 130 | 135 | 15 | 14.8 | 133.2 | 131.8 | PHENOLICS ARAMID |
| KL62-155 | 155 | 160 | 15 | 14.8 | 158.2 | 156.8 | PHENOLICS ARAMID |
| KL62-160 | 160 | 165 | 15 | 14.8 | 163.2 | 161.8 | PHENOLICS ARAMID |
| KL62-195 | 195 | 200 | 15 | 14.8 | 198.2 | 196.8 | PHENOLICS ARAMID |
| KL62-245 | 245 | 250 | 15 | 14.8 | 248.2 | 246.8 | PHENOLICS ARAMID |
| KL62-315 | 315 | 320 | 15 | 14.8 | 318.2 | 316.8 | PHENOLICS ARAMID |
| KL62-315/1 | 315 | 320 | 9.7 | 9.5 | 318.2 | 316.8 | PHENOLICS ARAMID |
