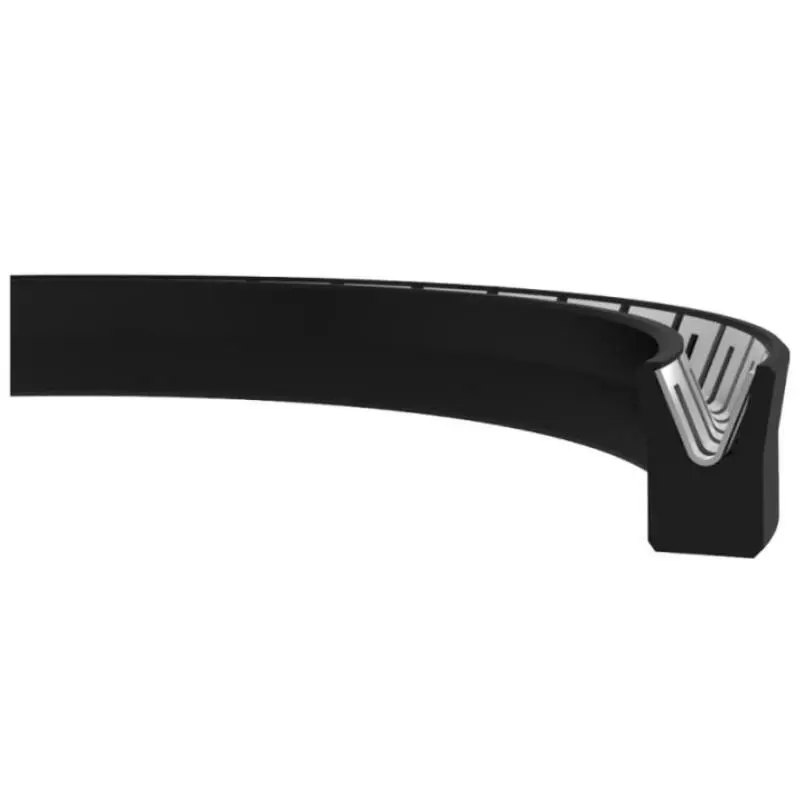

Low friction Single Acting Piston Seal Hydraulic Seals And O Rings

KL47 is design for sealing rods, pistons and plungers in hydraulic cylinders and hydraulic presses. Extremely suitable for medium duty to heavy duty application. Accepts low & high pressure, vigorous conditions & also if any misalignment between sealing gaps.

The distinctive and exclusive hinge-like action of each KL47 ring permits immediate reaction even to minor pressure changes. Each individual lip of KL47 independently reacts to pressure and automatically effect a seal. The multiple lip configurations automatically distribute pressure and an effective seal along the shaft.

The seal is a combination of a Base seal, center V-Ring & pressure ring. The center ring is the main seal being flexible enough to retain high & low pressure, whereas the base seal support the center ring from getting extruded against high pressures. The pressure ring helps in retaining the center ring profile& distributing pressure equally.

Features:

Multi-piece KL47 seals set made up of (1+3+1) one Base ring, one or three V-Seals and one pressure ring. & also available

extra Center Rings to adjust Groove Height

Advantages

Area of Application
