NBR / FKM / PTFE O Ring Seals Kit For Industries Different Size And Material
product detail
Product Details
Material:
PTFE/NBR PTFE/FKM Others
Working Pressures:
40 Mpa
Temperature (max) °C:
-60～+280
Working Speed - M/s:
Reciprocating≤3m/s
Style:
Piston Seals
Seal Form:
Reciprocating/Birdirectional Sealing
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
AQ5
Purpose and performance:
AQ5 is suitable for working conditions with fast speed, high pressure and pressure maintenance. Can be used with piston accumulators, clamping cylinders and positioning cylinders, especially recommended for heavy duty and large diameter applications. It has the dual security of low friction and high elasticity, low gas permeability, good sliding performance in high-pressure applications, no crawling phenomenon, simple groove structure, and easy installation.
Working conditions:
Temperature range: -60~+280℃
Working speed: 3m/s
Working pressure: 60Mpa
Medium: general hydraulic oil, retardant oil, water and others.

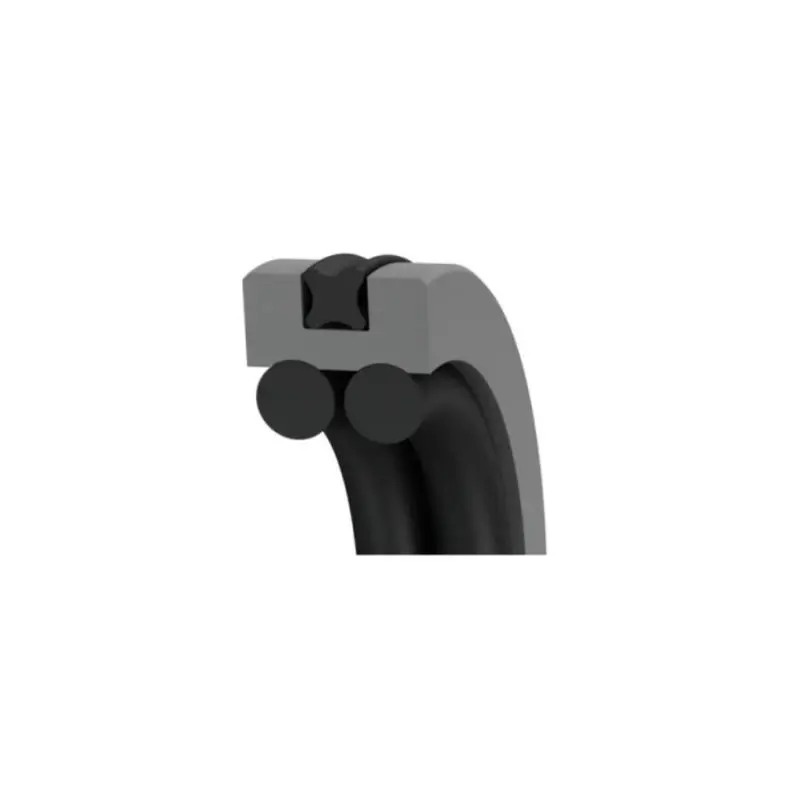

Standard materials:
Seal ring: filled with polytetrafluoroethylene PTFE
0-ring: nitrile rubber NBR or fluorine rubber FKM
X-ring: nitrile rubber NBR or fluorine rubber FKM
Ordering example:

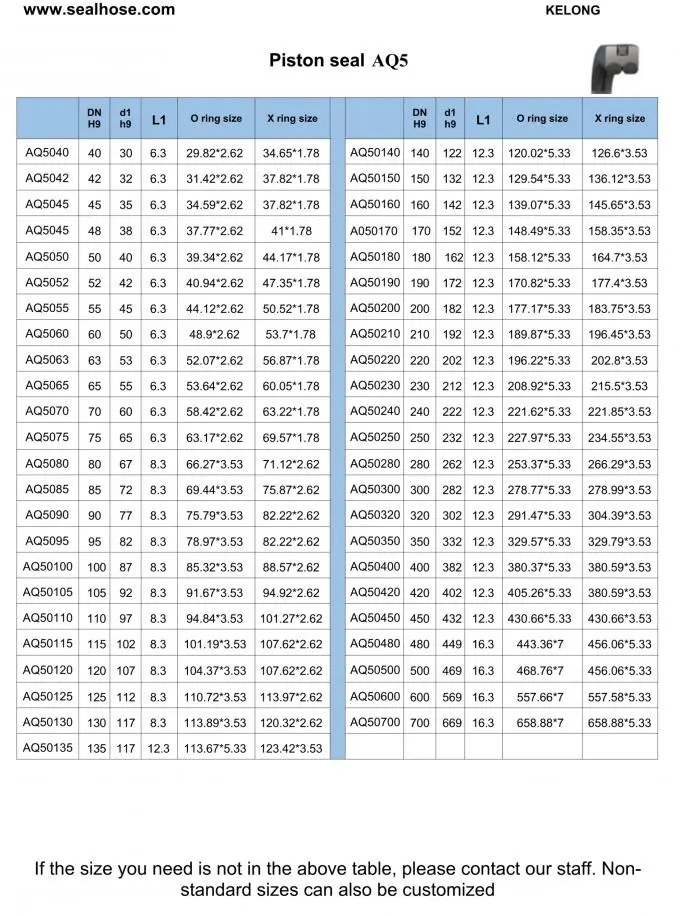

Bore size=100mm:AQ50100 or AQ5100*87*8.3
