NBR HNBR EPDM Material Hydraulic Piston Seals With Helicoil Spring
product detail
Product Details
Material:
NBR / HNBR / EPDM / FKM
Pressure (max) Bar:
200/400
Temperature (max) °C:
-260/+200
Sliding Speed (max)- M/s:
0.5/1
Style:
Piston Seals
Application:
Bonnets, Seats And Stems
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

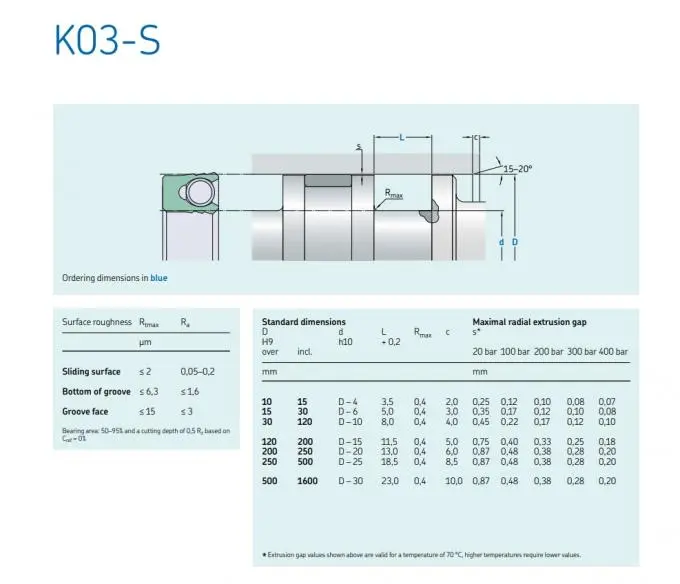

K03-S
Overview

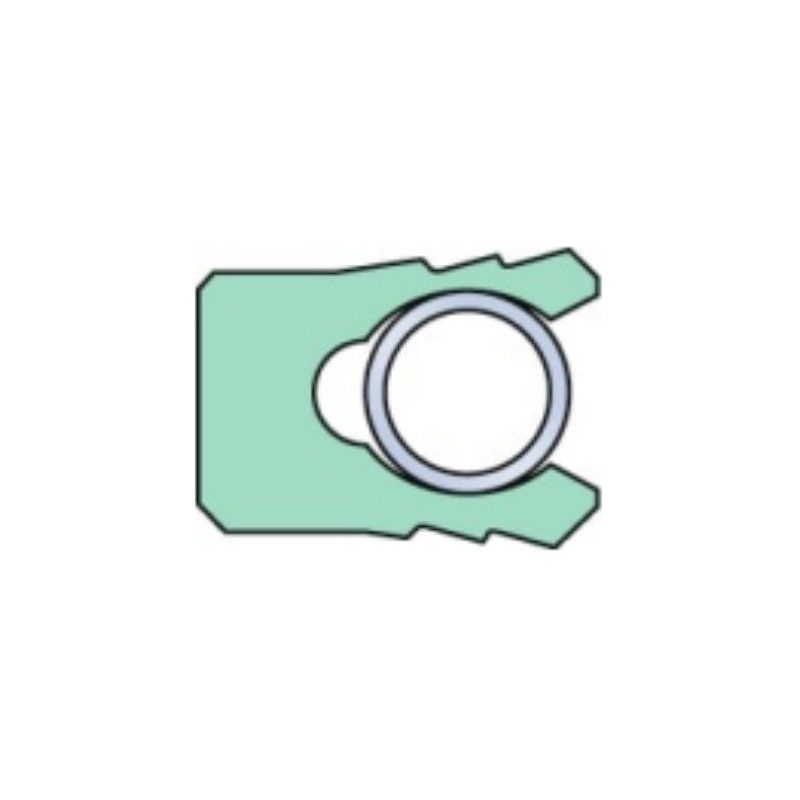

Helicoil spring preloaded, asymmetric PTFE piston seals.
Optimized design for FKM materials to reduce friction and stick-slip effects.
Excellent chemical and heat resistance, primarily used for bonnets, seats and stems.
Temperature (max) °C : -200～+260
Pressure (max) Bar : 200 / 400
Sliding Speed (max)- M/s: 0.5 / 1
Application:
Backwards and forwards action (e.g. of piston or pump)
Stationary state
