NBR Pneumatic Piston Seal Double Acting High Friction Resistant
product detail
Product Details
Style:
Double Acting Piston Seal Pneumatic
Material:
NBR
Pressure (max) Bar:
16
Temperature (max) °C:
-30/+105
Sliding Speed (max)- M/s:
10
Application:
Pneumatic Cylinders
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

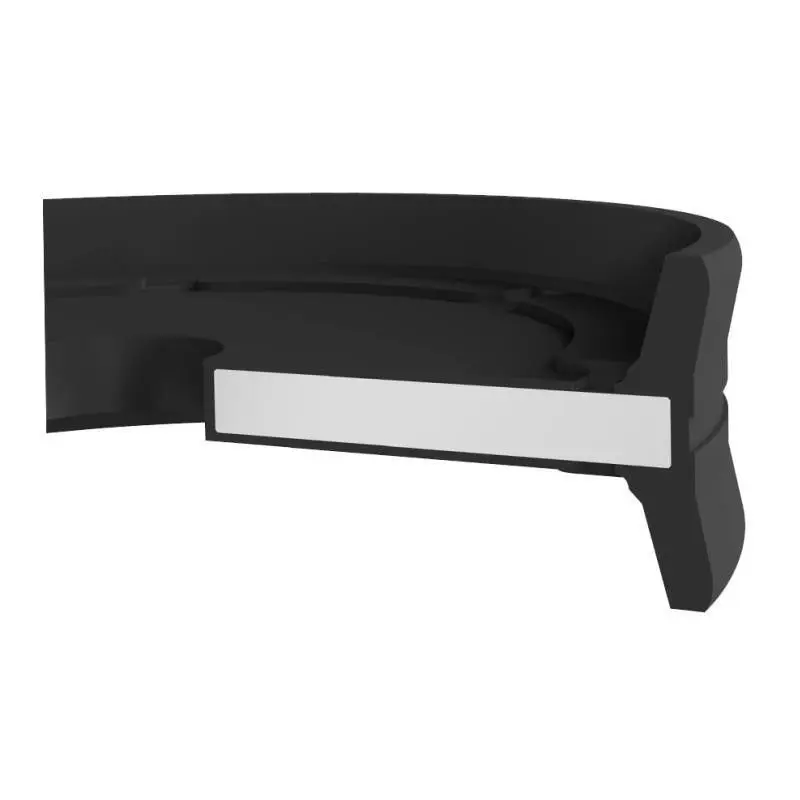

KL66 pneumatic piston seal is a double acting piston seal formed by vulcanizing the metal part and the elastomer material together with special methods.
Advantages
• Complete piston head
• Wide range of dimensions
• High friction resistance
• Easy installation
• Long service life
• Economical sealing solution
• Wide range of dimensions
• High friction resistance
• Easy installation
• Long service life
• Economical sealing solution
Area of Application
• Pneumatic Cylinders

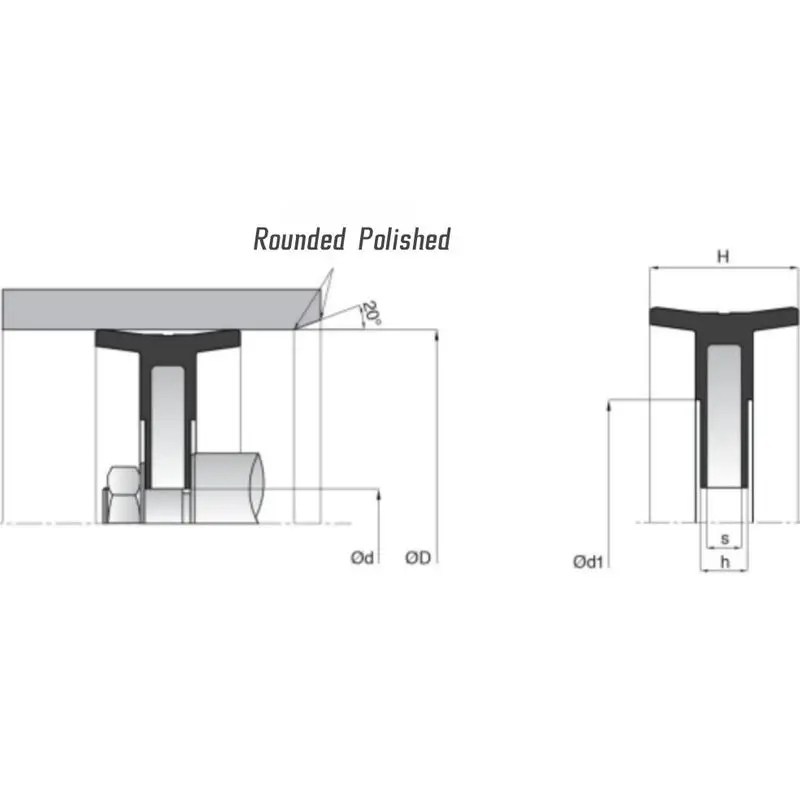

| D (H11) | d (h9) | H | d1 | s | h | MATERIAL | |
| KL66-020 | 20 | 5.2 | 8 | 12.2 | 1 | 1.4 | NBR |
| KL66-025 | 25 | 8 | 12 | 14.5 | 3 | 4 | NBR |
| KL66-025/2 | 25.4 | 6.35 | 12.7 | 9.4 | 2.5 | 3.5 | NBR |
| KL66-026 | 26 | 8 | 12 | 15.5 | 3 | 4 | NBR |
| KL66-028 | 28.58 | 6.35 | 12.7 | 12.58 | 2.5 | 3.5 | NBR |
| KL66-031 | 31.75 | 6.35 | 14.29 | 15.75 | 2.5 | 3.5 | NBR |
| KL66-032 | 32 | 8 | 15 | 16 | 3 | 4 | NBR |
| KL66-035 | 35 | 8 | 15 | 19 | 3 | 4 | NBR |
| KL66-036 | 36 | 8 | 15 | 20 | 3 | 4 | NBR |
| KL66-040 | 40 | 10 | 18 | 23 | 4 | 5 | NBR |
| KL66-044 | 44.45 | 6.35 | 14.28 | 23.46 | 2.5 | 3.5 | NBR |
| KL66-050 | 50 | 10 | 18 | 29 | 4 | 5 | NBR |
| KL66-050/2 | 50 | 16 | 20.5 | 25 | 4 | 5 | NBR |
| KL66-050/7 | 50.8 | 9.53 | 15.88 | 15.75 | 3 | 4 | NBR |
| KL66-057 | 57.15 | 9.53 | 15.88 | 34.65 | 3 | 4 | NBR |
| KL66-060 | 60 | 12 | 22 | 36.8 | 4 | 5 | NBR |
| KL66-060/1 | 60.33 | 9.53 | 15.88 | 37.83 | 3 | 4 | NBR |
| KL66-062 | 62 | 15 | 22 | 39 | 5 | 6 | NBR |
| KL66-063 | 63 | 12 | 22 | 40.5 | 5 | 6 | NBR |
| KL66-063/4 | 63.5 | 9.53 | 15.88 | 41 | 3 | 4 | NBR |
| KL66-069 | 69.85 | 9.53 | 19.05 | 47.35 | 4 | 5.5 | NBR |
| KL66-070 | 70 | 12 | 22 | 47 | 5 | 6 | NBR |
| KL66-073 | 73.03 | 9.53 | 19.05 | 48.03 | 4 | 5.5 | NBR |
| KL66-075 | 75 | 15 | 22 | 52 | 5 | 6 | NBR |
| KL66-075/1 | 75 | 12 | 22.5 | 52 | 5 | 6 | NBR |
| KL66-076 | 76.2 | 12.7 | 19.05 | 51.2 | 4 | 5 | NBR |
| KL66-080 | 80 | 16 | 25 | 55 | 5 | 6.5 | NBR |
| KL66-080/3 | 80 | 12 | 25 | 55 | 5 | 6.5 | NBR |
| KL66-080/4 | 80 | 16 | 22.5 | 55.2 | 5 | 6.5 | NBR |
| KL66-080/5 | 80 | 20 | 22.5 | 55.2 | 5 | 6.5 | NBR |
| KL66-082 | 82.55 | 12.7 | 19.05 | 57.55 | 4 | 5 | NBR |
| KL66-088 | 88.9 | 12.7 | 22.23 | 63.9 | 5 | 6 | NBR |
| KL66-090 | 90 | 16 | 25 | 65 | 5 | 6.5 | NBR |
| KL66-100 | 100 | 16 | 25 | 75 | 5 | 6.5 | NBR |
| KL66-100/1 | 100 | 20 | 25 | 75 | 5 | 6.5 | NBR |
| KL66-100/4 | 100 | 12 | 25 | 75 | 5 | 6.5 | NBR |
| KL66-100/6 | 100 | 20 | 26 | 75 | 5 | 6.5 | NBR |
| KL66-102 | 102 | 16 | 25 | 77 | 5 | 6.5 | NBR |
| KL66-107 | 107.95 | 12.7 | 22.23 | 82.96 | 5 | 6 | NBR |
| KL66-110 | 110 | 18 | 25 | 85 | 6 | 7.5 | NBR |
| KL66-114 | 114.3 | 19.05 | 22.23 | 79.3 | 5 | 6 | NBR |
| KL66-125 | 125 | 20 | 30 | 90 | 8 | 10 | NBR |
| KL66-125/1 | 125 | 20 | 26 | 90 | 6 | 7.5 | NBR |
| KL66-127 | 127 | 19.05 | 25.4 | 92 | 6 | 7.5 | NBR |
| KL66-130 | 130 | 20 | 29 | 95 | 8 | 10 | NBR |
| KL66-140 | 140 | 20 | 30 | 95 | 10 | 12 | NBR |
| KL66-150 | 150 | 20 | 30 | 105 | 10 | 12 | NBR |
| KL66-152 | 152.4 | 19.05 | 25.4 | 107.4 | 6 | 7.5 | NBR |
| KL66-160 | 160 | 27 | 31 | 115 | 10 | 12 | NBR |
| KL66-160/3 | 160 | 20 | 30 | 130 | 10 | 10.7 | NBR |
| KL66-165 | 165.1 | 19.05 | 25.4 | 120.1 | 6 | 7.5 | NBR |
| KL66-180 | 180 | 27 | 31 | 135 | 10 | 12 | NBR |
| KL66-190 | 190 | 20 | 30 | 160.4 | 10 | 12 | NBR |
| KL66-190/1 | 190 | 12 | 35 | 140 | 10 | 13 | NBR |
| KL66-200 | 200 | 27 | 35 | 150 | 12 | 15 | NBR |
| KL66-200/2 | 200 | 20 | 35 | 150 | 12 | 15 | NBR |
| KL66-200/5 | 200 | 30 | 35 | 150 | 8 | 10.6 | NBR |
| KL66-202 | 202.2 | 31.75 | 38.1 | 150.5 | 10 | 11 | NBR |
| KL66-250 | 250 | 30 | 35 | 200 | 12 | 16.5 | NBR |
| KL66-253 | 253 | 44.45 | 41.27 | 180 | 12 | 15 | NBR |
| KL66-260 | 260 | 16 | 35 | 210 | 12 | 15.5 | NBR |
| KL66-320 | 320 | 36 | 40 | 278.5 | 15 | 18.6 | NBR |
| KL66-400 | 400 | 40 | 50 | 320 | 20 | 23 | NBR |
