NBR Pneumatic Piston Seals Double Acting For Short Stroke Pneumatic Cylinders
product detail
Product Details
Name:
Double Acting Piston Seal
Material:
NBR
Pressure (max) Bar:
12
Temperature (max) °C:
-30/+105
Sliding Speed (max)- M/s:
1.0
Application:
Short Stroke Pneumatic Cylinders
Payment & Shipping Terms
Minimum Order Quantity:
100
Packaging Details:
Customizable packaging
Delivery Time:
15
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs /months

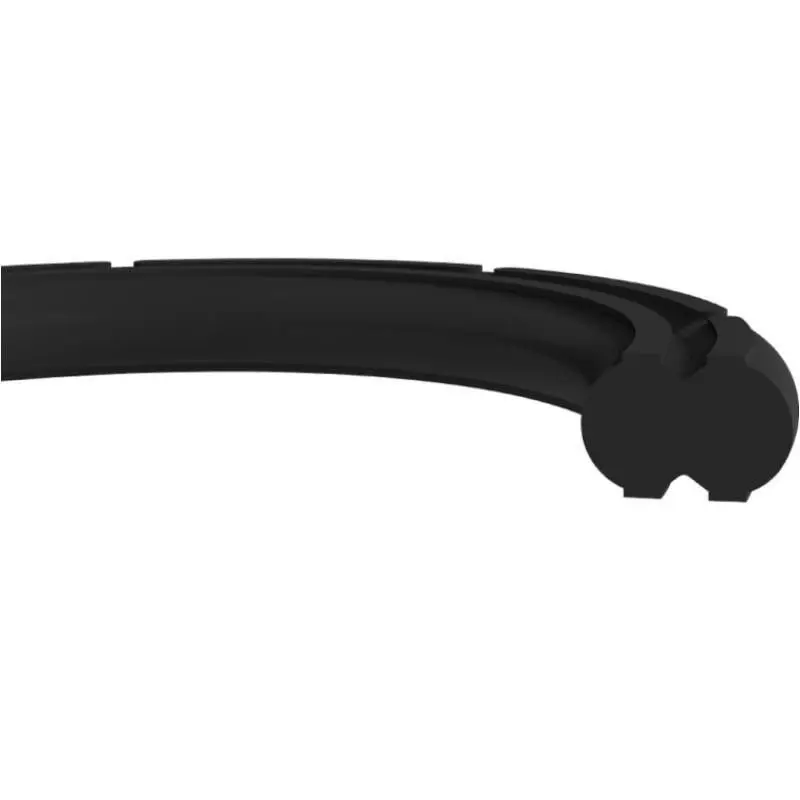

KL70 pneumatic piston seal is a double acting piston seal designed to be used in small grooves.
Advantages
• Easy installation
• Low friction
• Good sealing with its special design
• Double acting
• Can be used in small housing dimensions
Area of Application
• Short stroke pneumatic cylinders
• Valves
• Recommended for use in cylinders according ISO and CETOP.

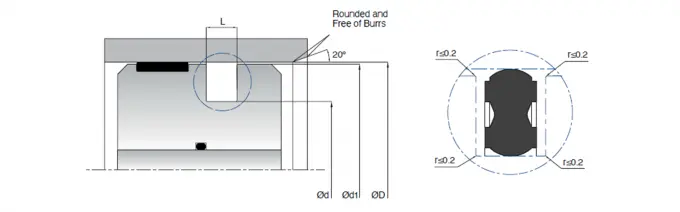

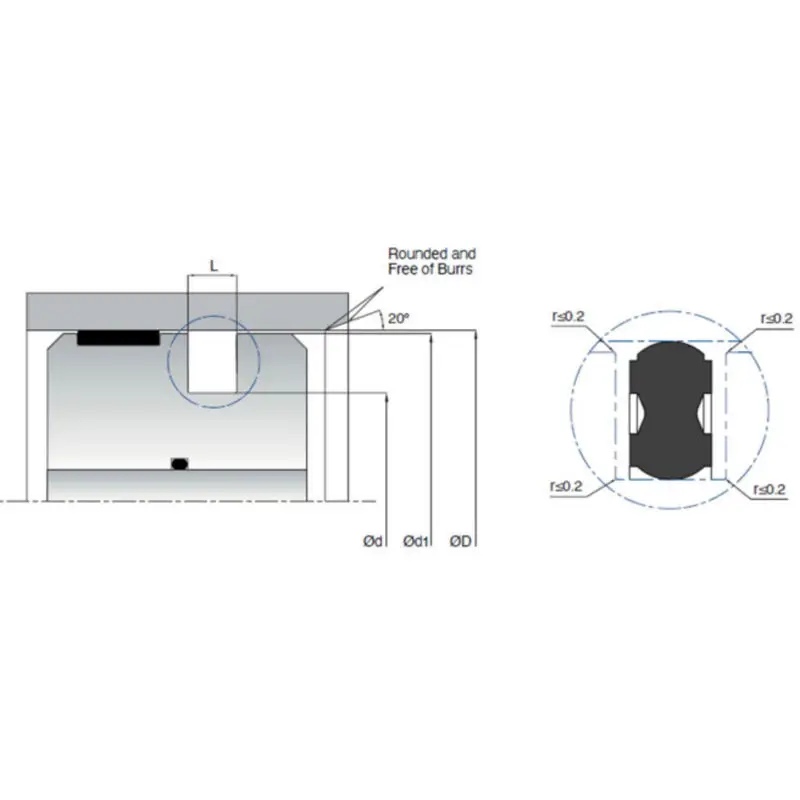

| D (H11) | d (h9) | L (+0.2/-0) | d1 (±0.1) | MATERIAL | |
| KL70-008 | 8 | 4 | 1.6 | 7.7 | NBR |
| KL70-010 | 10 | 5.4 | 1.8 | 9.7 | NBR |
| KL70-012 | 12 | 7.4 | 1.8 | 11.7 | NBR |
| KL70-016 | 16 | 11.4 | 1.8 | 15.7 | NBR |
| KL70-018 | 18 | 13.4 | 1.8 | 17.7 | NBR |
| KL70-020 | 20 | 14 | 2.4 | 19.5 | NBR |
| KL70-025 | 25 | 17 | 3.2 | 24.5 | NBR |
| KL70-027 | 27 | 19 | 3.2 | 26.5 | NBR |
| KL70-032 | 32 | 24 | 3.2 | 31.5 | NBR |
| KL70-040 | 40 | 32 | 3.2 | 39.5 | NBR |
| KL70-050 | 50 | 40 | 4 | 49.5 | NBR |
| KL70-060 | 60 | 48 | 4 | 59.5 | NBR |
| KL70-063 | 63 | 53 | 4 | 62.4 | NBR |
| KL70-080 | 80 | 65 | 6 | 79.4 | NBR |
| KL70-100 | 100 | 85 | 6 | 99.4 | NBR |
| KL70-125 | 125 | 110 | 6 | 124.3 | NBR |
| KL70-140 | 140 | 125 | 6 | 139.3 | NBR |
| KL70-150 | 150 | 135 | 6 | 149.3 | NBR |
| KL70-160 | 160 | 145 | 6 | 159.3 | NBR |
| KL70-160/1 | 160 | 140 | 8 | 159.3 | NBR |
| KL70-180 | 180 | 160 | 8 | 179.3 | NBR |
| KL70-200 | 200 | 180 | 8 | 199 | NBR |
| KL70-250 | 250 | 230 | 8 | 249 | NBR |
| KL70-300 | 300 | 280 | 8 | 299 | NBR |
