POM Hydraulic Guide Ring Low Friction For Telescopic Cylinders
product detail
Product Details
Name:
POM Hydraulic Guide Ring
Material:
POM
Sliding Speed (max)- M/s:
1.0
Style:
Hydraulic Guiding Elements
Application:
Telescopic Cylinders / Cranes
Temperature (max) °C:
-40/+100
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

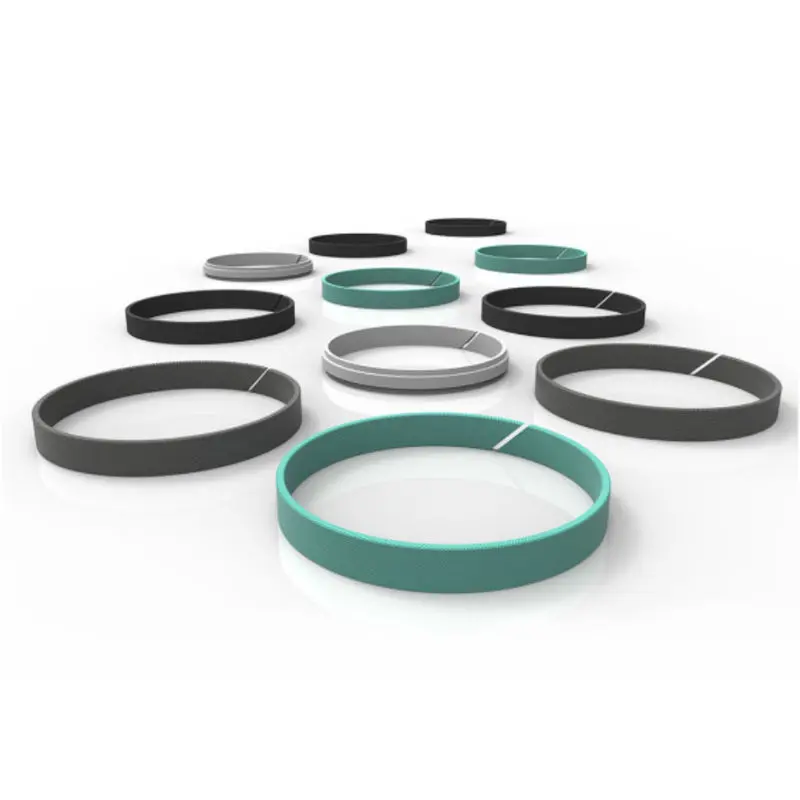

KL55 is a «L» formed POM guide ring widely preffered in telescopic cylinders. The dimensions and the quantities may change up to the cylinder strokes. Recommended to use with KL08, KL12 type rod urings.
KEY FEATURES:
• High compressive strength material.
• Internally lubricated.
• Offers high bearing load capacity over a broad range of temperatures.
• Manufactured to very tight tolerances.
• Compatible with wide range of fluids including water-based fluids and phosphate esters.
Advantages
• Flexible guide ring configuration
• Suitable for insufficient lubrication
• Easy installation
• Low coefficient of friction
• High dimensional stability
Area of Application
• Telescopic cylinders
• Mobile machinery
• Standard industrial cylinders
• Cranes

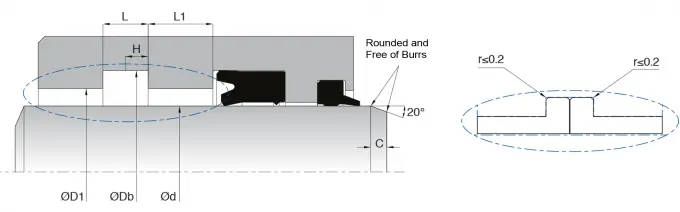

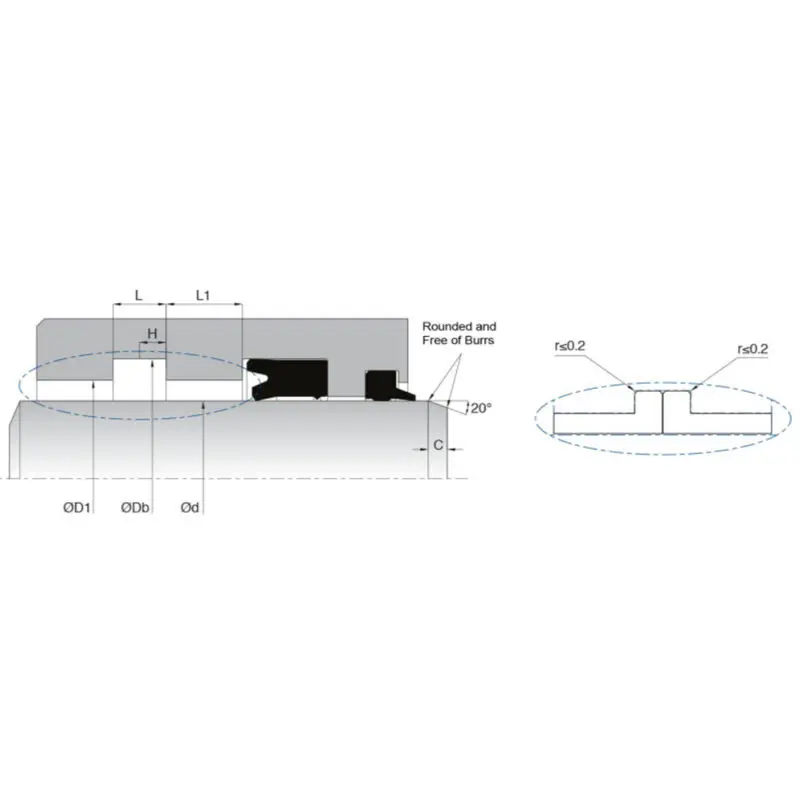

| d (f8) | Db (H11) | D1 (H8) | L (+0.25/-0) | L1 | H | MATERIAL | |
| KL55-045 | 45 | 53 | 50 | 8 | 12 | 4 | POM |
| KL55-061 | 61 | 69 | 65 | 8 | 12 | 4 | POM |
| KL55-075 | 75 | 85 | 80 | 10 | 20 | 5 | POM |
| KL55-075/1 | 75 | 85 | 80 | 10 | 25 | 5 | POM |
| KL55-075/2 | 75 | 85 | 81 | 10 | 25 | 5 | POM |
| KL55-095 | 95 | 105 | 100 | 10 | 20 | 5 | POM |
| KL55-095/1 | 95 | 105 | 100 | 10 | 25 | 5 | POM |
| KL55-095/2 | 95 | 105 | 101 | 10 | 25 | 5 | POM |
| KL55-115 | 115 | 125 | 120 | 10 | 20 | 5 | POM |
| KL55-115/1 | 115 | 125 | 120 | 10 | 25 | 5 | POM |
| KL55-115/2 | 115 | 125 | 121 | 10 | 25 | 5 | POM |
| KL55-135 | 135 | 145 | 140 | 10 | 20 | 5 | POM |
| KL55-135/1 | 135 | 145 | 140 | 10 | 25 | 5 | POM |
| KL55-135/2 | 135 | 145 | 141 | 10 | 25 | 5 | POM |
| KL55-160 | 160 | 170 | 165 | 10 | 20 | 5 | POM |
| KL55-160/1 | 160 | 170 | 166 | 10 | 25 | 5 | POM |
| KL55-185 | 185 | 195 | 191 | 10 | 25 | 5 | POM |
| KL55-212 | 212 | 222 | 218 | 10 | 25 | 5 | POM |
| KL55-215 | 215 | 225 | 221 | 10 | 25 | 5 | POM |
