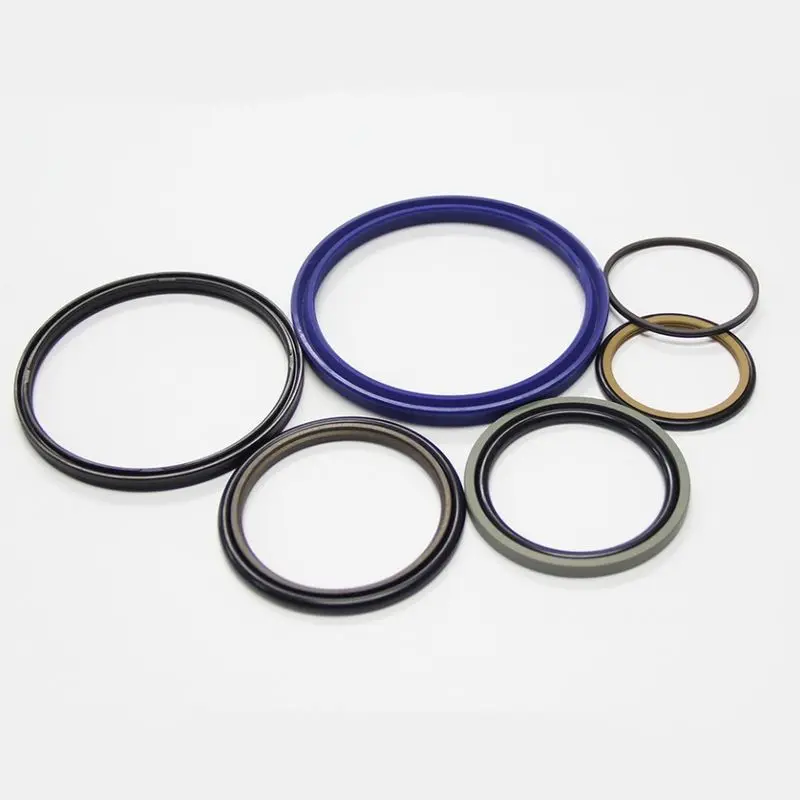

PSZ Type Hydraulic Metallurgy Mechanical Seal Kits Standard Size Or Custom Size
product detail
Product Details
Material:
PTFE/NBR PTFE/FKM
Working Pressures:
60 Mpa
Temperature (max) °C:
-60～+280
Working Speed - M/s:
Reciprocating≤5m/s
Style:
Piston Seals
Seal Form:
Reciprocating/Unidirectional Sealing
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

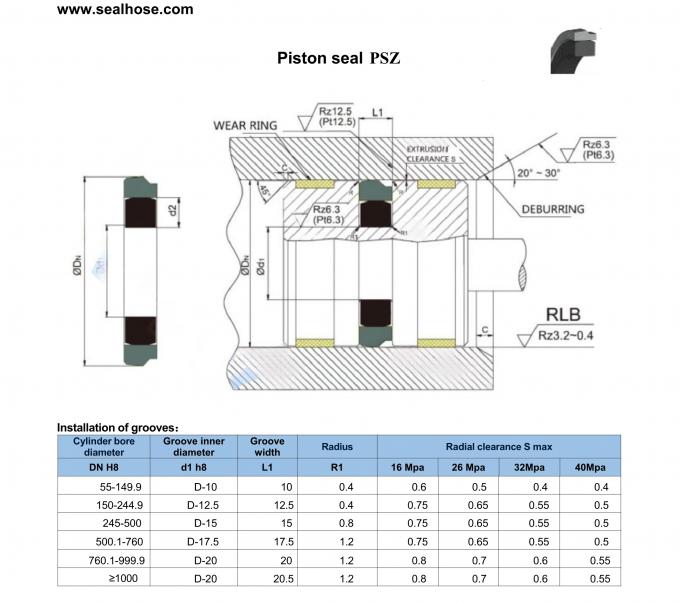

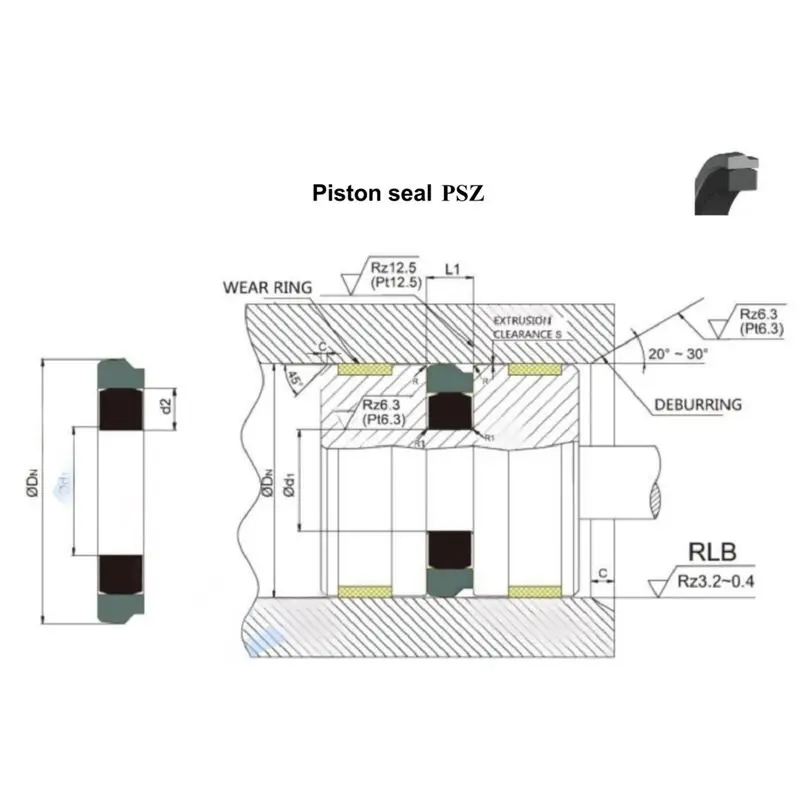

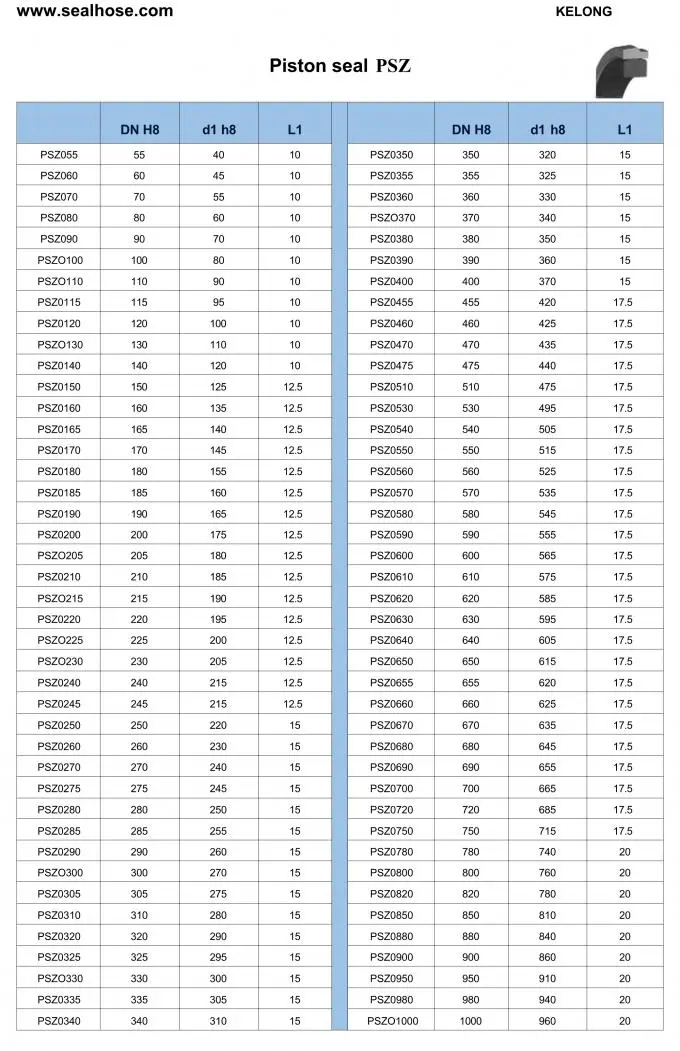

PSZ
Purpose and performance:
Suitable for hydraulic cylinder sealing of heavy machinery and metallurgical equipment, with strong pressure resistance and corrosion resistance, good thermal conductivity, anti-distortion structure, low friction, No crawling.
Working conditions:
Temperature range: -60~+280℃
Working speed: 5m/s
Working pressure: 60Mpa
Media: general hydraulic oil, petroleum-based hydraulic oil, oil-in-water emulsion (HFA, HFB), water glycol (HFC), biodegradable hydraulic oil
Oil, air, water, etc. Phosphate ester-based hydraulic oil requires FKM fluoroelastomer O-rings.
Standard materials:
Seal ring: filled with polytetrafluoroethylene PTFE
0-ring: nitrile rubber NBR or fluorine rubber FKM
