Small High Pressure 1 And 2 Ply Steel Braided Rubber Hose For Petroleum Based Hydraulic Oil
product detail

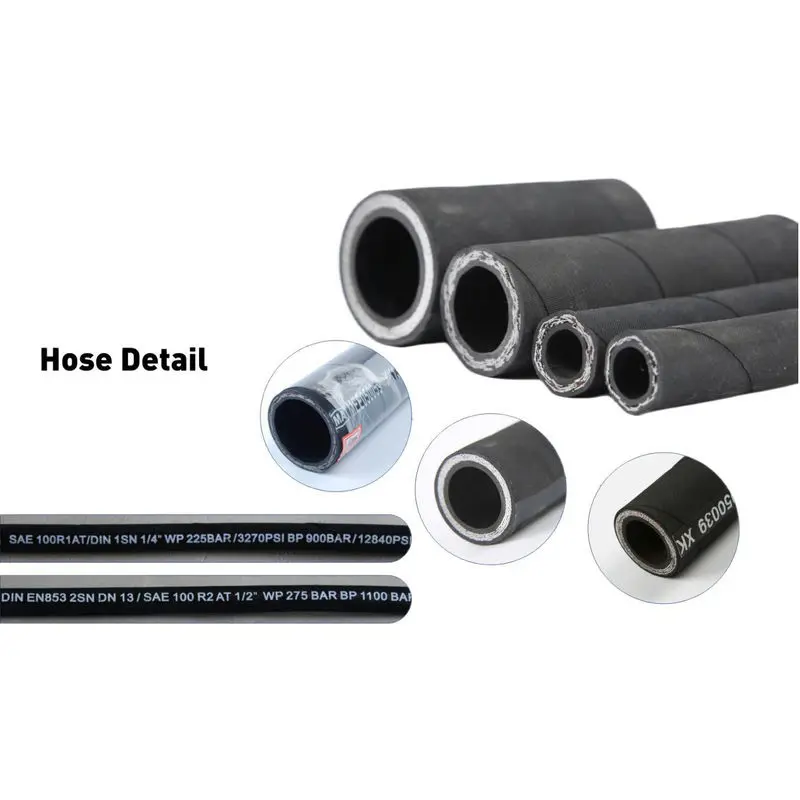

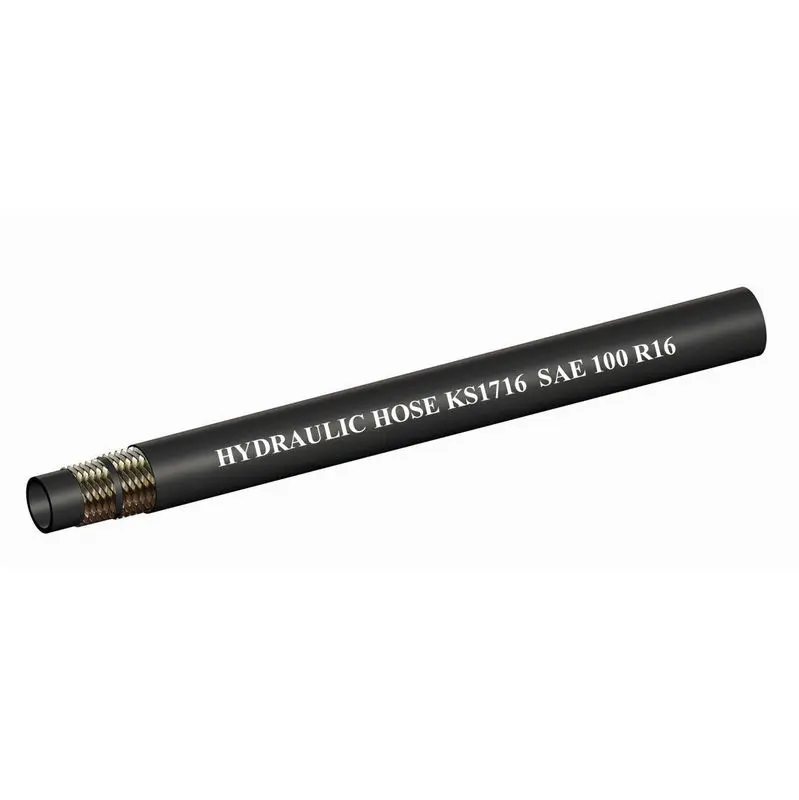

Small High Pressure 1 And 2 Ply Steel Wire Reinforced Rubber Hydraulic Hose Construction Acc. To SAE 100 R16
TUBE:
Oil-resistant synthetic rubber inner layer + high tensile steel braided layer + weather-resistant synthetic rubber layer
Reinforcement:
One or Two braids of high tensile steel wire
Cover:Abrasion and ozone resistant synthetic rubber
Note:Various covers available
Temperature range:-40°C to 121°C / -40°F to +249.8°F

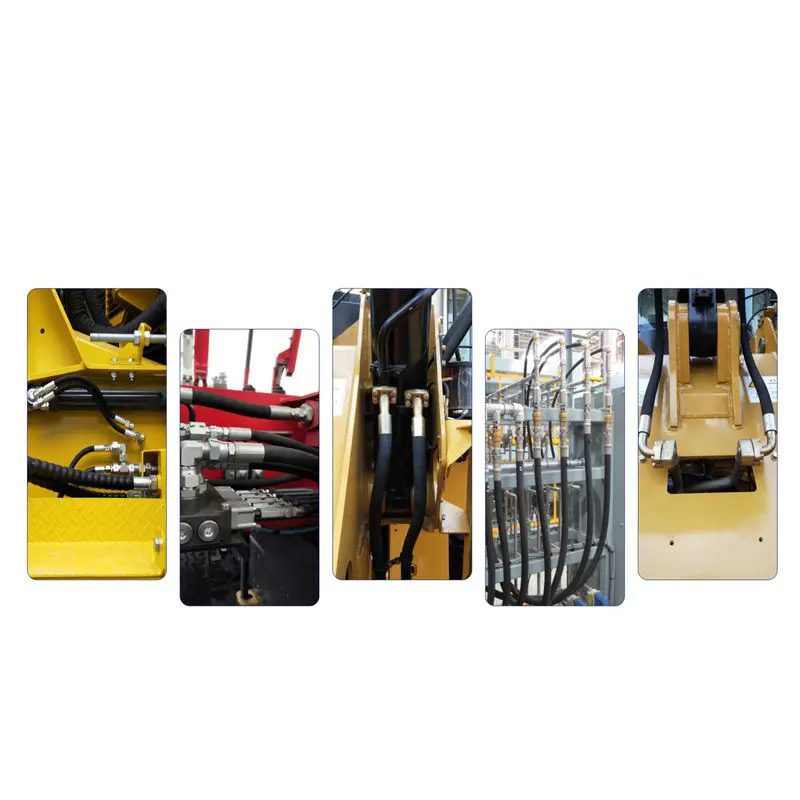

Applications:Suitable for petroleum-based hydraulic oil.
TYPE | Dash size | I.D | W.D | O.D | M.D | Working pressure | Proof pressure | Min Burst pressure | Min Bend radius | W.T | ||||||||
W.P | P. P | B.P | Min B.R | |||||||||||||||
mm | 1/16 | Inch | Min | Max | Max | Max | Min | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | Inch | mm | Kg/m | |
KS1716-04 | 6.3 | -4 | 1/4 | 6.2 | 7.0 | 12.3 | 14.5 | 0.8 | 1.5 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 1.97 | 50 | 0.3 |
KS1716-05 | 8 | -5 | 5/16 | 7.7 | 8.5 | 13.3 | 15.7 | 0.8 | 1.5 | 29.7 | 4305 | 59.5 | 8625 | 119 | 17255 | 2.17 | 55 | 0.34 |
KS1716-06 | 10 | -6 | 3/8 | 9.3 | 10.1 | 15.9 | 18.8 | 0.8 | 1.5 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 2.56 | 65 | 0.42 |
KS1716-08 | 12.5 | -8 | 1/2 | 12.3 | 13.5 | 19.0 | 22.0 | 0.8 | 1.5 | 24.5 | 3550 | 49 | 7105 | 98 | 14210 | 3.54 | 90 | 0.54 |
KS1716-10 | 16 | -10 | 5/8 | 15.5 | 16.7 | 22.5 | 25.4 | 0.8 | 1.5 | 19.2 | 2780 | 38.5 | 5580 | 77 | 11165 | 3.94 | 100 | 0.68 |
KS1716-12 | 19 | -12 | 3/4 | 18.6 | 19.8 | 26.3 | 29.0 | 0.8 | 1.5 | 15.7 | 2275 | 31.5 | 4565 | 63 | 9135 | 4.72 | 120 | 0.8 |
KS1716-16 | 25 | -16 | 1 | 25.0 | 26.4 | 34.0 | 36.6 | 0.8 | 1.5 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 5.91 | 150 | 1.15 |
KS1716-20 | 31.5 | -20 | 1-1/4 | 31.4 | 33.0 | 41.9 | 44.3 | 0.8 | 2.0 | 11.3 | 1635 | 22.7 | 3290 | 45.5 | 6595 | 8.27 | 210 | 1.83 |
