Three Piece Hydraulic Piston Seals With Elastomeric Sealing Element / Guide Backup Rings
product detail
Product Details
Material:
NBR / FABRIC NBR / POM
Pressure (max) Bar:
400
Temperature (max) °C:
-30/+100
Sliding Speed (max)- M/s:
0.5
Style:
Hydraulic Piston Seals
Application:
Mining Industry / Marine Hydraulics / Iron And Steel Industry / Presses
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
Three Piece Double Acting Compact Seal With One Elastomeric Sealing Element And Two Guide Backup Rings
KL28 is a three piece double acting compact seal which consists of one fabric reinforced elastomeric sealing element and two thermoplastic guide backup rings. The self-lubricating sealing ring allow KL28 to work safely in systems with insufficient lubrication as well as rough surfaces
Advantages
• Good dynamic and static sealing
• Good sealing at heavy duty applications
• Long service life
• High wear resistance
• Free of stick-slip even at long stand by
• Good sealing at heavy duty applications
• Long service life
• High wear resistance
• Free of stick-slip even at long stand by
Area of Application
• Mining industry
• Marine hydraulics
• Iron and steel industry
• Presses

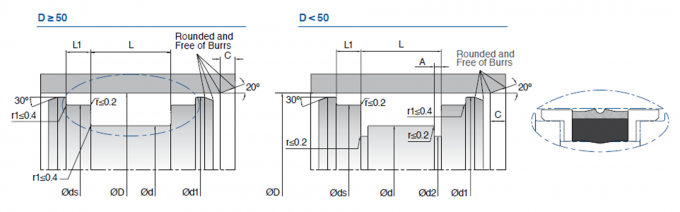

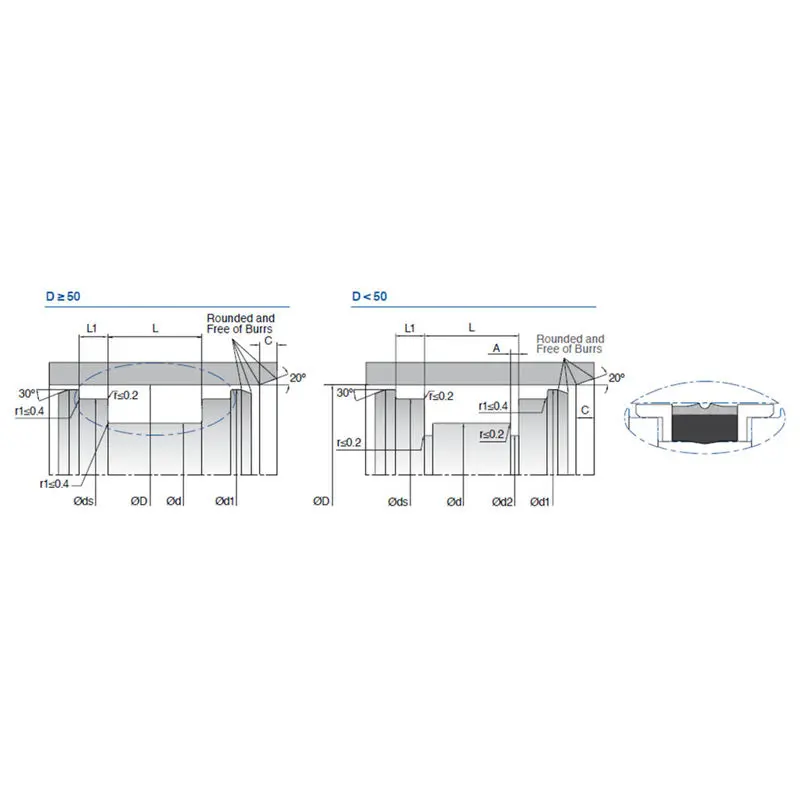

| D (H10) | d (h11) | L (+0.2/-0) | ds (h8) | d1 (±0.1) | d2 (+0/-0.1) | A (+0.1/-0) | L1 | C | MATERIAL | |
| KL28 025-017 | 25 | 17 | 13.5 | 21 | 24.4 | 14 | 2.1 | 3.2 | 4 | FB |
| KL28 030-021 | 30 | 21 | 13.5 | 27 | 29.4 | 21 | 2.2 | 2.1 | 4 | FB |
| KL28 030-022 | 30 | 22 | 13.5 | 26 | 29.4 | 19 | 2.1 | 3.2 | 4 | FB |
| KL28 032-024 | 32 | 24 | 15.5 | 28 | 31.4 | 21 | 3.1 | 3.2 | 4 | FB |
| KL28 035-027 | 35 | 27 | 15.5 | 31 | 34.4 | 24 | 3.1 | 3.2 | 4 | FB |
| KL28 040-032 | 40 | 32 | 15.5 | 36 | 39.4 | 29 | 3.1 | 3.2 | 4 | FB |
| KL28 045-037 | 45 | 37 | 15.5 | 41 | 44.4 | 34 | 3.1 | 3.2 | 4 | FB |
| KL28 050-038 | 50 | 38 | 20.5 | 46 | 49.4 | - | - | 4.2 | 4 | FB |
| KL28 060-048 | 60 | 48 | 20.5 | 56 | 59.4 | - | - | 4.2 | 4 | FB |
| KL28 063-051 | 63 | 51 | 20.5 | 59 | 62.4 | - | - | 4.2 | 4 | FB |
| KL28 065-053 | 65 | 53 | 20.5 | 61 | 64.4 | - | - | 4.85 | 4 | FB |
| KL28 070-058 | 70 | 58 | 20.5 | 66 | 69.4 | - | - | 4.2 | 4 | FB |
| KL28 075-063 | 75 | 63 | 20.5 | 71 | 69.4 | - | - | 4.2 | 4 | FB |
| KL28 080-065 | 80 | 65 | 20 | 76 | 78.5 | - | - | 5 | 5 | FB |
| KL28 080-066 | 80 | 66 | 22.5 | 76 | 79.4 | - | - | 5.2 | 4.5 | FB |
| KL28 085-071 | 85 | 71 | 22.5 | 81 | 84.4 | - | - | 5.2 | 4.5 | FB |
| KL28 090-076 | 90 | 76 | 22.5 | 86 | 89.4 | - | - | 5.2 | 4.5 | FB |
| KL28 100-086 | 100 | 86 | 22.5 | 96 | 99.4 | - | - | 5.2 | 4.5 | FB |
| KL28 110-096 | 110 | 96 | 22.5 | 106 | 109.4 | - | - | 5.2 | 4.5 | FB |
| KL28 115-101 | 115 | 101 | 22.5 | 111 | 114.4 | - | - | 5.2 | 4.5 | FB |
| KL28 120-106 | 120 | 106 | 22.5 | 116 | 119.4 | - | - | 5.2 | 4.5 | FB |
| KL28 125-103 | 125 | 103 | 26.5 | 121 | 124.4 | - | - | 5.2 | 6 | FB |
| KL28 125-108 | 125 | 108 | 26.5 | 121 | 124.4 | - | - | 7.2 | 5 | FB |
| KL28 140-123 | 140 | 123 | 26.5 | 136 | 139.4 | - | - | 7.2 | 5 | FB |
| KL28 150-133 | 150 | 133 | 26.5 | 146 | 149.4 | - | - | 7.2 | 5 | FB |
| KL28 160-140 | 160 | 140 | 25 | 155 | 158 | - | - | 6.3 | 6 | FB |
| KL28 160-143 | 160 | 143 | 26.5 | 156 | 159.4 | - | - | 7.2 | 5 | FB |
| KL28 170-153 | 170 | 153 | 26.5 | 166 | 169.4 | - | - | 7.2 | 5 | FB |
| KL28 180-163 | 180 | 163 | 26.5 | 176 | 179.4 | - | - | 7.2 | 5 | FB |
| KL28 200-180 | 200 | 180 | 31.5 | 196 | 199.4 | - | - | 9.2 | 6 | FB |
| KL28 220-200 | 220 | 200 | 31.5 | 216 | 219.4 | - | - | 9.2 | 6 | FB |
| KL28 250-225 | 250 | 225 | 31.5 | 246 | 249.4 | - | - | 6.6 | 6 | FB |
| KL28 250-230 | 250 | 230 | 31.5 | 246 | 249.4 | - | - | 9.2 | 6 | FB |
