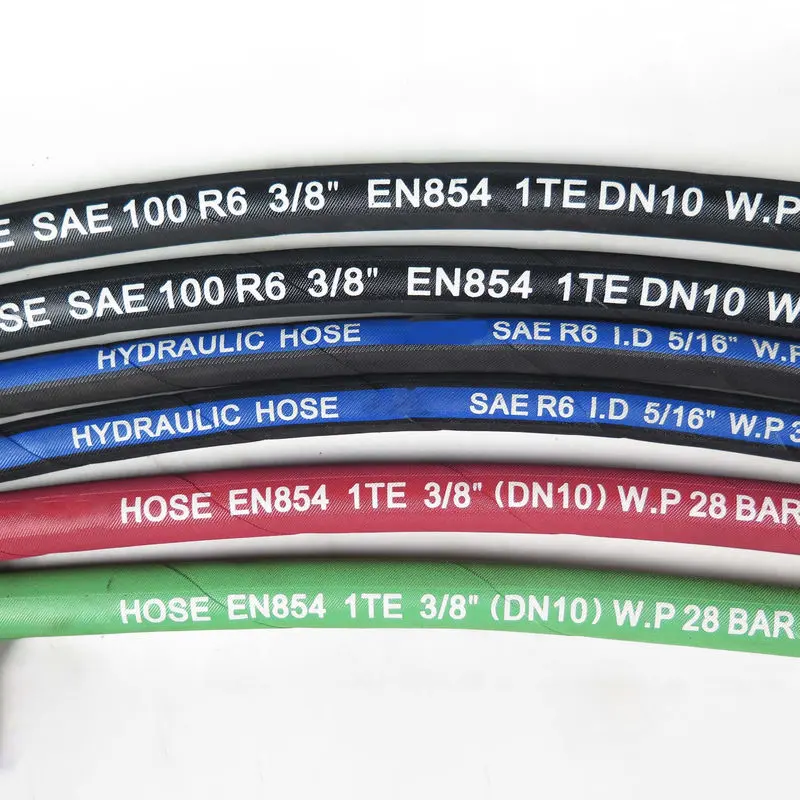

Top Quality EN853 SAE 100 R6 Oil Air Water Hydraulic Hose R6 Textile Rubber Hose
product detail
Wire Braid Hydraulic Hose Meets SAE 100 R6

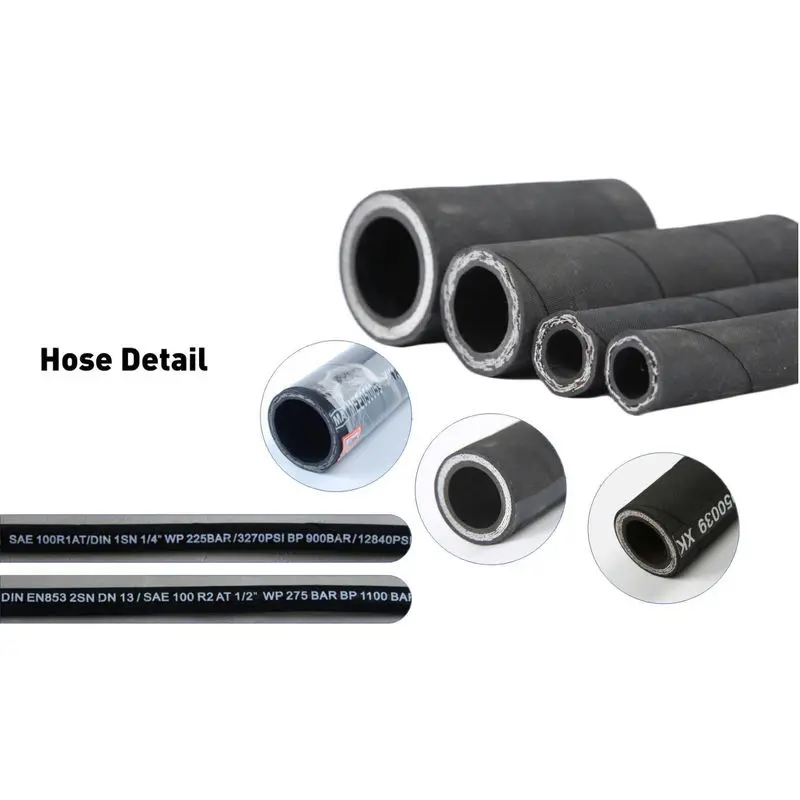

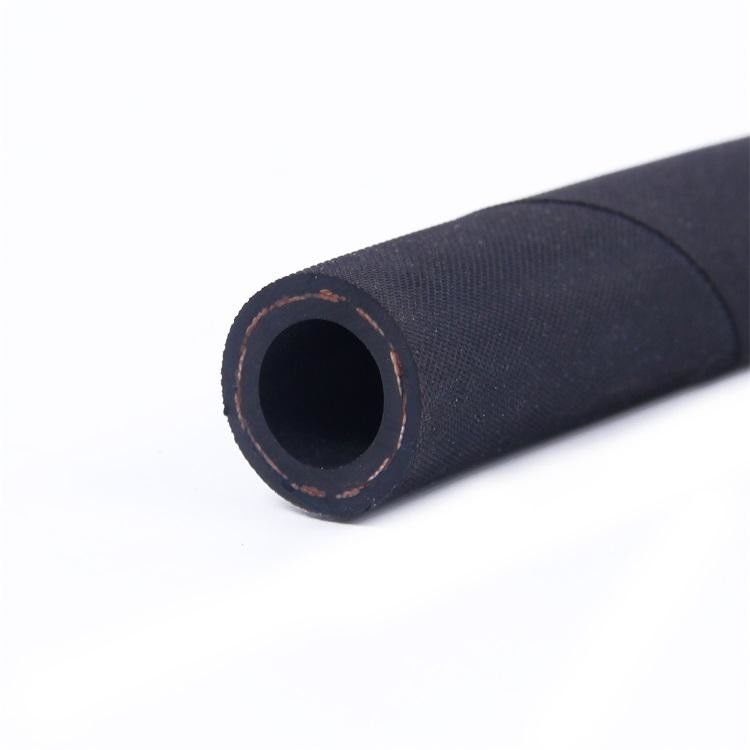

This hose consists of three main parts: an inner tube, a reinforcing layer, and an outer layer.
The inner tube is made of black oil-resistant synthetic rubber, which is resistant to the erosion of oily liquids.
The reinforcement layer is woven from high-stretch ultra-flexible steel wire, adding strength and durability to the hose.
The outer layer is made of black oil-resistant, weather-resistant and wear-resistant synthetic rubber, which can resist the influence of the external environment. In addition, the hose is available in a variety of coverings. It has an operating temperature range of -40 ° C to 100 ° C, or -40 ° F to + 212 ° F. Suitable for delivery of water based, petroleum based and biodegradable hydraulic fluids.
| SAE 100 R6 textile braided hydraulic hose | ||||||||||||||
| Hose code | Size | Dash size | ID | OD | Working pressure | Proof pressure | Min burst pressure | Min bending | Weight | |||||
| mm | inch | min | max | max | MPa | psi | MPa | psi | MPa | psi | mm | kg/m | ||
| SAE100R6-01 | 5 | 3/16 | -3 | 4.2 | 5.4 | 10.3 | 3.5 | 510 | 7 | 1015 | 14 | 2030 | 50 | 0.1 |
| SAE100R6-02 | 6.3 | 1/4 | 4 | 5.6 | 7.2 | 11.9 | 2.8 | 410 | 5.6 | 810 | 11.2 | 1620 | 65 | 0.13 |
| SAE100R6-03 | 8 | 5/16 | 5 | 7.2 | 8.8 | 13.5 | 2.8 | 410 | 5.6 | 810 | 11.2 | 1620 | 75 | 0.15 |
| SAE100R6-04 | 10 | 3/8 | 6 | 8.7 | 10.3 | 15.1 | 2.8 | 410 | 5.6 | 810 | 11.2 | 1620 | 75 | 0.18 |
| SAE100R6-05 | 12.5 | 1/2 | 8 | 11.9 | 13.5 | 19 | 2.8 | 410 | 5.6 | 810 | 11.2 | 1620 | 100 | 0.26 |
| SAE100R6-06 | 16 | 5/8 | -10 | 15.1 | 16.7 | 22.2 | 2.4 | 350 | 4.8 | 710 | 9.8 | 1420 | 125 | 0.34 |
| SAE100R6-07 | 19 | 3/4 | -12 | 18.3 | 19.9 | 25.4 | 2.1 | 310 | 4.2 | 610 | 8.4 | 1220 | 150 | 0.4 |
