Wear Resistant Piston Rod Seals Single Acting Hydraulic Sealing Elements
product detail
Product Details
Style:
Piston Rod Seals Single Acting
Material:
NBR / PU
Pressure (max) Bar:
400
Temperature (max) °C:
-30/+100
Sliding Speed (max)- M/s:
0.5
Application:
Mining Industry / Scrap Metal Presses
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

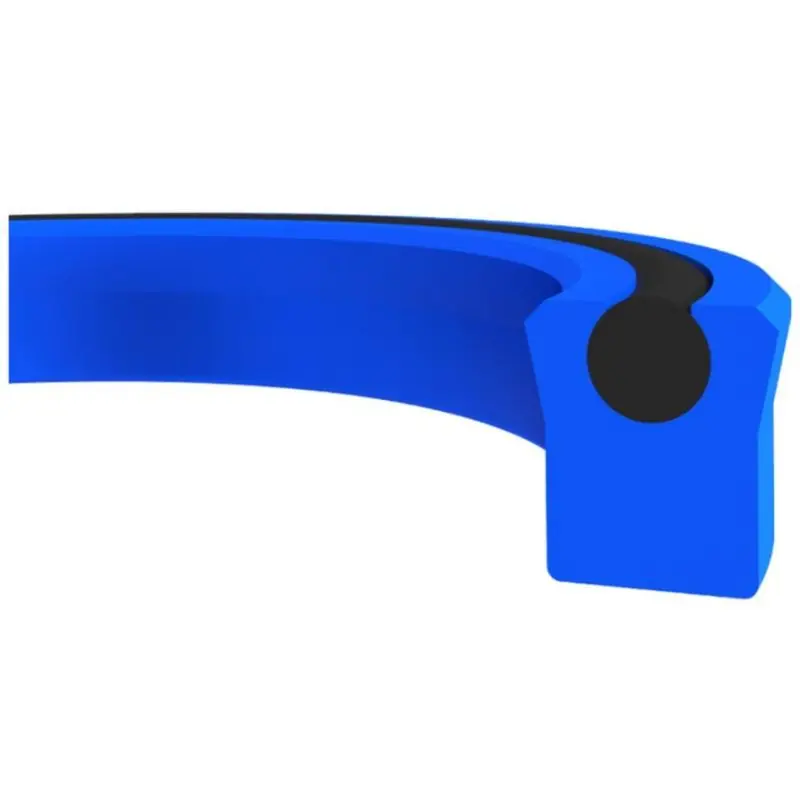

KL23 Single Acting Hydraulic Sealing Element Consisting Of A Specially Formed PU U-Ring And An Elastomer O-Ring
KL23 is a single acting hydraulic sealing element consisting of a specially formed polyurethane u-ring and an elastomer o-ring. It is designed to be used in systems where pressure changes and shock pressures occur, in operations with vibration, in applications with long-term locked applications.
Advantages
• Superior static and dynamic sealing effect
• Design providing good sealing performance at shock, low and variable pressures
• Safely operating with the elastomer o-ring in long duration locking systems
• High wear resistance
Area of Application
• Mining industry
• Iron and steel industry
• Scrap metal presses
• Mobile machinery
• Marine hydraulics

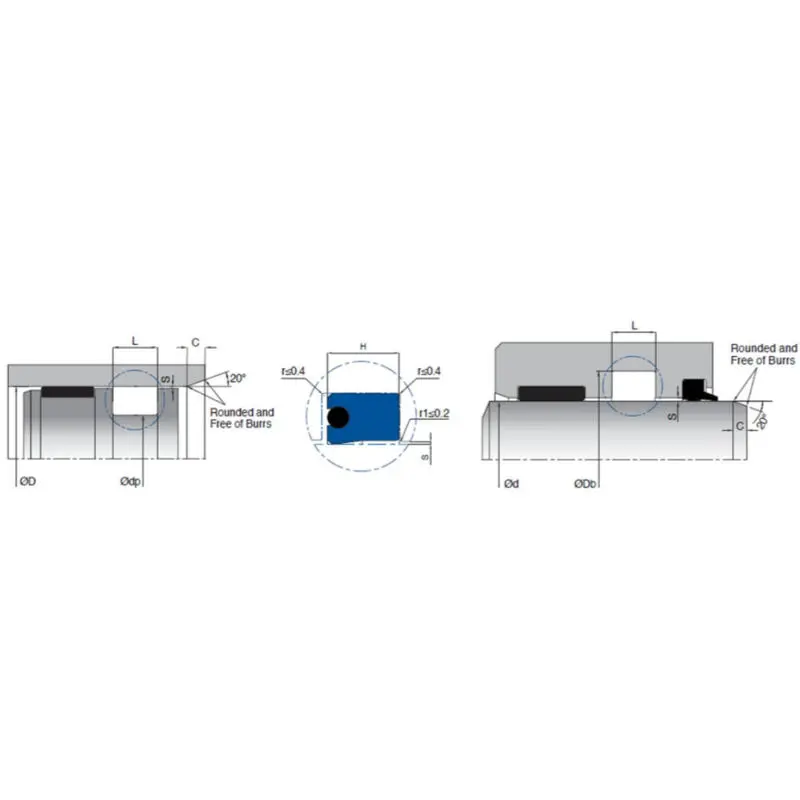

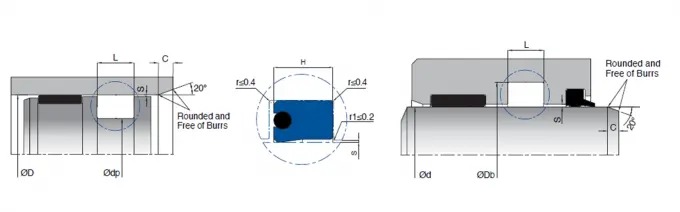

| d(f7) dp(h11) | Db(H10) D(H10) | L (+0.2/-0) | H | C | MATERIAL | |
| KL23-019 | 19.05 | 25.4 | 7 | 6.35 | 3 | PU |
| KL23-022 | 22.23 | 28.58 | 3.5 | 3.18 | 3 | PU |
| KL23-025 | 25.4 | 31.75 | 7 | 6.35 | 3 | PU |
| KL23-025/1 | 25.4 | 34.93 | 5.2 | 4.76 | 4 | PU |
| KL23-025/2 | 25.4 | 34.93 | 8.7 | 7.94 | 4 | PU |
| KL23-025/3 | 25.4 | 38.1 | 7 | 6.35 | 4.5 | PU |
| KL23-025/4 | 25 | 32 | 8 | 7 | 4.5 | PU |
| KL23-030 | 30 | 40 | 7 | 6 | 5 | PU |
| KL23-031 | 31.75 | 38.1 | 7 | 6.35 | 3 | PU |
| KL23-031/1 | 31.75 | 41.28 | 8.7 | 7.94 | 4 | PU |
| KL23-035 | 35 | 45 | 7 | 6 | 5 | PU |
| KL23-035/1 | 35 | 50 | 10 | 9 | 5 | PU |
| KL23-038 | 38.1 | 47.63 | 8.7 | 7.94 | 4 | PU |
| KL23-038/1 | 38.1 | 47.63 | 10.5 | 9.53 | 4 | PU |
| KL23-038/2 | 38.1 | 50 | 10.5 | 9.53 | 4.5 | PU |
| KL23-040 | 40 | 50 | 7 | 6 | 5 | PU |
| KL23-040/1 | 40 | 50 | 10 | 9 | 5 | PU |
| KL23-044 | 44.45 | 53.98 | 10.5 | 9.53 | 4 | PU |
| KL23-044/1 | 44.45 | 63.5 | 18.2 | 16.48 | 5 | PU |
| KL23-045 | 45 | 53 | 9 | 8 | 5 | PU |
| KL23-045/1 | 45 | 55 | 7 | 6 | 5 | PU |
| KL23-045/2 | 45 | 65 | 11 | 10 | 5 | PU |
| KL23-045/3 | 45 | 60 | 12 | 11 | 5 | PU |
| KL23-045/4 | 45 | 60 | 11 | 10 | 5 | PU |
| KL23-045/5 | 45 | 55 | 11 | 10 | 5 | PU |
| KL23-047 | 47.62 | 63.5 | 12.5 | 11.5 | 5 | PU |
| KL23-047/1 | 47.62 | 57.15 | 10.5 | 9.5 | 5 | PU |
| KL23-050 | 50.8 | 60.33 | 10.5 | 9.53 | 4 | PU |
| KL23-050/1 | 50.8 | 63.5 | 10.5 | 9.53 | 4.5 | PU |
| KL23-050/2 | 50 | 58 | 9 | 8 | 5 | PU |
| KL23-050/3 | 50 | 60 | 7 | 6 | 5 | PU |
| KL23-050/4 | 50 | 63 | 10 | 9 | 5 | PU |
| KL23-053 | 53 | 63 | 8.3 | 7.3 | 5 | PU |
| KL23-055 | 55 | 65 | 7 | 6 | 5 | PU |
| KL23-057 | 57.15 | 69.85 | 7 | 6.35 | 4.5 | PU |
| KL23-060 | 60 | 68 | 9 | 8 | 5 | PU |
| KL23-060/1 | 60 | 70 | 7 | 6 | 5 | PU |
| KL23-060/2 | 60 | 75 | 10 | 9 | 5 | PU |
| KL23-060/3 | 60 | 70 | 10 | 9 | 5 | PU |
| KL23-063 | 63.5 | 76.2 | 10.5 | 9.53 | 4.5 | PU |
| KL23-069 | 69.85 | 82.55 | 10.5 | 9.52 | 5 | PU |
| KL23-076 | 76.2 | 88.9 | 10.5 | 9.53 | 4.5 | PU |
| KL23-076/2 | 76.2 | 92.08 | 13.7 | 12.7 | 5 | PU |
| KL23-088 | 88.9 | 101.6 | 10.5 | 9.53 | 4.5 | PU |
| KL23-090 | 90 | 103 | 11 | 10 | 5 | PU |
| KL23-092 | 92.08 | 101.6 | 10.5 | 9.53 | 4 | PU |
| KL23-105 | 105 | 120 | 10 | 9 | 7 | PU |
| KL23-106 | 106 | 120 | 9.5 | 8.5 | 7 | PU |
| KL23-107 | 107.95 | 127 | 17.5 | 15.88 | 7 | PU |
| KL23-109 | 109 | 125 | 11.5 | 10.5 | 7 | PU |
| KL23-139 | 139.7 | 165.1 | 20.5 | 19.5 | 7 | PU |
